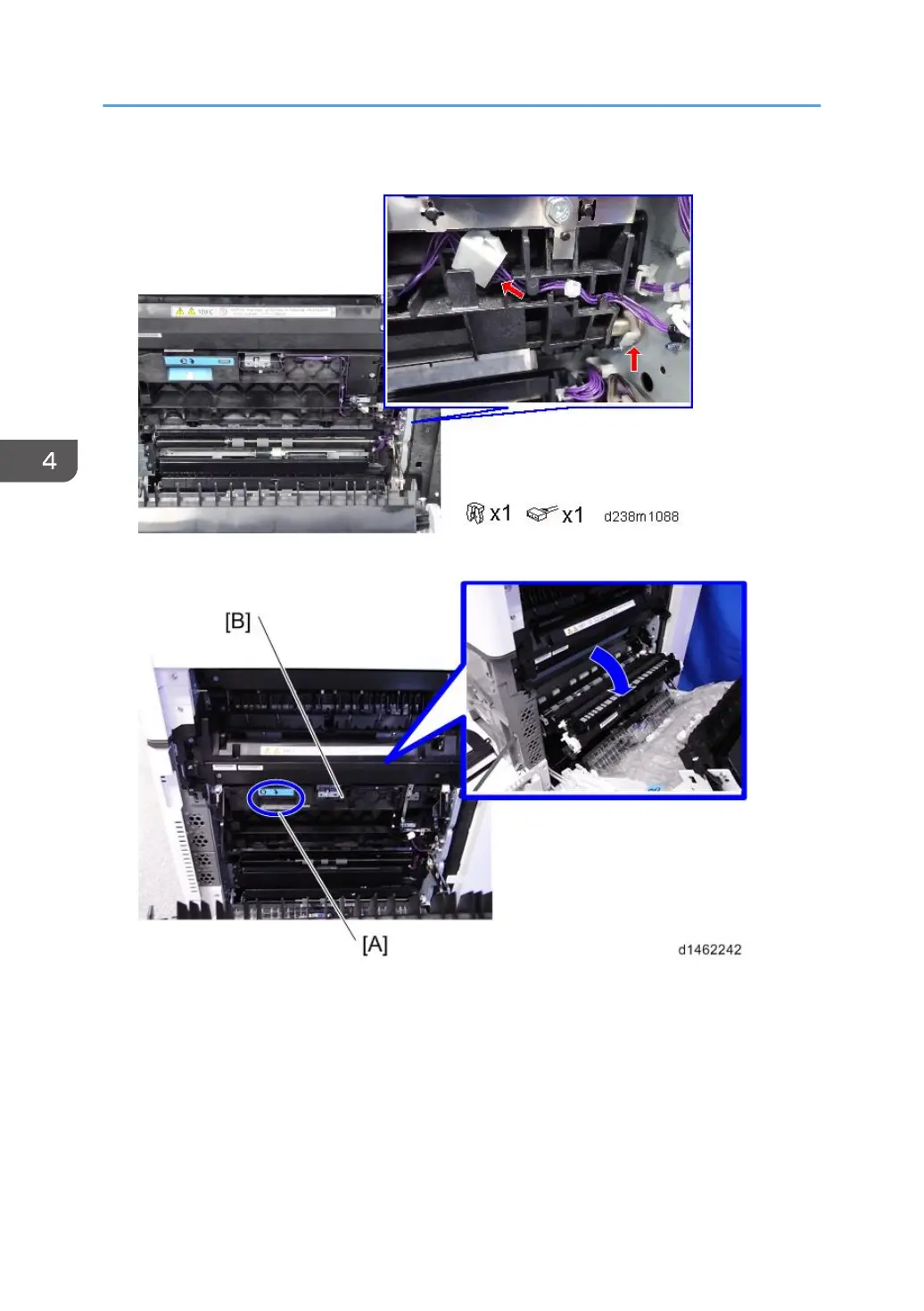

2. Remove the right clip ring and connector on the rear side.

3. Pull the handle [A] and open the paper transfer unit [B].

4. Replacement and Adjustment

496
