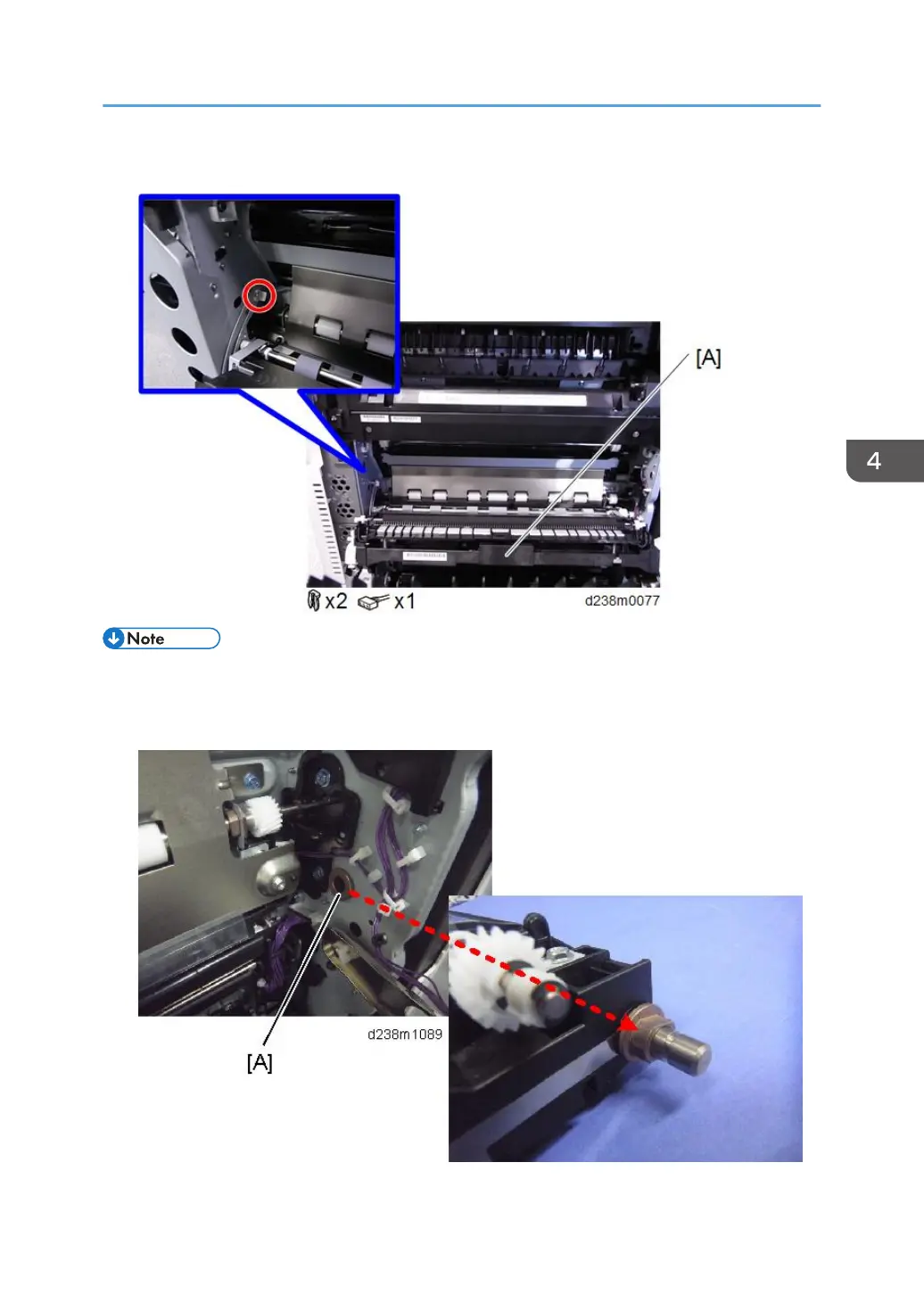

4. Remove the left clip ring at the front side, and remove the paper transfer roller unit [A].
• Note that the sizes of the clip ring differ on the left and right.
• When attaching a paper transfer roller unit, first attach the bushings [A] to the paper transfer roller
unit.
Image Transfer Unit
497
