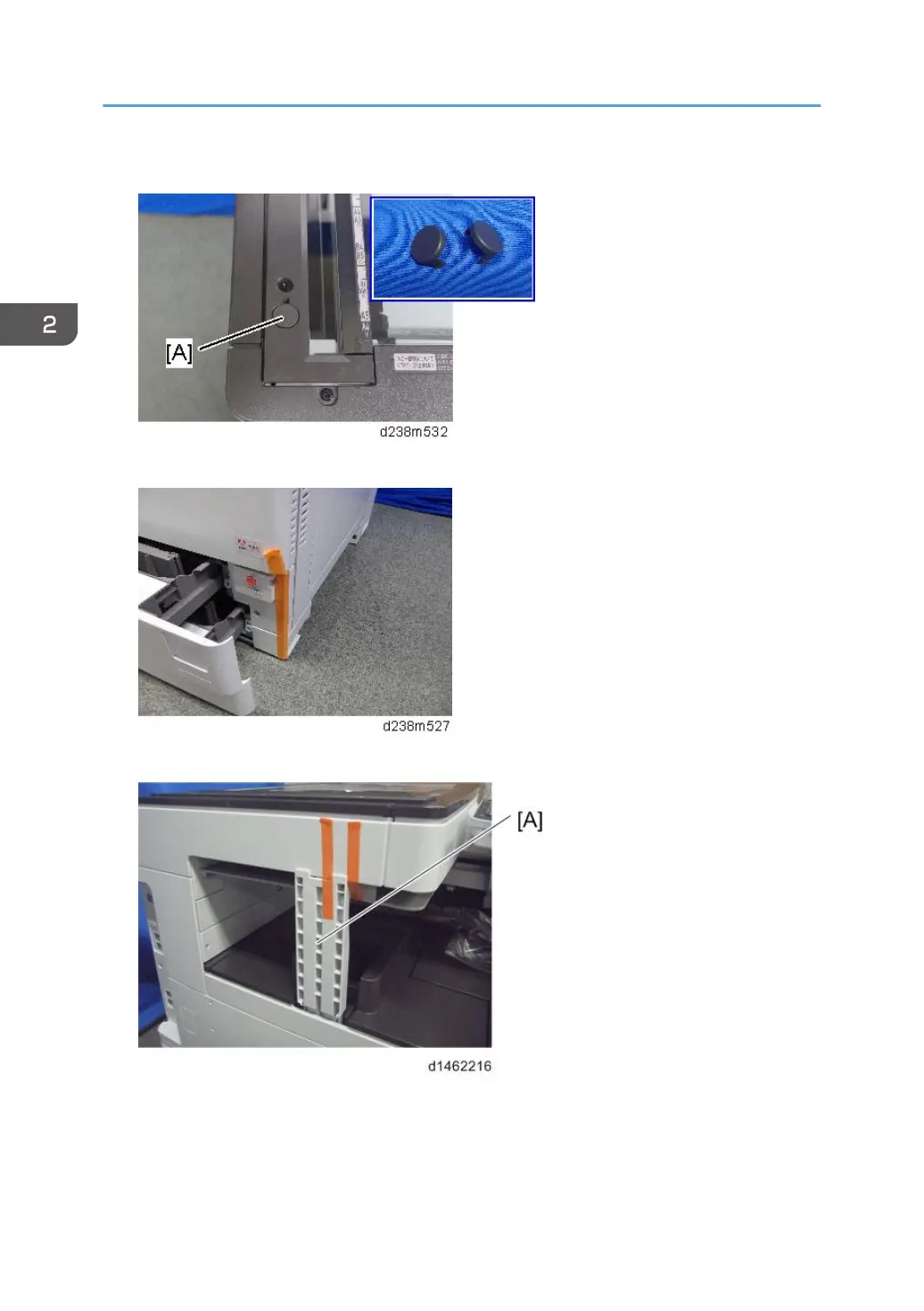

6. Attach the two caps [A] provided with the machine.

7. Pull out the 1st/2nd paper trays, remove the orange tape.

8. Remove the scanner support [A].
