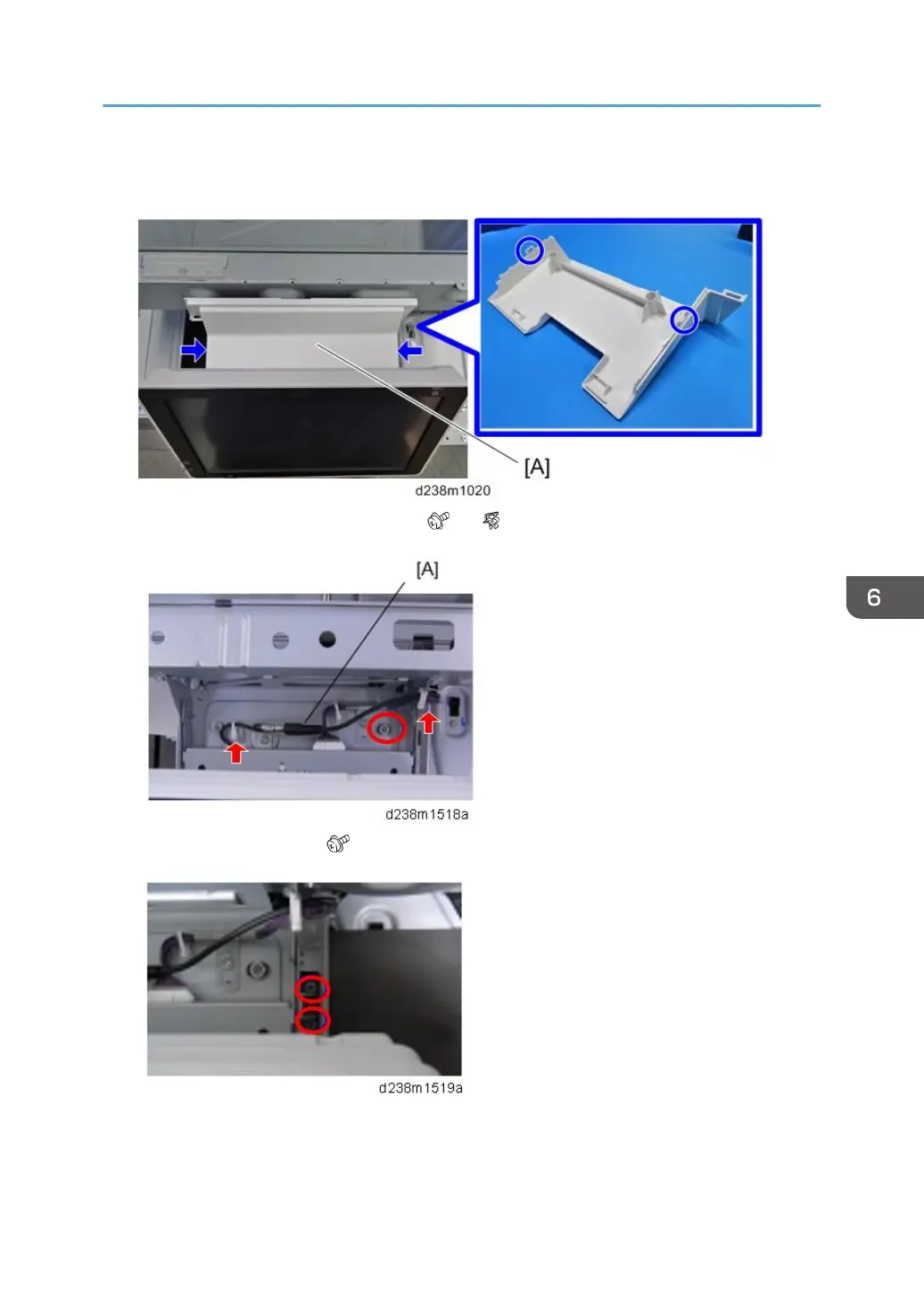

6. Holding down both the sides of the operation panel upper cover [A], unhook the tabs

(indicated by blue circles) and remove the cover.

7. Remove the USB cable connector [A] ( x1, x2).

8. Remove the two screws ( x2).

Troubleshooting for SC Errors

989
