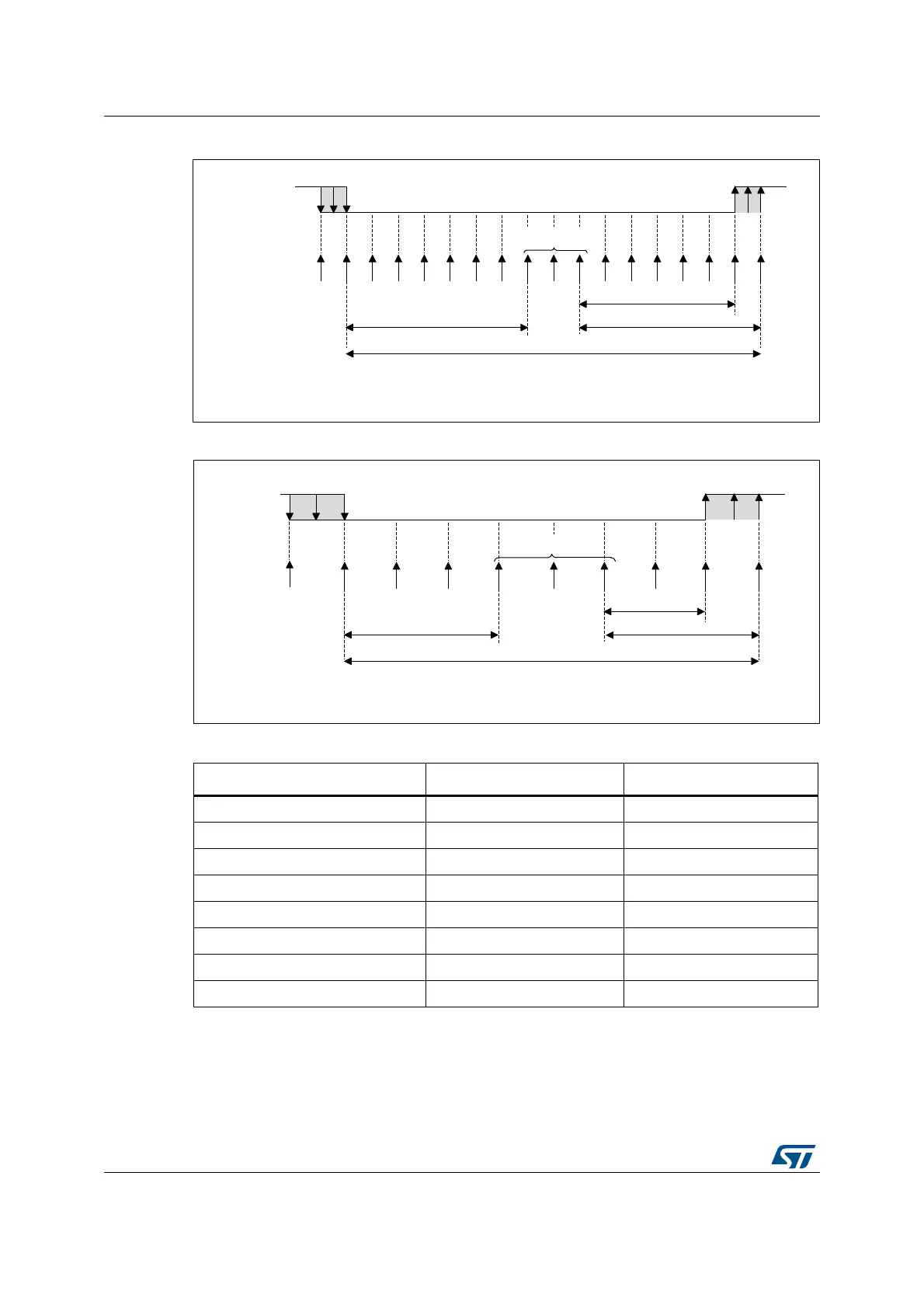

Figure 388. Data sampling when oversampling by 16
Figure 389. Data sampling when oversampling by 8
Table 192. Noise detection from sampled data
Sampled value NE status Received bit value
000 0 0
001 1 0
010 1 0
011 1 1
100 1 0
101 1 1
110 1 1
111 0 1
