Figure 20. Output configuration
7.3.11 Alternate function configuration
When the I/O port is programmed as alternate function:
• The output buffer can be configured in open-drain or push-pull mode
• The output buffer is driven by the signals coming from the peripheral (transmitter
enable and data)
• The Schmitt trigger input is activated
• The weak pull-up and pull-down resistors are activated or not depending on the value
in the GPIOx_PUPDR register
• The data present on the I/O pin are sampled into the input data register every AHB
clock cycle
• A read access to the input data register gets the I/O state
Note: The alternate function configuration described above is not applied when the selected
alternate function is a LCD function or a SWPMI_IO. In this case, the I/O, programmed as
an alternate function output, is configured as described in the analog configuration.

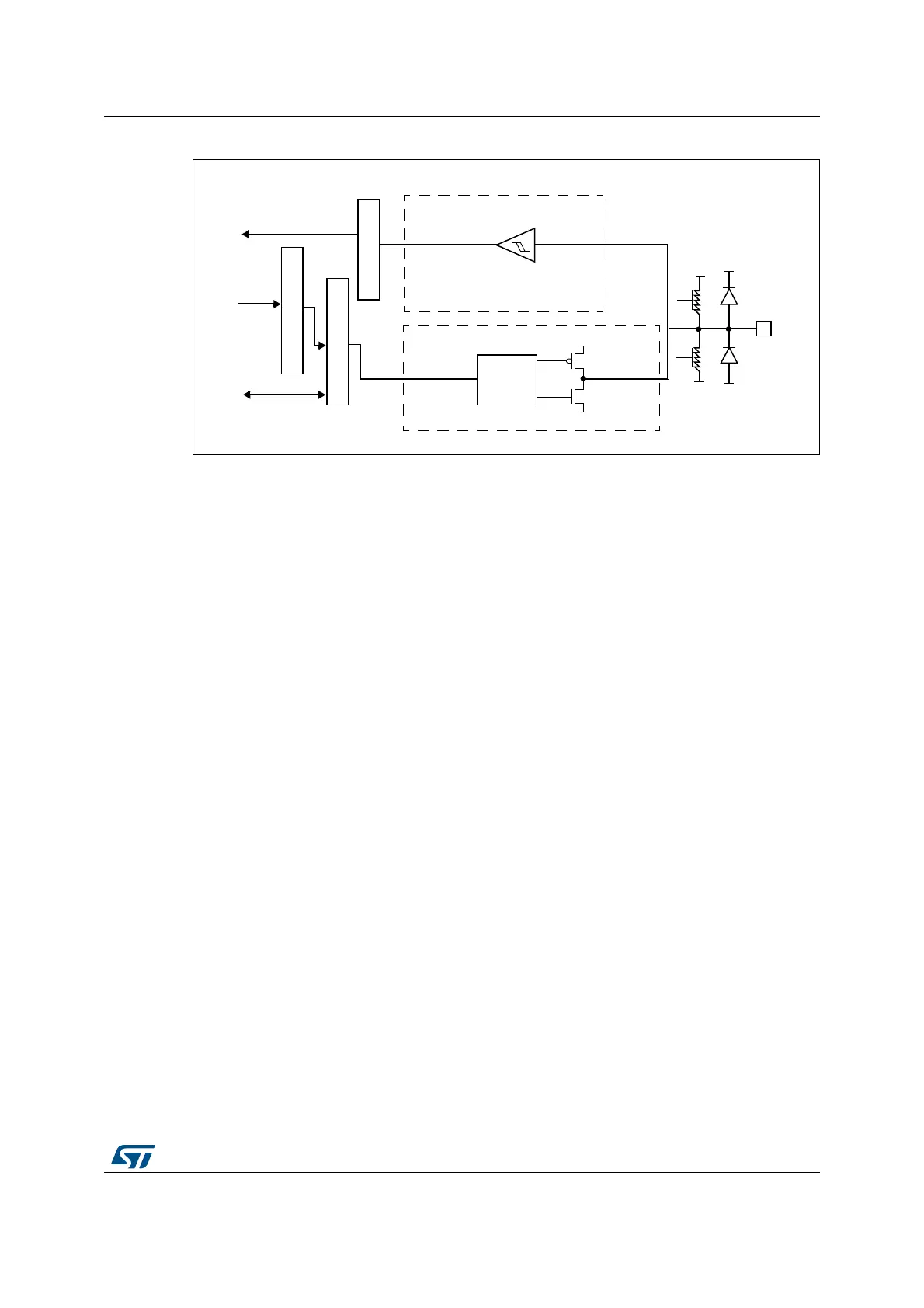

Figure 21 shows the Alternate function configuration of the I/O port bit.
3XVKSXOORU
2SHQGUDLQ
2XWSXW
FRQWURO
9
'',2[
9
66
77/6FKPLWW
WULJJHU
RQ
,QSXWGULYHU
2XWSXWGULYHU
3026
1026
,QSXWGDWDUHJLVWHU
2XWSXWGDWDUHJLVWHU
5HDGZULWH
5HDG
%LWVHWUHVHWUHJLVWHUV
:ULWH
RQRII
SXOO
SXOO
RQRII
9
'',2[
9
66
9
66
9
'',2[
SURWHFWLRQ
GLRGH
SURWHFWLRQ
GLRGH
GRZQ
XS
,2SLQ
069
