Serial peripheral interface (SPI) RM0351
1302/1685 DocID024597 Rev 3

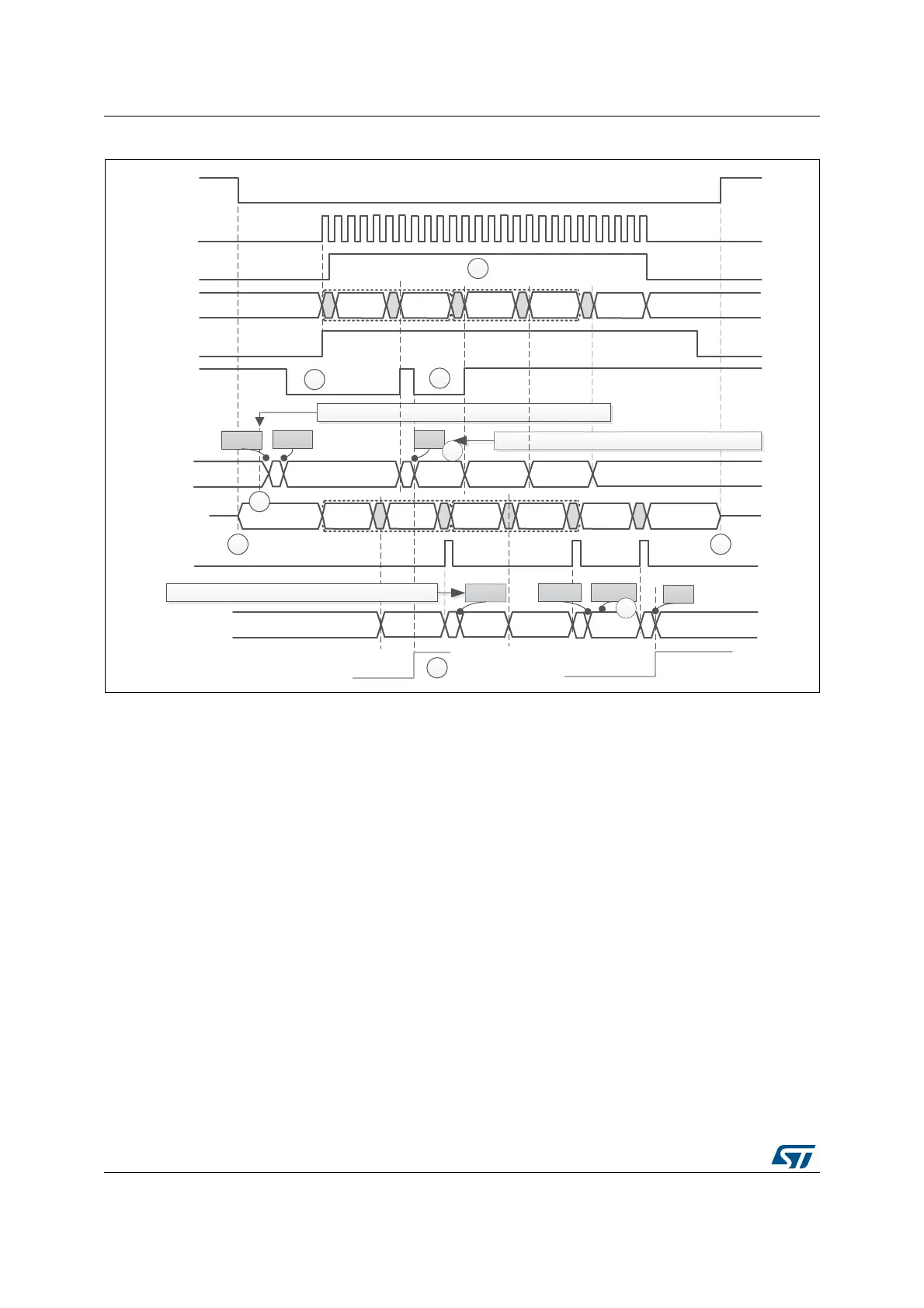

Figure 433. Master full duplex communication in packed mode
Assumptions for master full duplex communication in packed mode example:
• Data size = 5 bit
• Read/write FIFO is performed mostly by 16-bit access
• FRXTH=0
If DMA is used:
• Number of Tx frames to be transacted by DMA is set to 3
• Number of Rx frames to be transacted by DMA is set to 3
• PSIZE for both Tx and Rx DMA channel is set to 16-bit
• LDMA_TX=1 and LDMA_RX=1
See also : Communication diagrams on page 1298 for details about common assumptions
and notes.
166
6&.
%6<
026,
63(
7;(
)7/9/
'7[
'7[
5;1(
'5[
'5[
'5[
)5/9/
'0$7[7,&)
'0$5[7,&)
(QDEOH7[5['0$RULQWHUUXSWV
'0$RUVRIWZDUHFRQWURODW7[HYHQWV
'0$RUVRIWZDUHFRQWURODW5[HYHQWV
'7[
'7[ '7[ '7[
0,62
'5[
'5[ '5[
)57+;
06Y9
To Next Page
