NXP Semiconductors K22F series User Manual

Signal
multiplexing
Module signals
Register
access
FlexTimer
Peripheral bus
controller 0
Other peripherals
Transfers

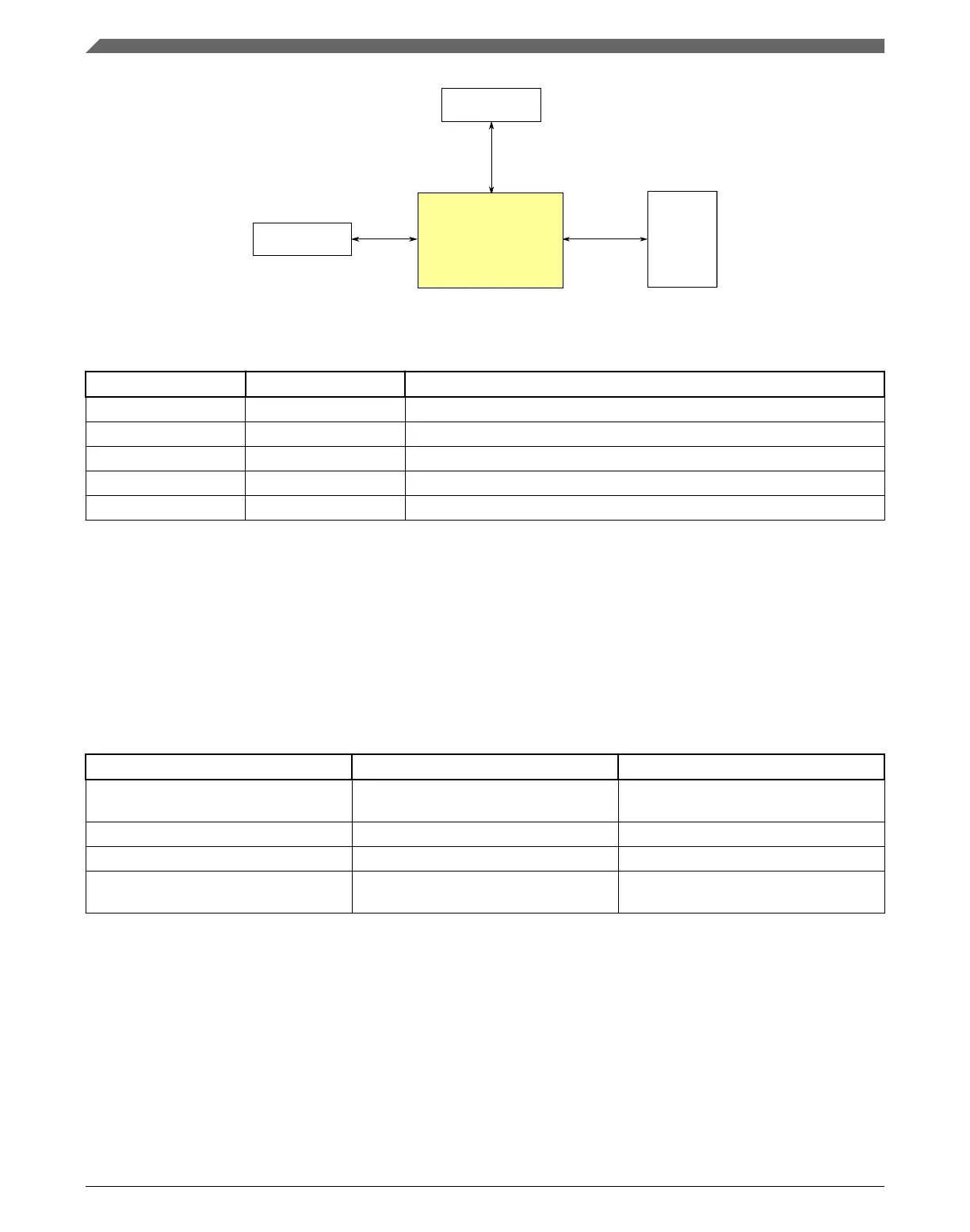

Figure 3-38. FlexTimer configuration
Table 3-54. Reference links to related information
Topic Related module Reference
Full description FlexTimer FlexTimer
System memory map System memory map
Clocking Clock distribution
Power management Power management
Signal multiplexing Port control Signal multiplexing
3.8.2.1 Instantiation Information
This device contains four FlexTimer modules.
The following table shows how these modules are configured.
Table 3-55. FTM Instantiations
FTM instance Number of channels Features/usage
FTM0 8 3-phase motor + 2 general purpose or
stepper motor
FTM1 2 Quadrature decoder or general purpose
FTM2 2
1
Quadrature decoder or general purpose
FTM3 8 3-phase motor + 2 general purpose or
stepper motor
1. Only channels 0 and 1 are available.
Timers
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
112 NXP Semiconductors
