FTM counter
channel (n) output
(before fault control)
FAULTIN bit
channel (n) output
the beginning of new PWM cycles
FAULTF bit
FAULTF bit is cleared
The channel (n) output is after the fault control with automatic fault clearing and POLn = 0.
NOTE

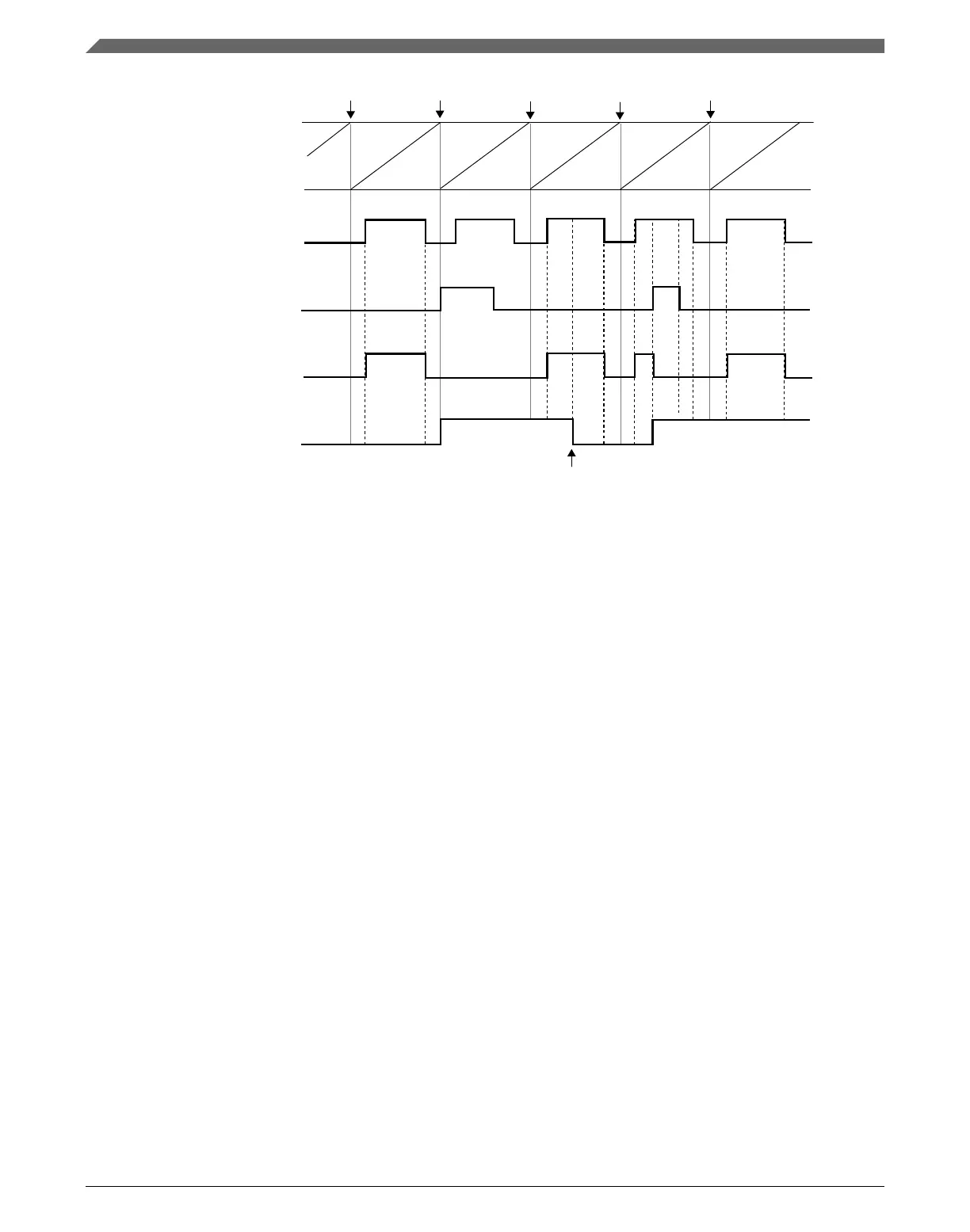

Figure 39-73. Fault control with automatic fault clearing
39.4.16.2
Manual fault clearing
If the manual fault clearing is selected (FAULTM[1:0] = 0:1 or 1:0), then the channels
output disabled by fault control is again enabled when the FAULTF bit is cleared and a
new PWM cycle begins. See the following figure.
Functional description
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
998 NXP Semiconductors
