User manual Rev. 3 — 19 December 2013 318 of 841

NXP Semiconductors

UM10360

Chapter 14: LPC176x/5x UART0/2/3

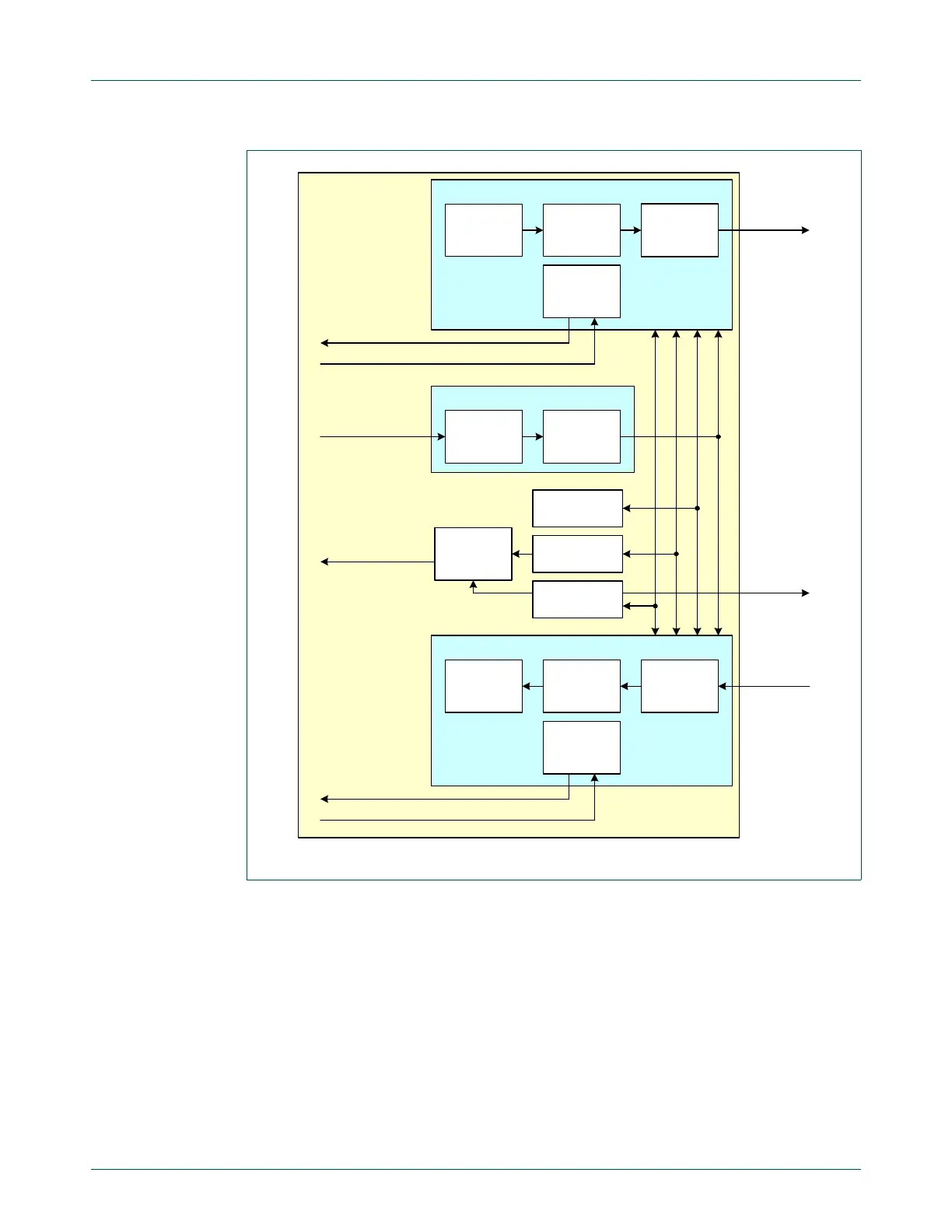

Fig 47. UART0, 2 and 3 block diagram

Transmitter

Shift

Transmitter

Holding

Transmitter

FIFO

Transmitter

Receiver

Shift

Receiver

Buffer

Receiver

FIFO

Receiver

TX_DMA_REQ

TX_DMA_CLR

RX_DMA_REQ

RX_DMA_CLR

Baud Rate Generator

Fractional

Rate

Divider

Main

Divider

(DLM, DLL)

Transmitter

DMA

Interface

Receiver

DMA

Interface

PCLK

Line Control

& Status

FIFO Control

& Status

Un_TXD

Un_RXD

Un_OE

IrDA, & Auto-

baud

UARTn interrupt

Interrupt

Control &

Status
