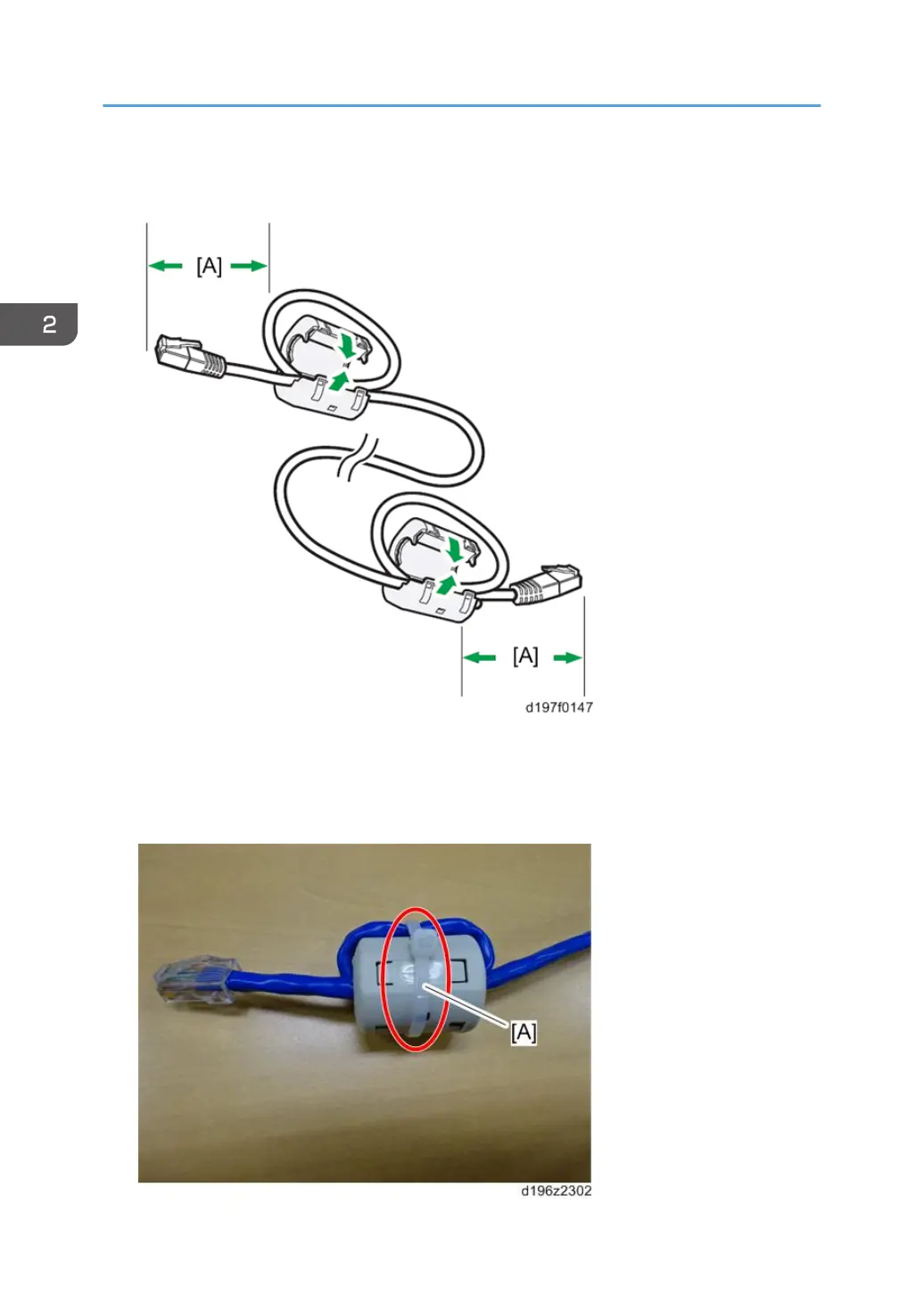

9. Attach the ferrite cores to the Ethernet cable, while looping the cable at 3 cm (approx. 1.2
inch) [A] from the each end of the cable.
10. Only for installing this option in North America, bind both cores with cable ties [A] as
shown below.
The two binds are not included in options produced before March, 2015. To bind the cores, use
the binds registered as service parts or similar ones.
