11.4 DMAMUX functional description
11.4.1 DMAMUX block diagram

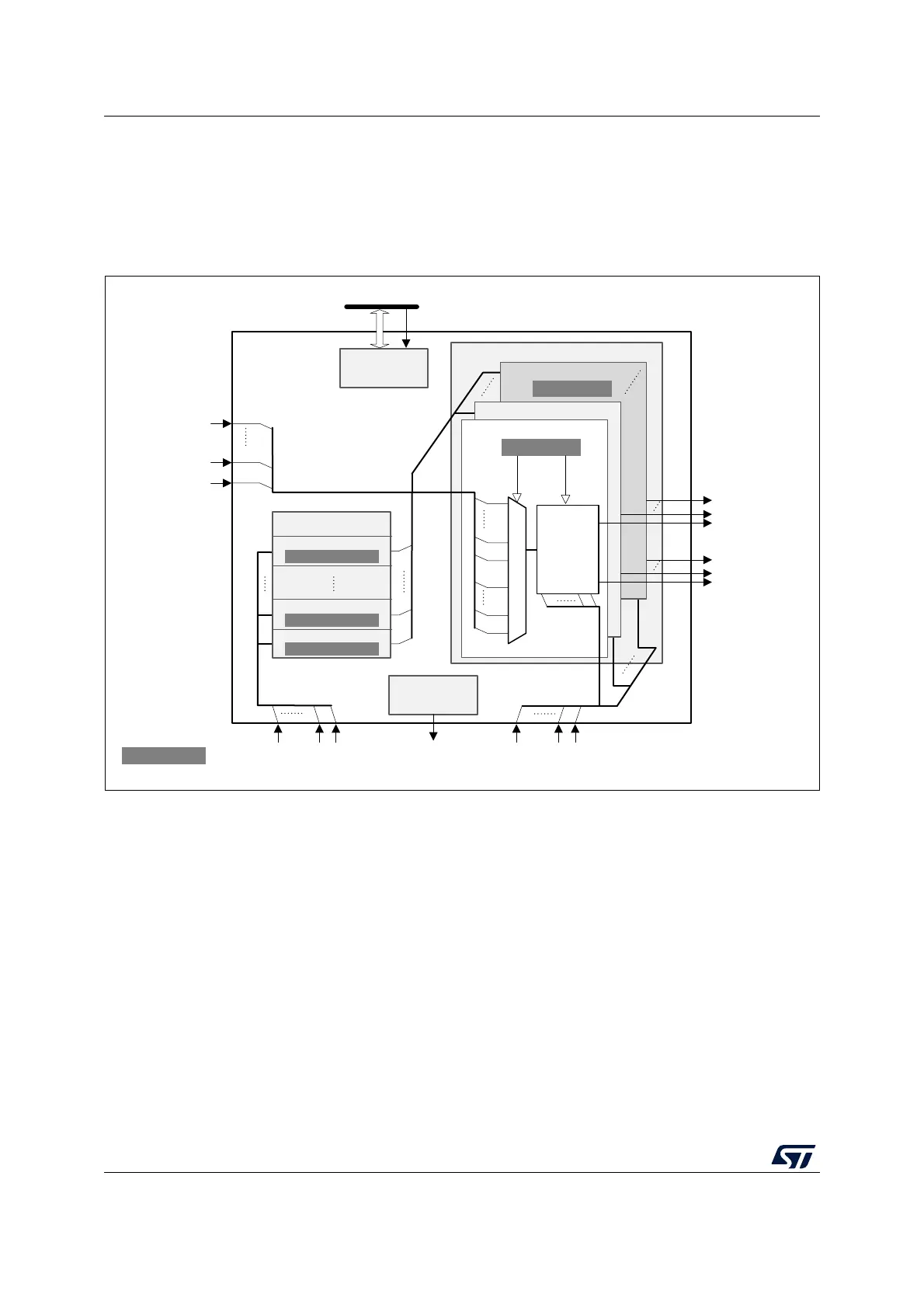

Figure 23 shows the DMAMUX block diagram.
Figure 23. DMAMUX block diagram
DMAMUX features two main sub-blocks: the request line multiplexer and the request line
generator.
The implementation assigns:
• DMAMUX request multiplexer sub-block inputs (dmamux_reqx) from peripherals
(dmamux_req_inx) and from channels of the DMAMUX request generator sub-block
(dmamux_req_genx)
• DMAMUX request outputs to channels of DMA controllers (dmamux_req_outx)
• Internal or external signals to DMA request trigger inputs (dmamux_trgx)
• Internal or external signals to synchronization inputs (dmamux_syncx)
