ST STM32G0 1 Series - Figure 301. Transfer Sequence Flowchart for I2 C Master Transmitter for N≤255 Bytes

To Next Page

To Previous Page

Inter-integrated circuit (I2C) interface RM0444

954/1390 RM0444 Rev 5

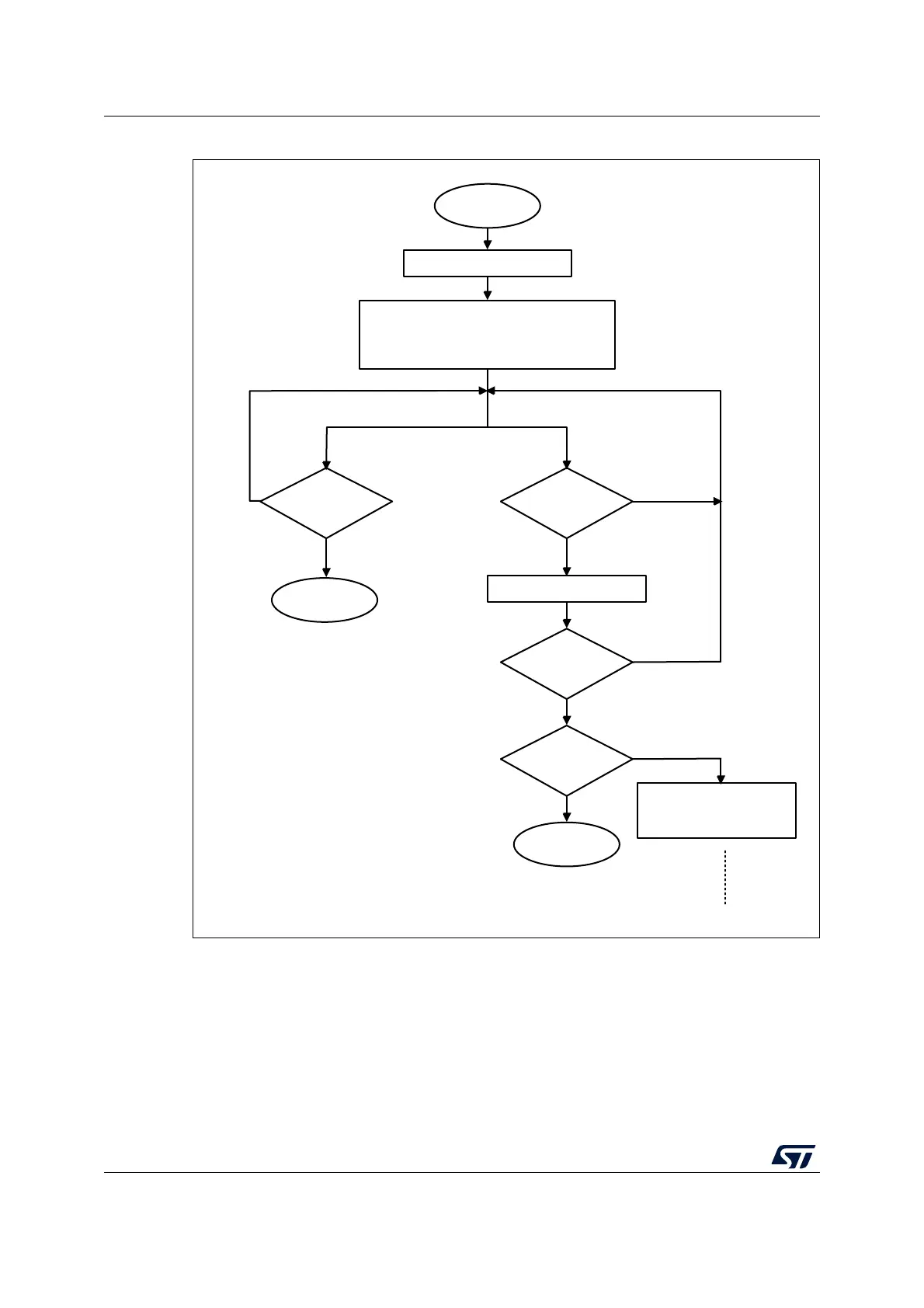

Figure 301. Transfer sequence flowchart for I2C master transmitter for N≤255 bytes

MS19860V2

Master initialization

Master

transmission

Write I2C_TXDR

I2C_ISR.TXIS

=1?

Yes

I2C_ISR.NACKF =

Yes

NBYTES = N

AUTOEND = 0 for RESTART; 1 for STOP

Configure slave address

Set I2C_CR2.START

End

NBYTES

transmitted?

I2C_ISR.TC =

Yes

End

Yes

Set I2C_CR2.START with

slave addess NBYTES ...
