True random number generator (RNG) RM0444
460/1390 RM0444 Rev 5
19.3 RNG functional description
19.3.1 RNG block diagram

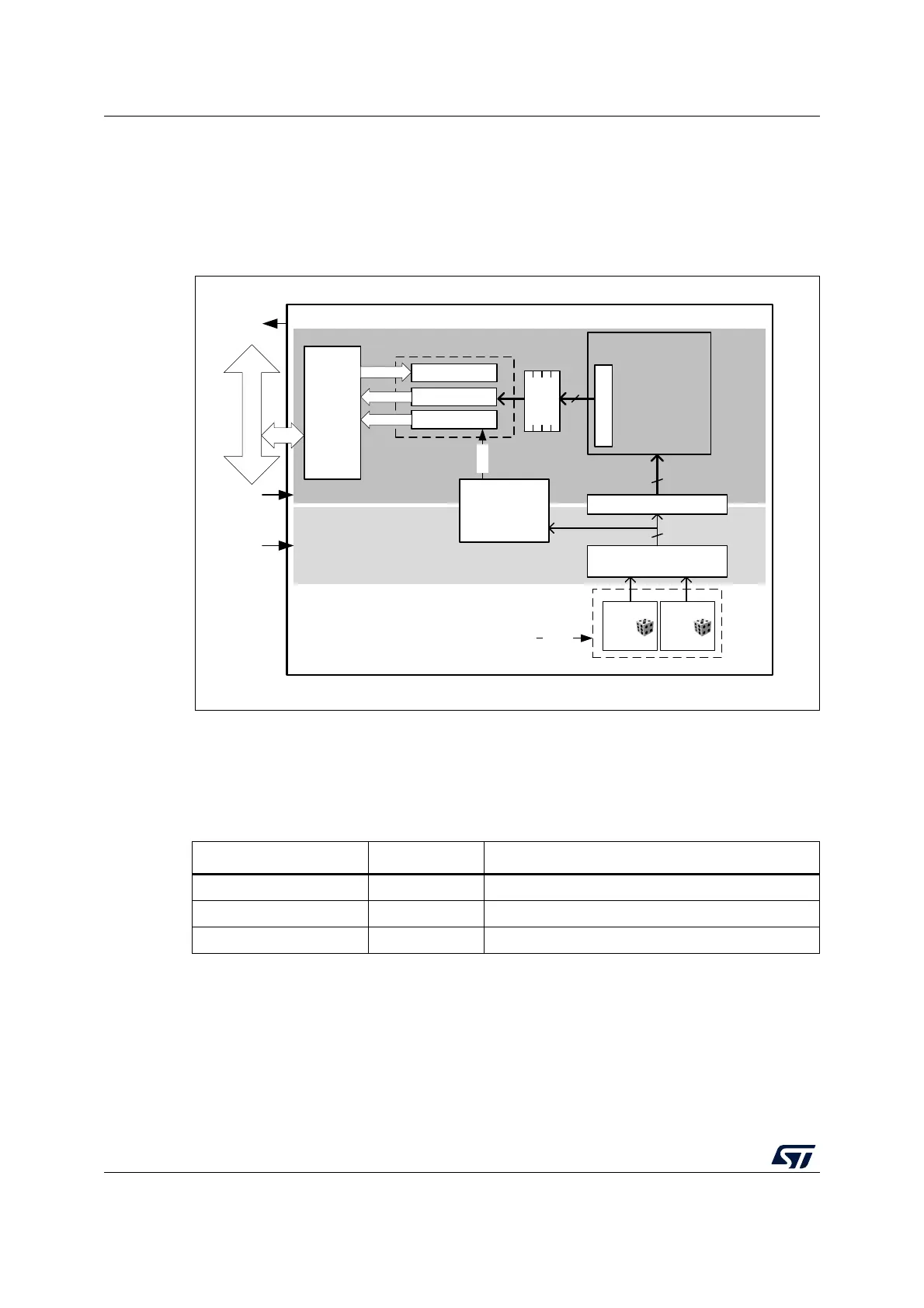

Figure 72 shows the RNG block diagram.
Figure 72. RNG block diagram
19.3.2 RNG internal signals
Table 99 describes a list of useful-to-know internal signals available at the RNG level, not at
the STM32 product level (on pads).
MSv42097V2
True RNG
RNG_CR
RNG_SR
AHB
interface
control
status
RNG_DR
data
Analog
noise
source 1
Banked Registers
Sampling &
Normalization (x 2)
Analog noise source
Fault detection
Clock checker
2-bit
Alarms
Analog
noise
source 2
4x32-bit
FIFO
Conditioning logic
32-bit
128-bit data output
en_osc
32-bit AHB Bus
rng_it
rng_clk
AHB clock domain
RNG clock domain
Raw data shift reg
128-bit
Table 99. RNG internal input/output signals
Signal name Signal type Description
rng_it Digital output RNG global interrupt request
rng_hclk Digital input AHB clock
rng_clk Digital input RNG dedicated clock, asynchronous to rng_hclk
