RM0444 Tamper and backup registers (TAMP)

926

31.3 TAMP functional description

31.3.1 TAMP block diagram

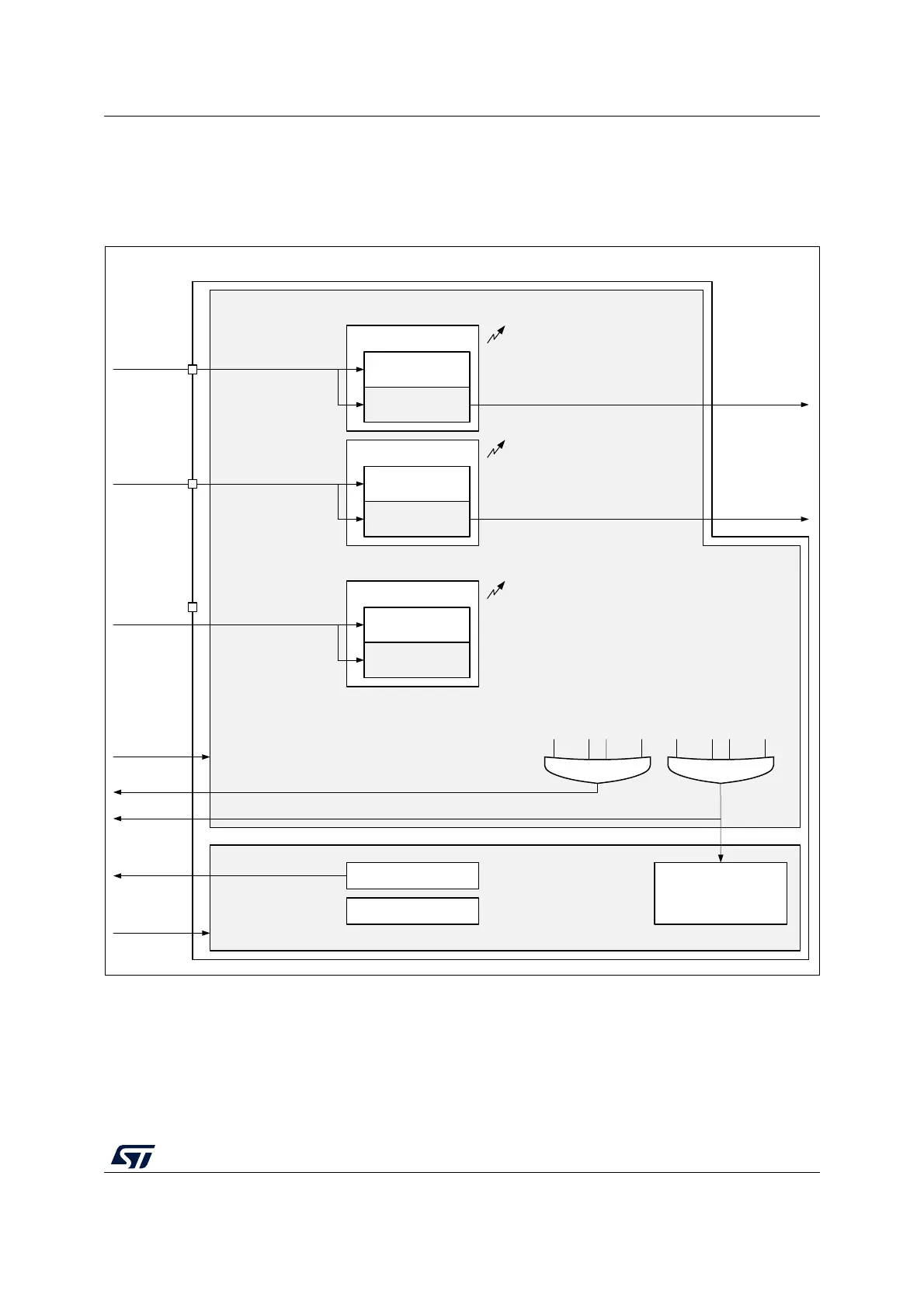

Figure 282. TAMP block diagram

1. The number of external and internal tampers depends on products.

MSv43847V4

TAMP_IN1

tamp_pclk clock domain

Registers interface

tamp_pclk

IRQ interface

TAMP1F

Tamper detection

EDGE detection

LEVEL detection

TAMP2F

Tamper detection

EDGE detection

LEVEL detection

...

TAMPxF

(1)

Tamper detection

EDGE detection

LEVEL detection

...

Backup registers

tamp_it

tamp_evt

tamp_ker_ck

tamp_ker_ck clock domain

TAMP_IN2

TAMP_INx

tamp_trg1

tamp_trg2

tamp_erase

...

TAMP1F

TAMPxF

...

ITAMP1F

ITAMPyF

...

TAMP1F when TAMP1NOER=0

TAMPxF when TAMPxNOER=0

...

ITAMP1F

ITAMPyF
