RM0444 General-purpose timers (TIM15/TIM16/TIM17)

830

25.4.18 Timer input XOR function (TIM15 only)

The TI1S bit in the TIMx_CR2 register, allows the input filter of channel 1 to be connected to

the output of a XOR gate, combining the two input pins TIMx_CH1 and TIMx_CH2.

The XOR output can be used with all the timer input functions such as trigger or input

capture. It is useful for measuring the interval between the edges on two input signals, as

shown in Figure 266.

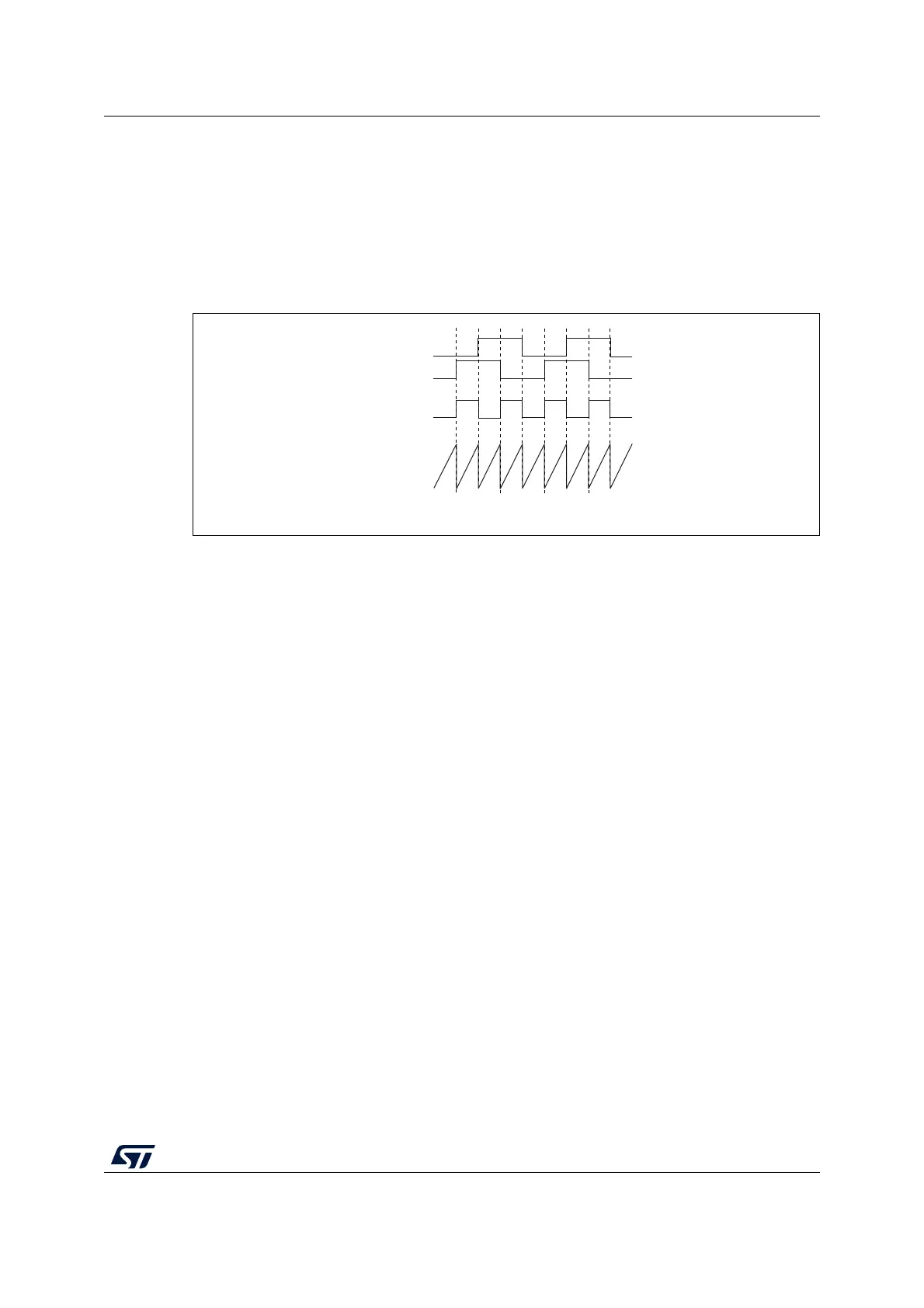

Figure 266. Measuring time interval between edges on 2 signals

MS31400V1

TI1

TI2

TI1 XOR TI2

Counter
