ST STM32G0 1 Series - Figure 145. Various Output Behavior in Response to a Break Event on BRK (OSSI = 1)

To Next Page

To Previous Page

Advanced-control timer (TIM1) RM0444

564/1390 RM0444 Rev 5

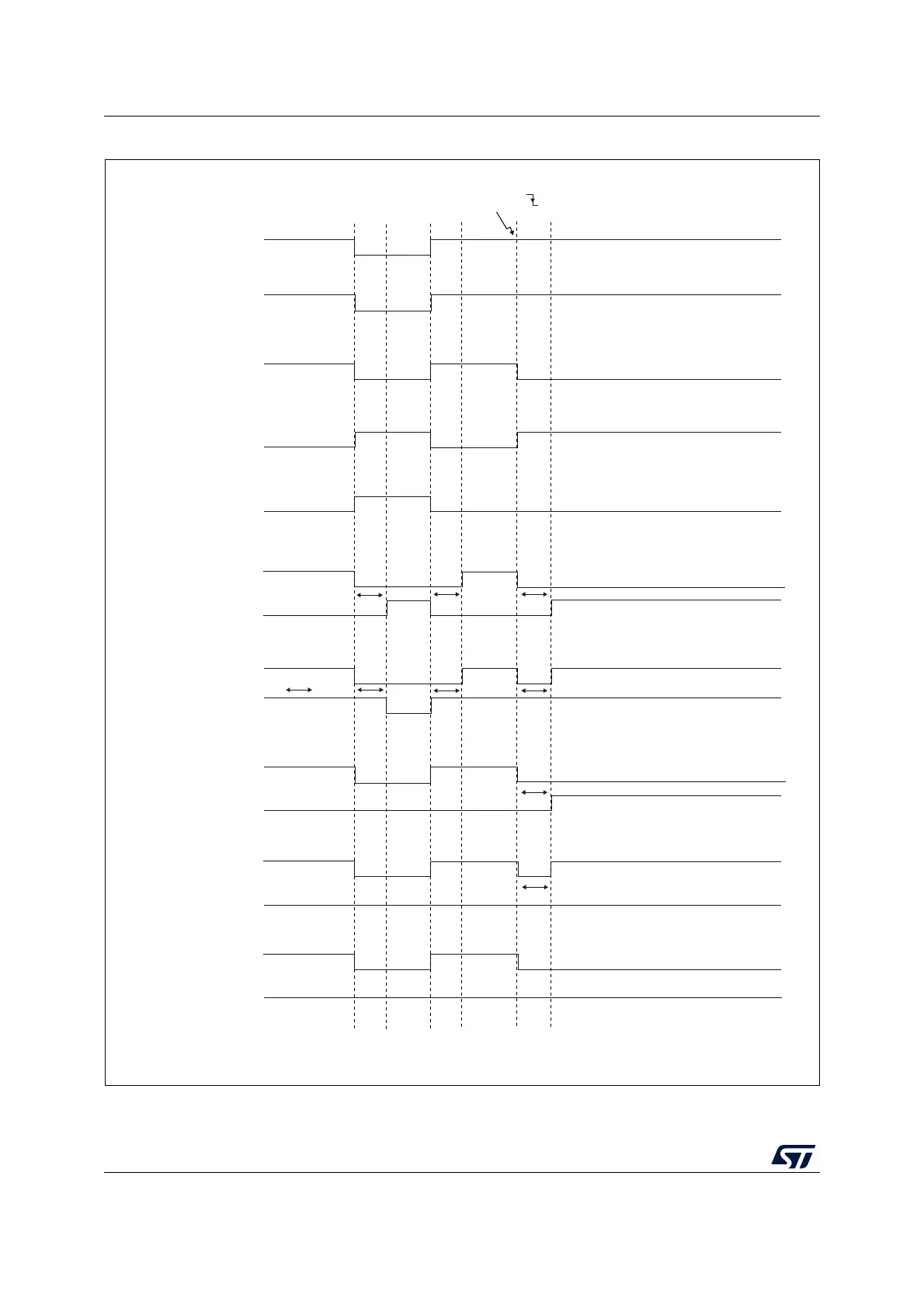

Figure 145. Various output behavior in response to a break event on BRK (OSSI = 1)

delay delay delay

delay

OCxREF

OCx

(OCxN not implemented, CCxP=0, OISx=1)

OCx

(OCxN not implemented, CCxP=0, OISx=0)

OCx

(OCxN not implemented, CCxP=1, OISx=1)

OCx

(OCxN not implemented, CCxP=1, OISx=0)

OCx

OCxN

(CCxE=1, CCxP=0, OISx=0, CCxNE=1, CCxNP=0, OISxN=1)

OCx

OCxN

(CCxE=1, CCxP=0, OISx=1, CCxNE=1, CCxNP=1, OISxN=1)

OCx

OCxN

(CCxE=1, CCxP=0, OISx=0, CCxNE=0, CCxNP=0, OISxN=1)

OCx

OCxN

(CCxE=1, CCxP=0, OISx=1, CCxNE=0, CCxNP=0, OISxN=0)

OCx

OCxN

(CCxE=1, CCxP=0, CCxNE=0, CCxNP=0, OISx=OISxN=0 or OISx=OISxN=1)

MS31098V1

BREAK (MOE )
