ST STM32G0 1 Series - Figure 116. Counter Timing Diagram, Internal Clock Divided by 2; Figure 117. Counter Timing Diagram, Internal Clock Divided by 4, Timx

To Next Page

To Previous Page

RM0444 Rev 5 537/1390

RM0444 Advanced-control timer (TIM1)

624

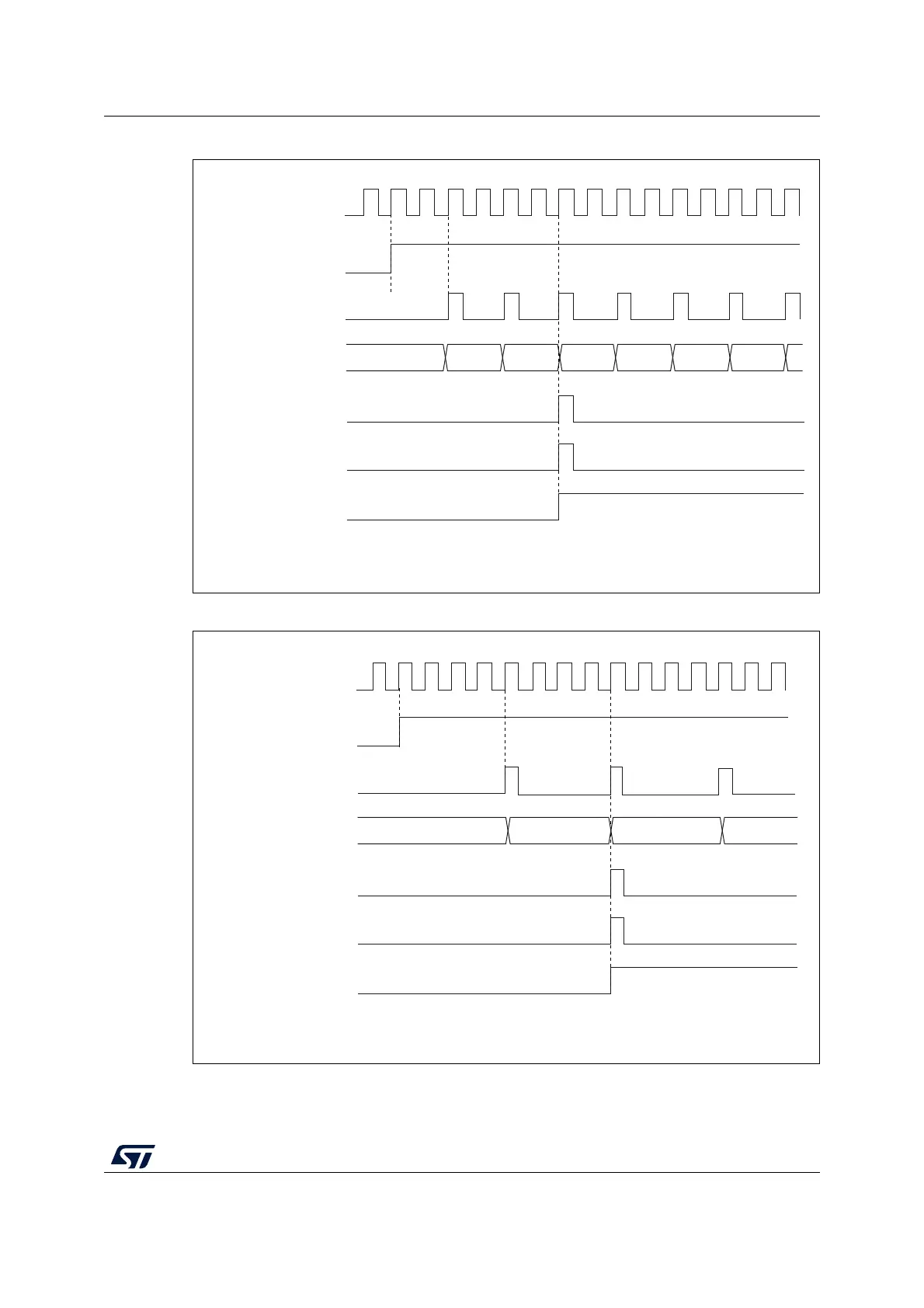

Figure 116. Counter timing diagram, internal clock divided by 2

Figure 117. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

MS31190V1

CK_PSC

CNT_EN

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter underflow

Update interrupt flag

(UIF)

0003

0002

0001

0000

0001

0002

0003

0034 0035

MS31191V1

CK_PSC

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter overflow

Update interrupt flag

(UIF)

CNT_EN

Note: Here, center_aligned mode 2 or 3 is updated with an UIF on overflow

0036 0035
