Serial peripheral interface / integrated interchip sound (SPI/I2S) RM0444

1174/1390 RM0444 Rev 5

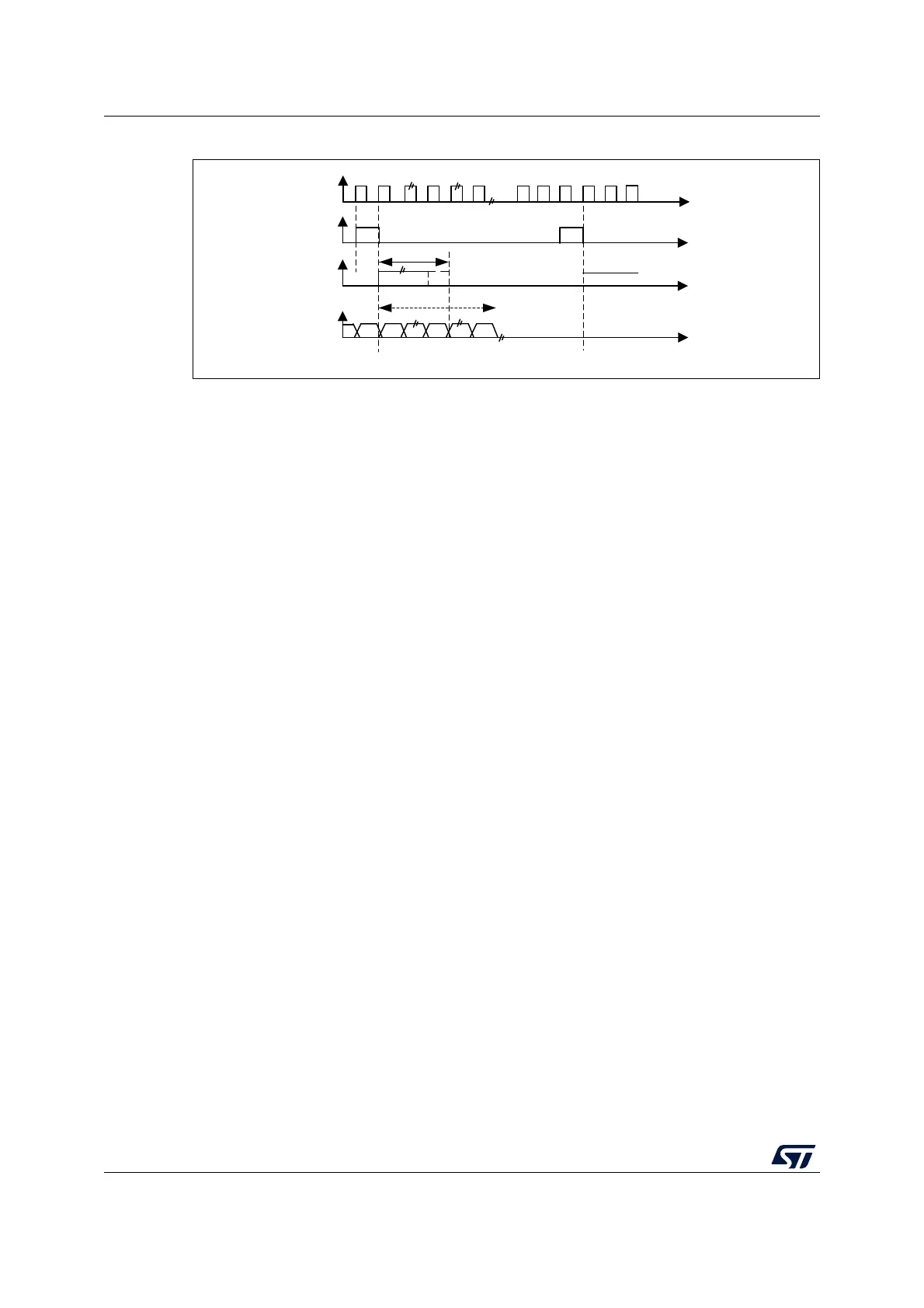

Figure 388. PCM standard waveforms (16-bit extended to 32-bit packet frame)

Note: For both modes (master and slave) and for both synchronizations (short and long), the

number of bits between two consecutive pieces of data (and so two synchronization signals)

needs to be specified (DATLEN and CHLEN bits in the SPIx_I2SCFGR register) even in

slave mode.

35.7.3 Start-up description

TheFigure 389 shows how the serial interface is handled in MASTER mode, when the

SPI/I2S is enabled (via I2SE bit). It shows as well the effect of CKPOL on the generated

signals.

MS30107V1

short frame

long frame

Up to 13-bits

MSB

LSB

16 bits
