Inter-integrated circuit (I2C) interface RM0444

956/1390 RM0444 Rev 5

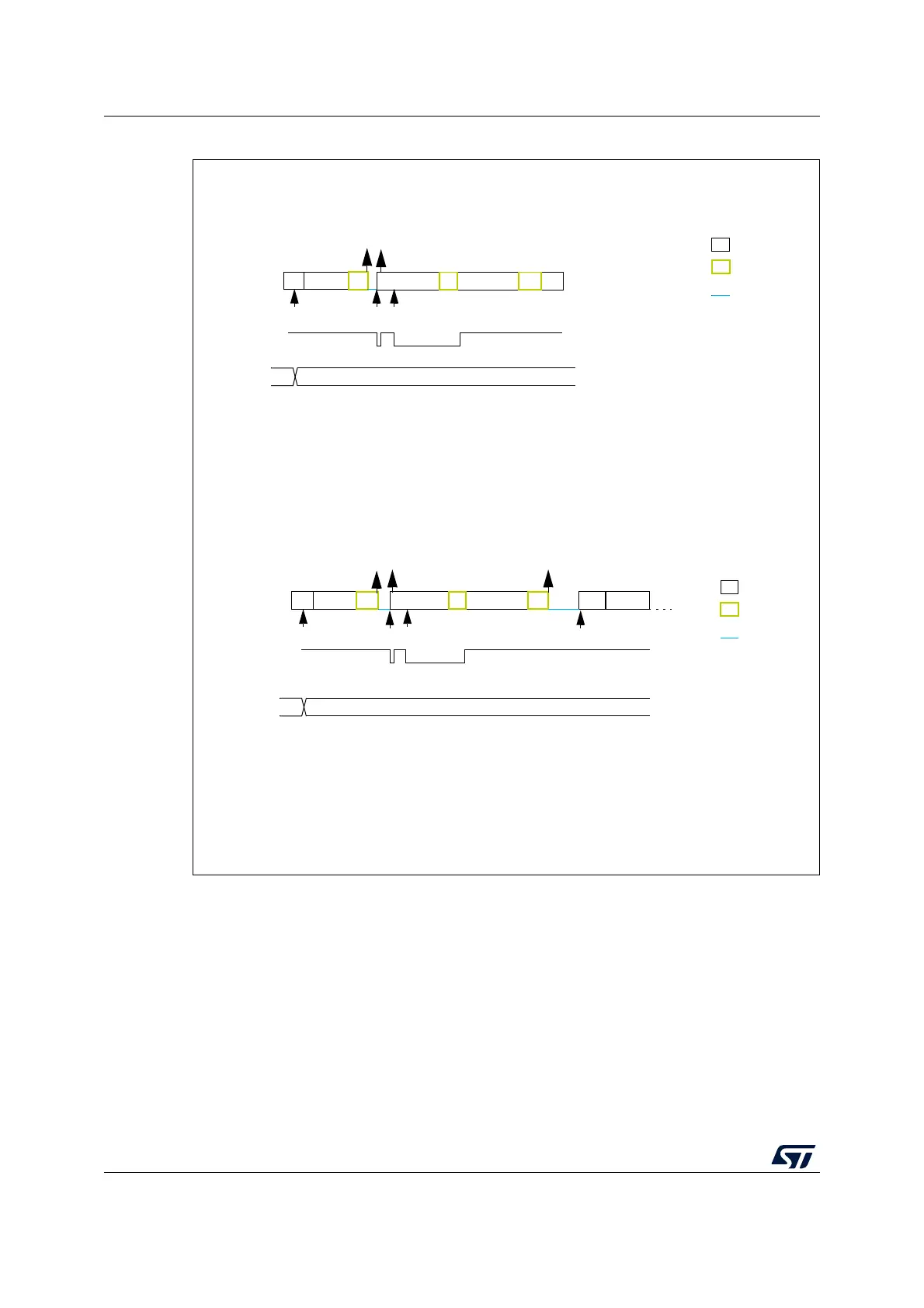

Figure 303. Transfer bus diagrams for I2C master transmitter

MS19862V2

Example I2C master transmitter 2 bytes, automatic end mode (STOP)

INIT: program Slave address, program NBYTES = 2, AUTOEND=1, set START

EV1: TXIS ISR: wr data1

EV2: TXIS ISR: wr data2

TXISTXIS

legend:

transmission

reception

SCL stretch

EV1 EV2

INIT

Example I2C master transmitter 2 bytes, software end mode (RESTART)

INIT: program Slave address, program NBYTES = 2, AUTOEND=0, set START

EV1: TXIS ISR: wr data1

EV2: TXIS ISR: wr data2

EV3: TC ISR: program Slave address, program NBYTES = N, set START

TXIS TXIS

legend:

transmission

reception

SCL stretch

EV1 EV2

INIT

TXE

EV3

NBYTES

S Address A data1 A data2 ReS AddressA

S Address

A data1

data2
