RM0444 AES hardware accelerator (AES)
522
CCM processing
Figure 97 describes the CCM implementation within the AES peripheral (encryption
example). This mode is selected by writing 100 into the CHMOD[2:0] bitfield of the AES_CR
register.

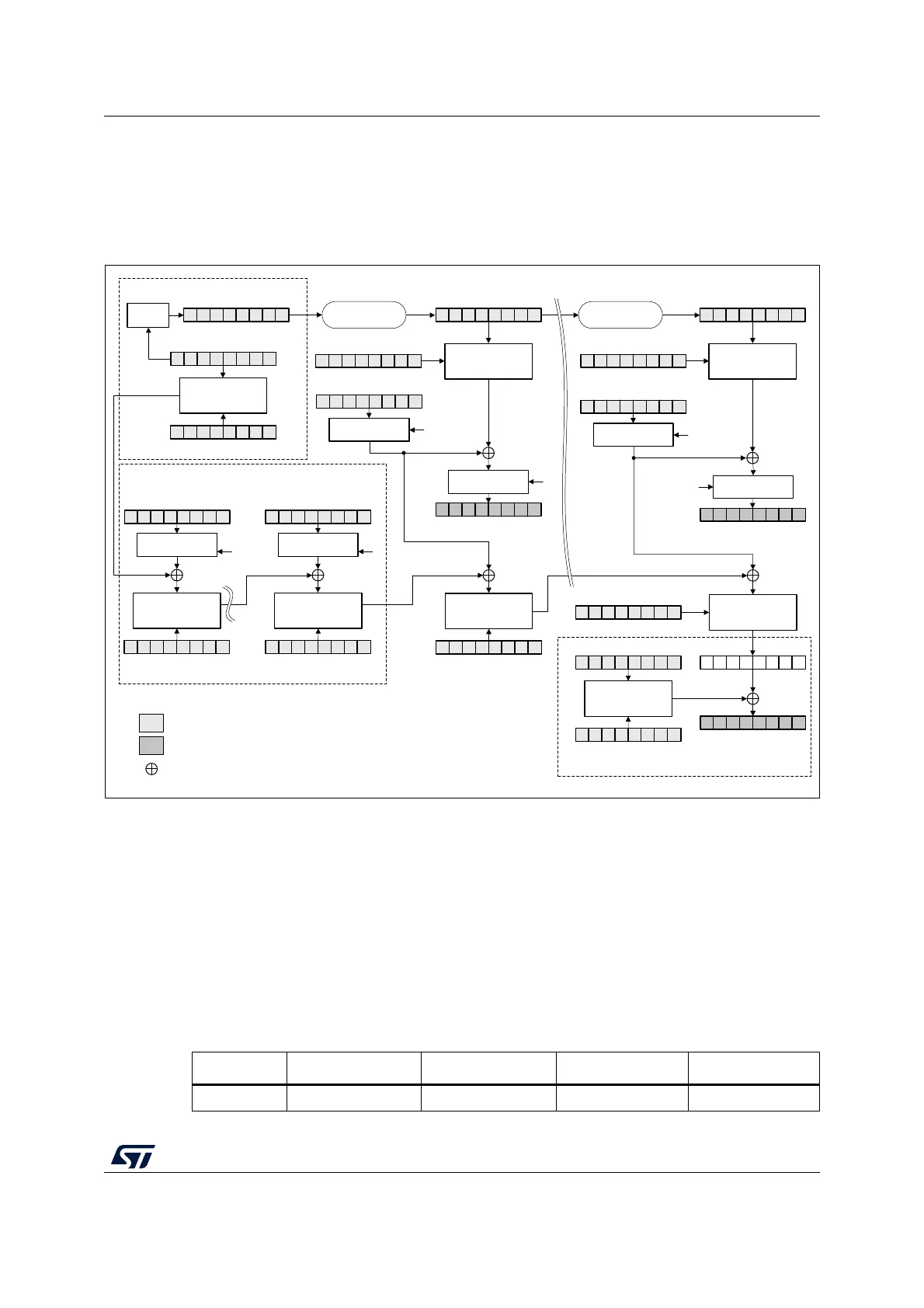

Figure 97. CCM mode authenticated encryption
The data input to the generation-encryption process are a valid nonce, a valid payload
string, and a valid associated data string, all properly formatted. The CBC chaining
mechanism is applied to the formatted plaintext data to generate a MAC, with a known
length. Counter mode encryption that requires a sufficiently long sequence of counter blocks
as input, is applied to the payload string and separately to the MAC. The resulting ciphertext
C is the output of the generation-encryption process on plaintext P.
AES_IVRx registers are used for processing each data block, AES automatically
incrementing the CTR counter with a bit length defined by the first block B0. Table 106
shows how the application must load the B0 data.
Note: The AES peripheral in CCM mode supports counters up to 64 bits, as specified by NIST.
MSv42152V2
(2) Header
(1) Init
(4) Final
AES_DINR (plaintext P1)
AES_DOUTR (ciphertext C1)
DATATYPE
[1:0]
Swap
management
AES_IVRx (CTR1)
input
output
Legend
XOR
Swap
management
DATATYPE
[1:0]
AES_KEYRx (KEY)
AES_IVRx (CTRm)
Swap
management
DATATYPE
[1:0]
Counter
increment (+1)
AES_DINR (plaintext
last block Pm )
AES_DOUTR
(ciphertext last block Cm)
Encrypt
AES_IVRx (CTR0)
AES_DINR (associated
data block B1)
Swap
management
Swap
management
AES_DINR (associated
data last block Bu)
AES_KEYRx (KEY)
AES_DINR (CTR0)
Encrypt
AES_KEYRx (KEY)
AES_DOUTR
(EncTAG)
MAC (T)
Encrypt Encrypt
S0
B
r
B
u+1
Encrypt
AES_KEYRx (KEY)
Encrypt
AES_KEYRx (KEY)
Encrypt
AES_KEYRx (KEY)
Encrypt
AES_KEYRx (KEY)
AES_KEYRx (KEY)
DATATYPE
[1:0]
Swap
management
DATATYPE[1:0]
DATATYPE[1:0]
Sm
S1
Counter
increment (+1)
AES_IVRx (First block B0)
mask
Block 1 Block m
(3) Payload
Table 106. Initialization of AES_IVRx registers in CCM mode
Register AES_IVR3[31:0] AES_IVR2[31:0] AES_IVR1[31:0] AES_IVR0[31:0]
Input data B0[31:0] B0[63:32] B0[95:64] B0[127:96]
