RM0444 Rev 5 167/1390

RM0444 Reset and clock control (RCC)

220

5.2.1 HSE clock

The high speed external clock signal (HSE) can be generated from two possible clock

sources:

• HSE external crystal/ceramic resonator

• HSE user external clock

The resonator and the load capacitors have to be placed as close as possible to the

oscillator pins in order to minimize output distortion and startup stabilization time. The

loading capacitance values must be adjusted according to the selected oscillator.

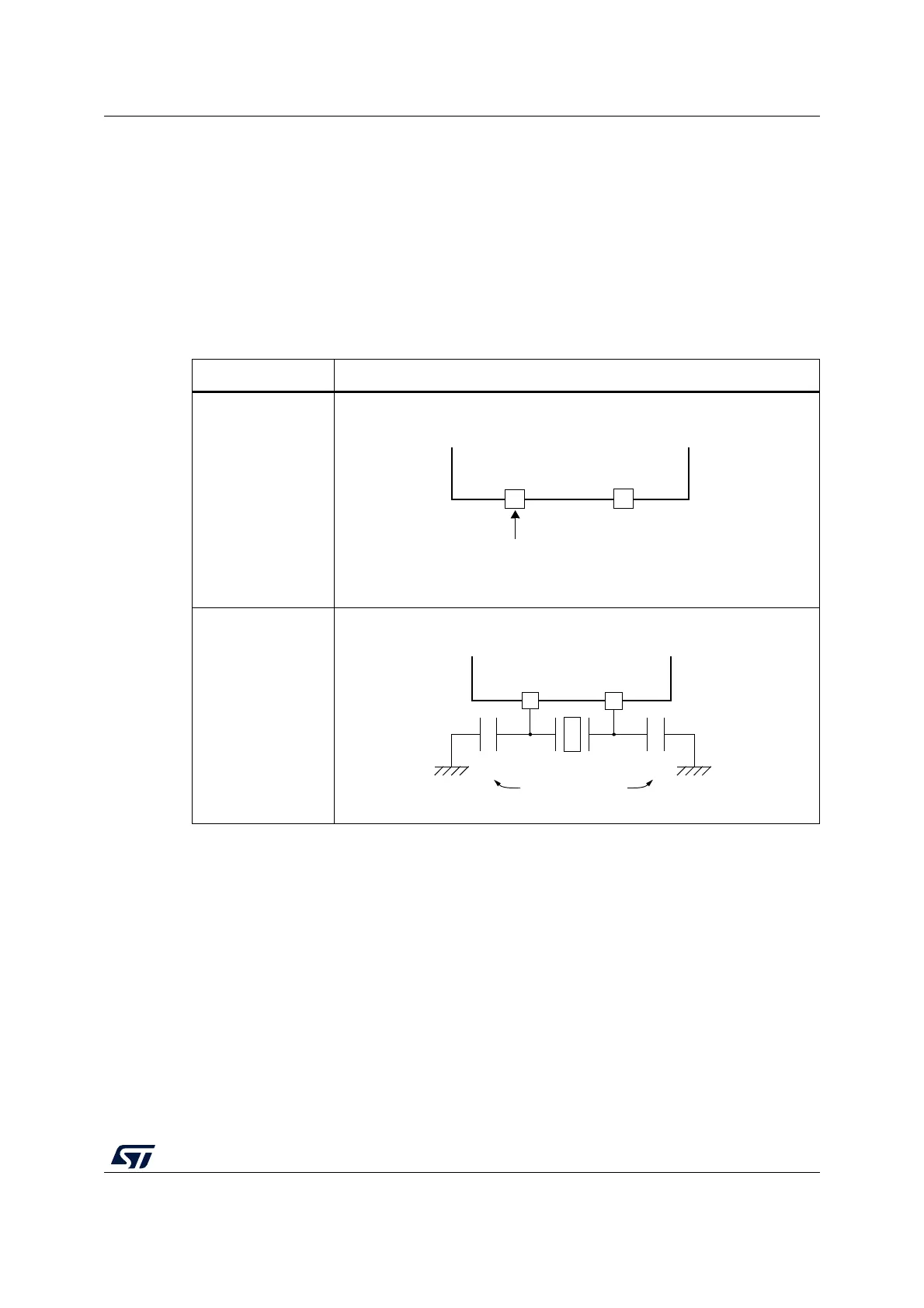

Figure 11. HSE/ LSE clock sources

Clock source Hardware configuration

External clock

Crystal/Ceramic

resonators

OSC_OUT

External

source

GPIO

OSC_IN

(OSC_EN as AF)

OSC_IN OSC_OUT

Load

capacitors
