Digital-to-analog converter (DAC) RM0444

412/1390 RM0444 Rev 5

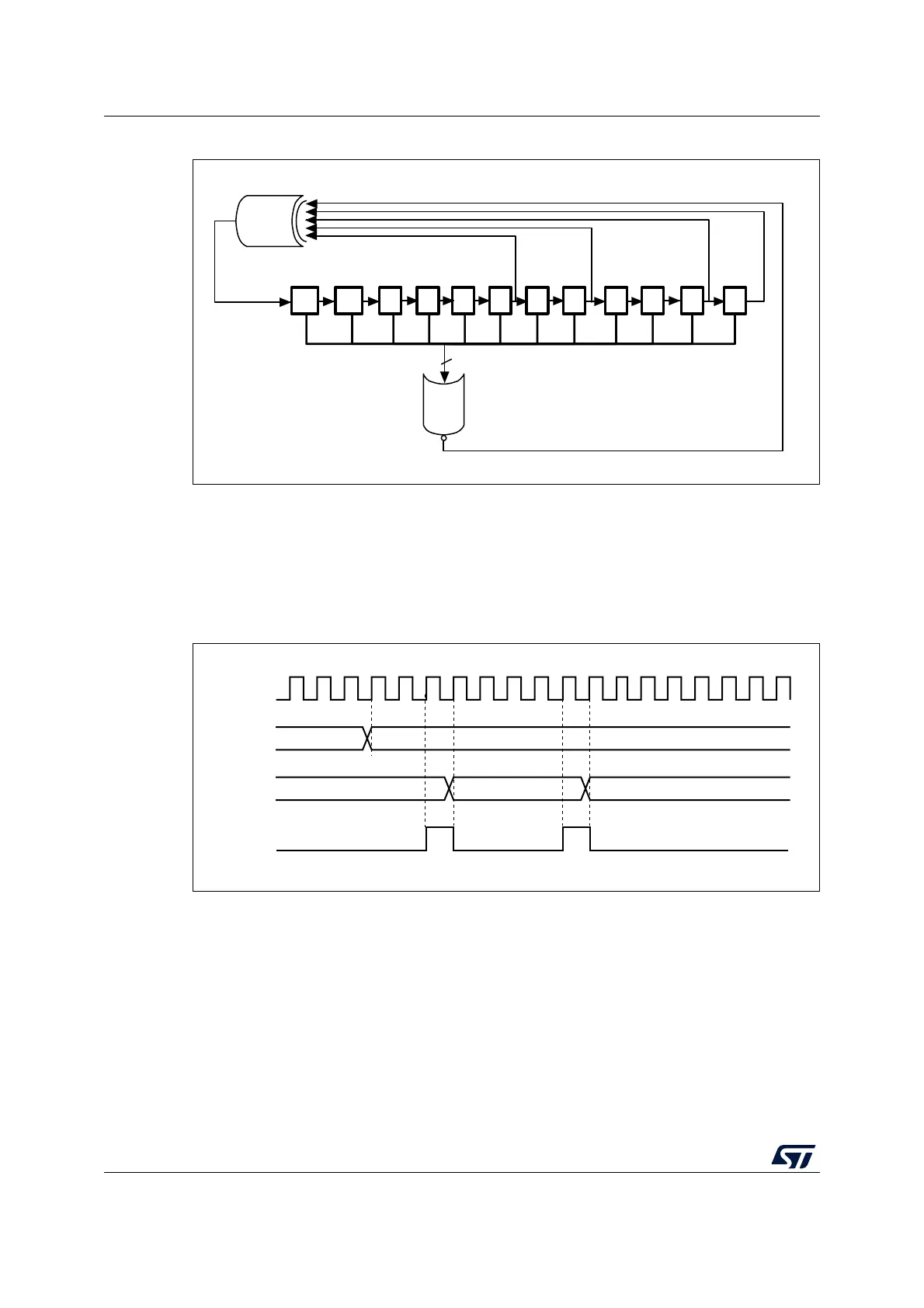

Figure 63. DAC LFSR register calculation algorithm

The LFSR value, that may be masked partially or totally by means of the MAMPx[3:0] bits in

the DAC_CR register, is added up to the DAC_DHRx contents without overflow and this

value is then transferred into the DAC_DORx register.

If LFSR is 0x0000, a ‘1 is injected into it (antilock-up mechanism).

It is possible to reset LFSR wave generation by resetting the WAVEx[1:0] bits.

Figure 64. DAC conversion (SW trigger enabled) with LFSR wave generation

Note: The DAC trigger must be enabled for noise generation by setting the TENx bit in the

DAC_CR register.

11 10 9 8 7 6 5 4 3 2 1 0

NOR

XOR

ai14713c

dac_pclk

0x00

0xAAA

DHR

DOR

MS45320V1

0xD55

SWTRIG
