Inter-integrated circuit (I2C) interface RM0444

938/1390 RM0444 Rev 5

32.4.8 Data transfer

The data transfer is managed through transmit and receive data registers and a shift

Reception

The SDA input fills the shift register. After the 8th SCL pulse (when the complete data byte is

received), the shift register is copied into I2C_RXDR register if it is empty (RXNE=0). If

RXNE=1, meaning that the previous received data byte has not yet been read, the SCL line

is stretched low until I2C_RXDR is read. The stretch is inserted between the 8th and 9th

SCL pulse (before the Acknowledge pulse).

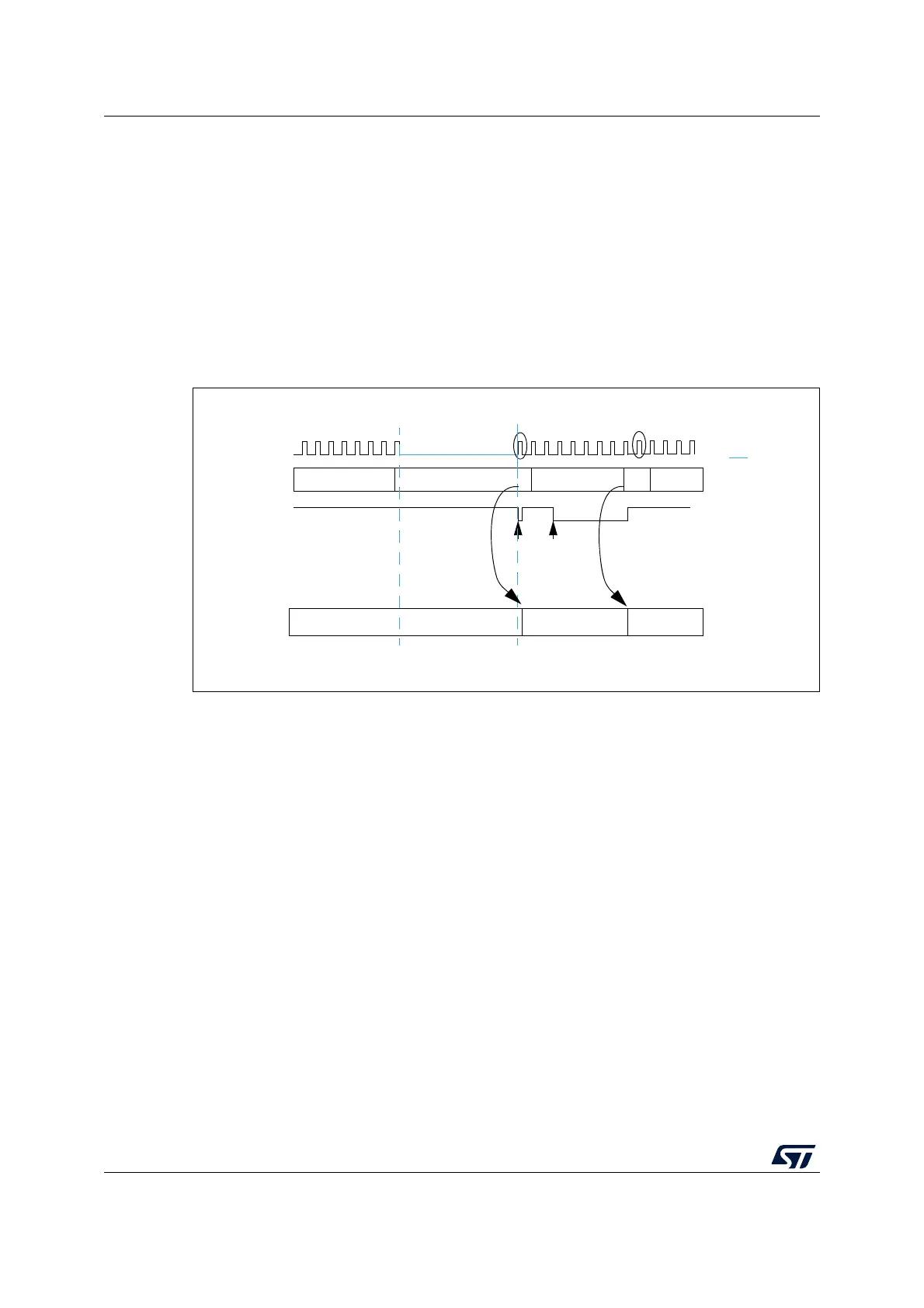

Figure 288. Data reception

Shift register

data1

xx data2

RXNE

ACK pulse

data0 data2

ACK pulse

I2C_RXDR

rd data1rd data0

SCL

legend:

SCL

stretch

MS19848V1
