ST STM32G0 1 Series - Figure 310. Transfer Sequence Flowchart for Smbus Slave Receiver N Bytes + PEC

To Next Page

To Previous Page

RM0444 Rev 5 971/1390

RM0444 Inter-integrated circuit (I2C) interface

997

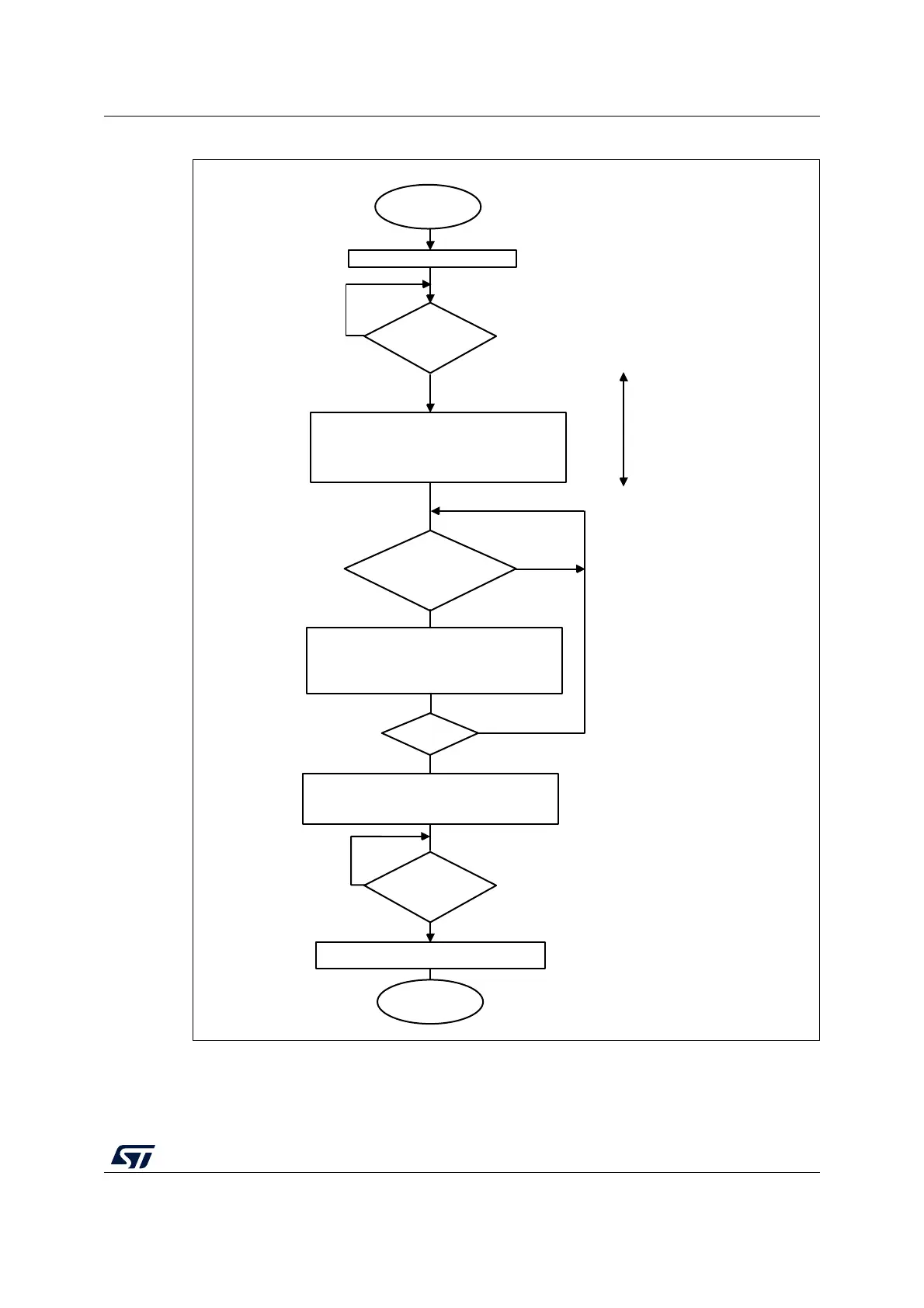

Figure 310. Transfer sequence flowchart for SMBus slave receiver N Bytes + PEC

MS19868V2

Slave initialization

SMBus slave

reception

Read I2C_RXDR.RXDATA

I2C_ISR.RXNE =1?

I2C_ISR.TCR = 1?

Yes

I2C_ISR.ADDR =

Yes

Read ADDCODE and DIR in I2C_ISR

I2C_CR2.NBYTES = 1, RELOAD =1

PECBYTE=1

Set I2C_ICR.ADDRCF

SCL

stretched

Read I2C_RXDR.RXDATA

Program I2C_CR2.NACK = 0

I2C_CR2.NBYTES = 1

N = N - 1

N = 1?

Read I2C_RXDR.RXDATA

Program RELOAD = 0

NACK = 0 and NBYTES = 1

I2C_ISR.RXNE =1?

End

Yes

Main Page
