USB

Regulator

USB

XCVR

USB

Controller

USB0_DM

USB0_DP

VDD

VOUT33

VREGIN

TYPE A

D+

D-

VBUS

stab

To PMC and Pads

Chip

VSS

Charger

Li-Ion

Si2301

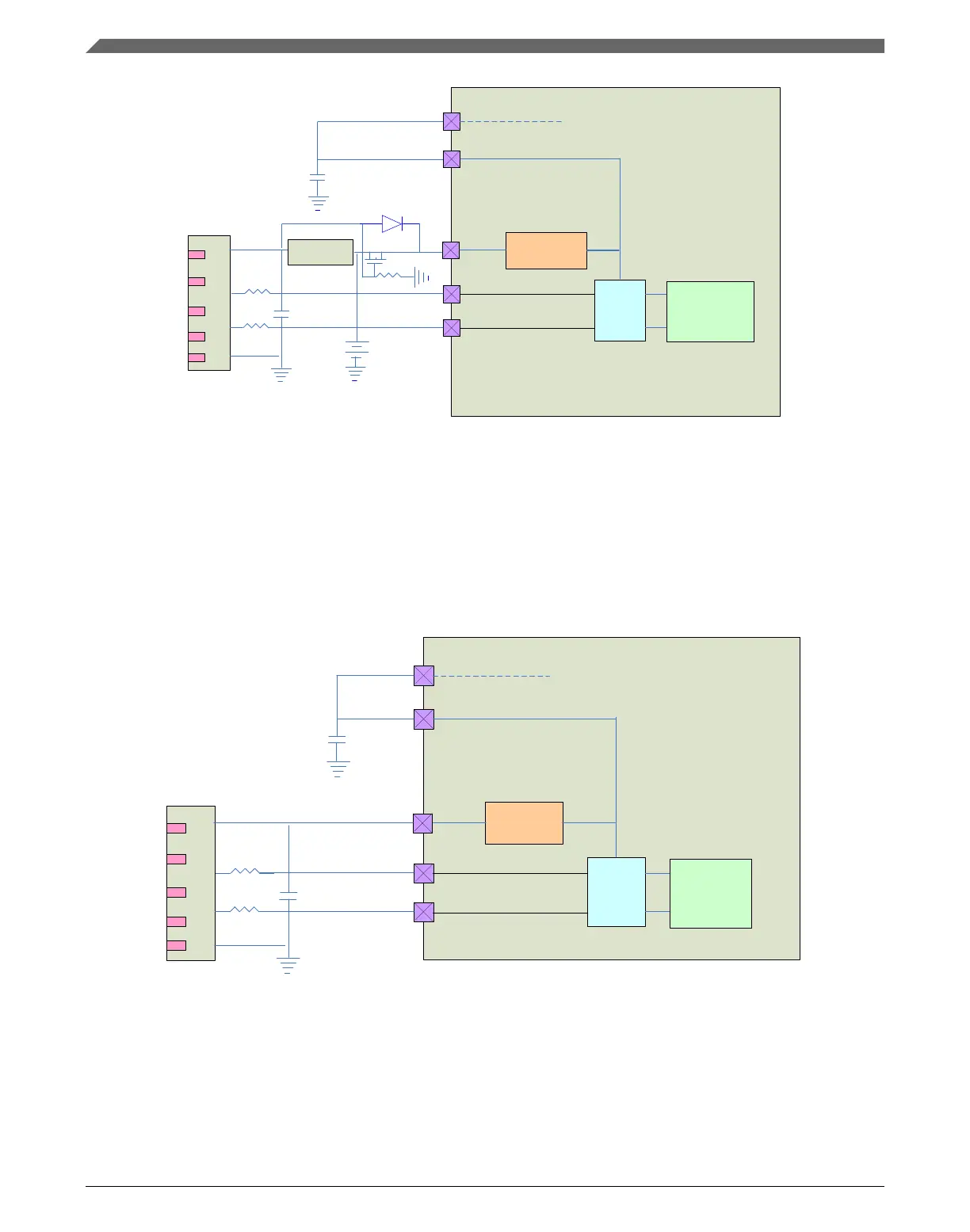

Figure 3-48. USB regulator Li-ion use case

3.9.1.2.3 USB bus power supply

The chip can also be powered by the USB bus directly. In this case, VOUT33 is

connected to VDD. The USB regulator must be enabled by default to power the MCU,

then to power USB transceiver or external sensor.

USB

Regulator

USB

XCVR

USB

Controller

USB0_DP

USB0_DM

VDD

VOUT33

VREGIN

TYPE A

D+

D-

VBUS

Cstab

To PMC and Pads

Chip

Figure 3-49. USB regulator bus supply

Communication interfaces

K22F Sub-Family Reference Manual, Rev. 4, 08/2016

124 NXP Semiconductors
