• FTMEN = 1
• QUADEN = 0
• CPWMS = 0
• CNTIN = 0x0000, and
• MOD = 0xFFFF
39.4.3.4 Counter reset
Any one of the following cases resets the FTM counter to the value in the CNTIN register
and the channels output to its initial value, except for channels in Output Compare mode.
• Any write to CNT.
• FTM counter synchronization.
• A channel in Input Capture mode with ICRST = 1 (FTM Counter Reset in Input
Capture Mode).
39.4.3.5 When the TOF bit is set
The NUMTOF[4:0] bits define the number of times that the FTM counter overflow
should occur before the TOF bit to be set. If NUMTOF[4:0] = 0x00, then the TOF bit is
set at each FTM counter overflow.
Initialize the FTM counter, by writing to CNT, after writing to the NUMTOF[4:0] bits to
avoid confusion about when the first counter overflow will occur.
FTM counter
NUMTOF[4:0]
TOF counter
set TOF bit
0x01
0x02 0x00
0x01
0x02
0x00
0x01
0x02
0x02

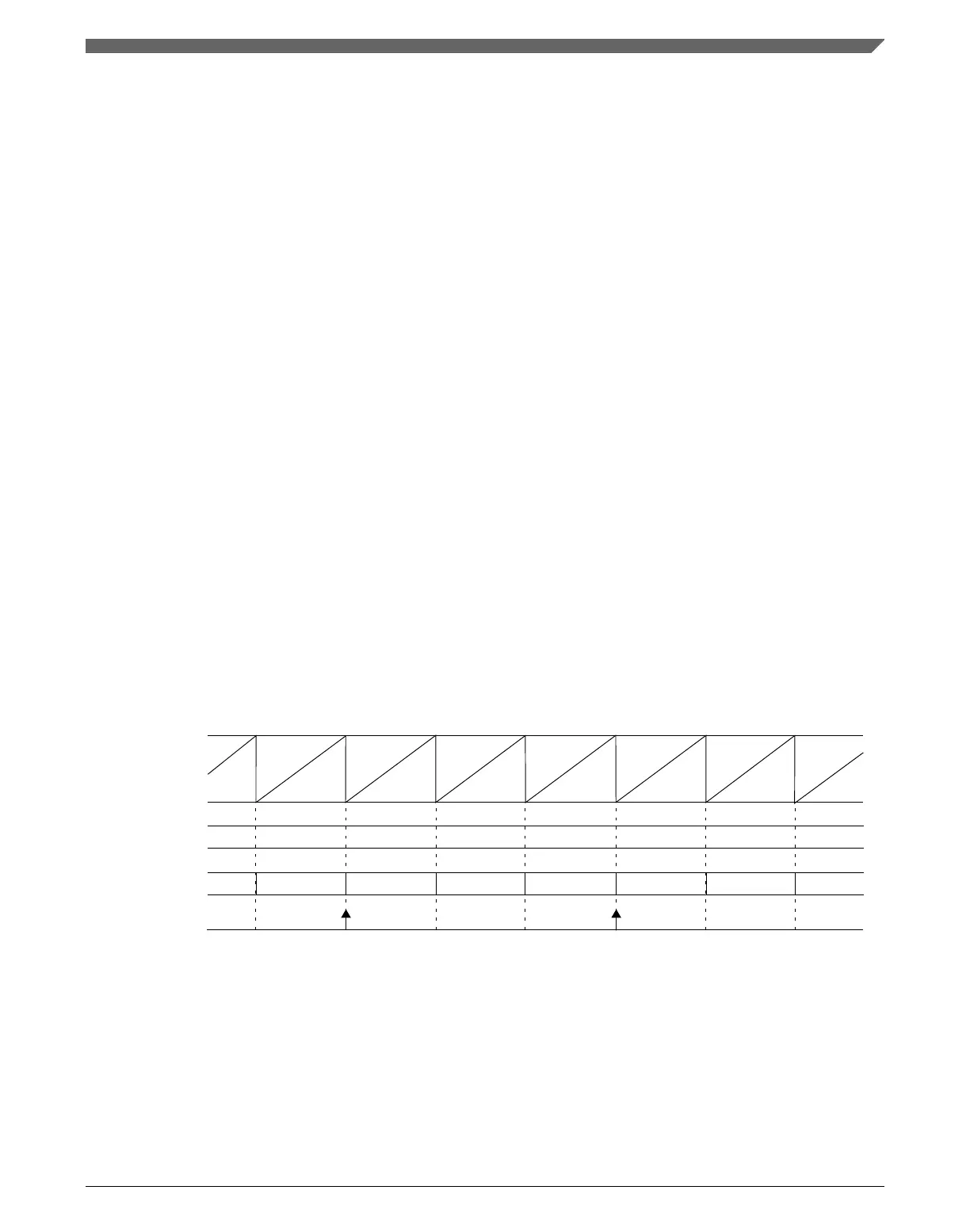

Figure 39-9. Periodic TOF when NUMTOF = 0x02
Chapter 39 FlexTimer Module (FTM)
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
NXP Semiconductors 953
