5. Turn on the main power switch of the machine.

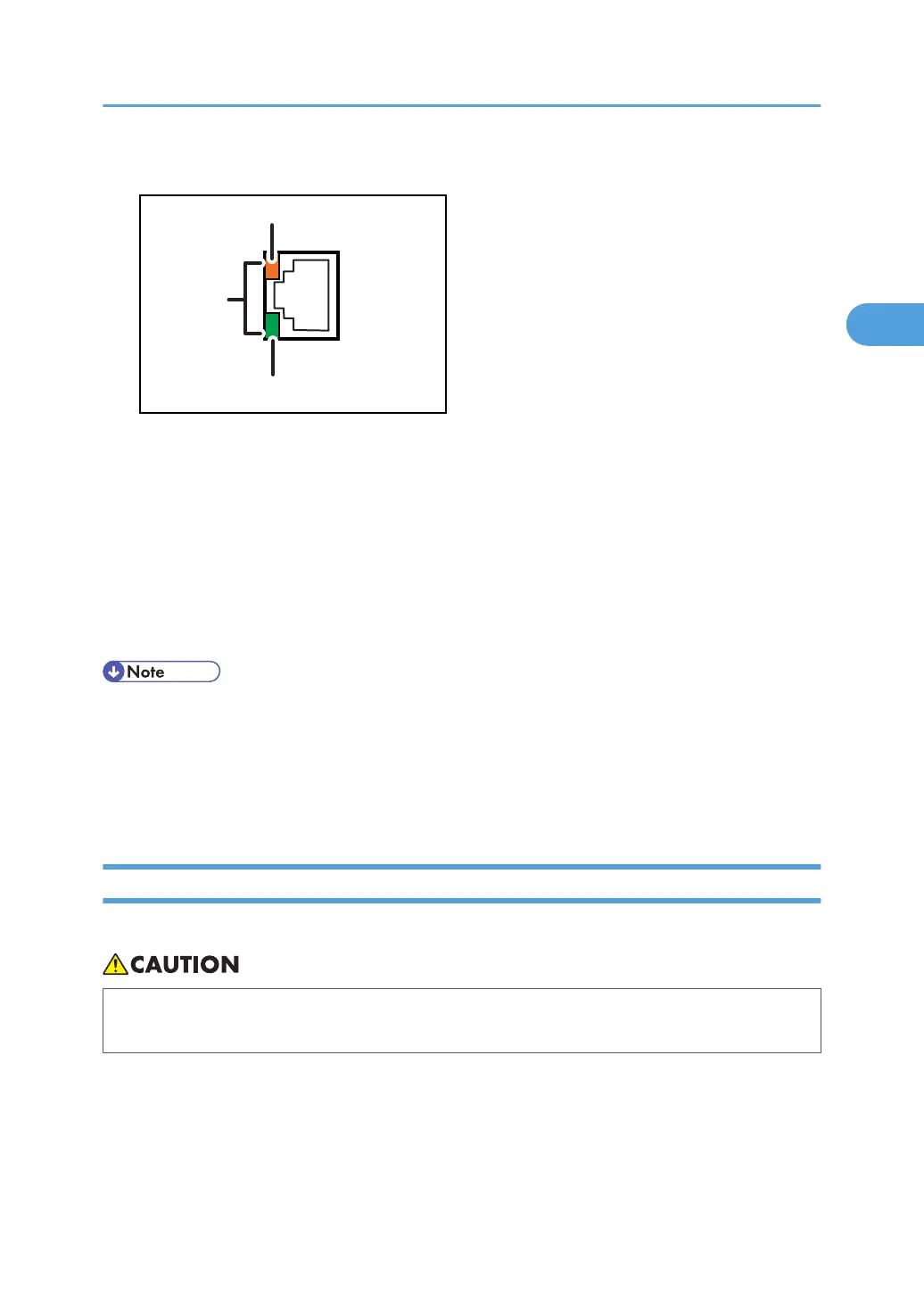

1. Indicator (orange)
When 100BASE-T is operating, the LED is lit orange. When 10BASE-TX is operating or the machine is
not connected to the network, it is turned off.
2.
Indicator (green)
When 10BASE-TX is operating, the LED is lit green. When 100BASE-T is operating or the machine is not
connected to the network, it is turned off.
3. Indicators (both orange and green)
When 1000BASE-T is operating, both LED are lit.
• Use an Ethernet interface cable that supports "Ethernet Speed". If you select [Auto Select] for
"Ethernet Speed", use an Ethernet interface cable that supports 1000BASE-T.
•
For details about how to turn on the main power switch, see "Turning On the Power", About This
Machine.
• For details about installing the printer driver, see "Preparing the Machine", Printer Reference.
Connecting to the USB (Type B) Interface
This section describes how to connect the USB2.0 (Type B) interface cable to the USB2.0 port.
• Properly shielded and grounded cables and connectors must be used for connections to a host
computer (and/or peripheral) in order to meet emission limits.
1. Connect the USB2.0 (Type B) interface cable to the USB2.0 port.
•
When connecting the USB interface cable to the standard USB2.0 (Type B) port
Connecting to the Interface
