B1.114 TTBR0 with Short-descriptor translation table format
TTBR0 has a specific format when using the Short-descriptor translation table format. TTBCR.EAE
determines which format of the register is in use.
The following figure shows the TTBR0 bit assignments when TTBCR.EAE is 0.
31 01234567
IRGN[1]
S
RES0
NOS
TTB0
IRGN[0]
RGN

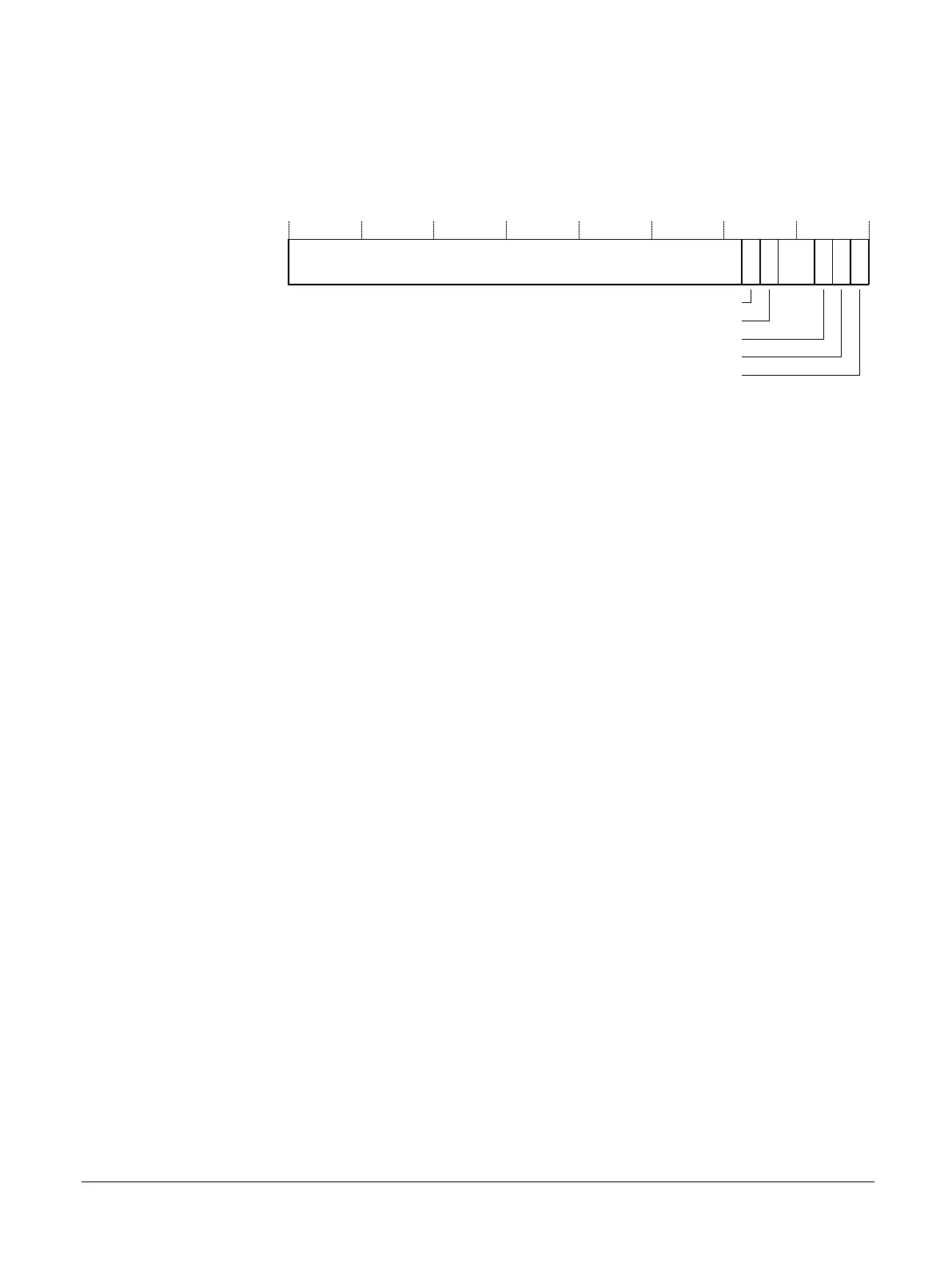

Figure B1-63 TTBR0 bit assignments, TTBCR.EAE is 0
TTB0, [31:7]
Translation table base 0 address, bits[31:x], where x is 14-(TTBCR.N). Bits [x-1:7] are RES0.
The value of x determines the required alignment of the translation table, that must be aligned to
2
x
bytes.
If bits [x-1:7] are not all zero, this is a misaligned Translation Table Base Address. Its effects are
CONSTRAINED UNPREDICTABLE, where bits [x-1:7] are treated as if all the bits are zero. The value
read back from those bits is the value written.
IRGN[0], [6]
See bit[0] for description of the IRGN field.
NOS, [5]
Not Outer Shareable bit. Indicates the Outer Shareable attribute for the memory associated with
a translation table walk that has the Shareable attribute, indicated by TTBR0.S is 1. The possible
values are:
0 Outer Shareable.
1 Inner Shareable.
This bit is ignored when TTBR0.S is 0.
RGN, [4:3]
Region bits. Indicates the Outer cacheability attributes for the memory associated with the
translation table walks. The possible values are:
0b00 Normal memory, Outer Non-cacheable.
0b01 Normal memory, Outer Write-Back Write-Allocate Cacheable.
0b10 Normal memory, Outer Write-Through Cacheable.
0b11 Normal memory, Outer Write-Back no Write-Allocate Cacheable.
[2]
Reserved, RES0.
S, [1]
Shareable bit. Indicates the Shareable attribute for the memory associated with the translation
table walks. The possible values are:
0 Non-shareable.
B1 AArch32 system registers
B1.114 TTBR0 with Short-descriptor translation table format
