C1.2 Debug access
The processor implements the Armv8 Debug architecture and debug events. Accessing system registers
allows the processor to access certain debug registers directly. The external debug interface enables both
external and self-hosted debug agents to access debug registers.
The partitioning of debug register access is as follows:
Debug registers
Access is based on the system registers and is memory-mapped. You can access the debug
register map using the APB slave port.
PMU
Access is based on the system registers and is memory-mapped. You can access the performance
monitor registers using the APB slave port.
ETM
Access is memory-mapped.
CTI
Access is based on the debug registers and is memory-mapped.
DBGEN
SPIDEN
NIDEN
SPNIDEN
Authentication
interface
COMMTX
COMMRX
DCC
handshake
DBGACK
EDBGRQ
DBGPWRDUP
Power
controller
interface
PSELDBG
PADDRDBG
PRDATADBG
PWDATADBG
PENABLEDBG
PREADYDBG
PSLVERRDBG
PWRITEDBG
PCLKENDBG
Debug slave
port, APBv3
Debug state
entry
DBGROMADDR
DBGROMADDRV
Processor
DBGRSTREQ
Reset
controller
interface
DBGPWRUPREQ
nCOMMIRQ
DBGNOPWRDWN
nPRESETDBG
Configuration
PADDRDBG31

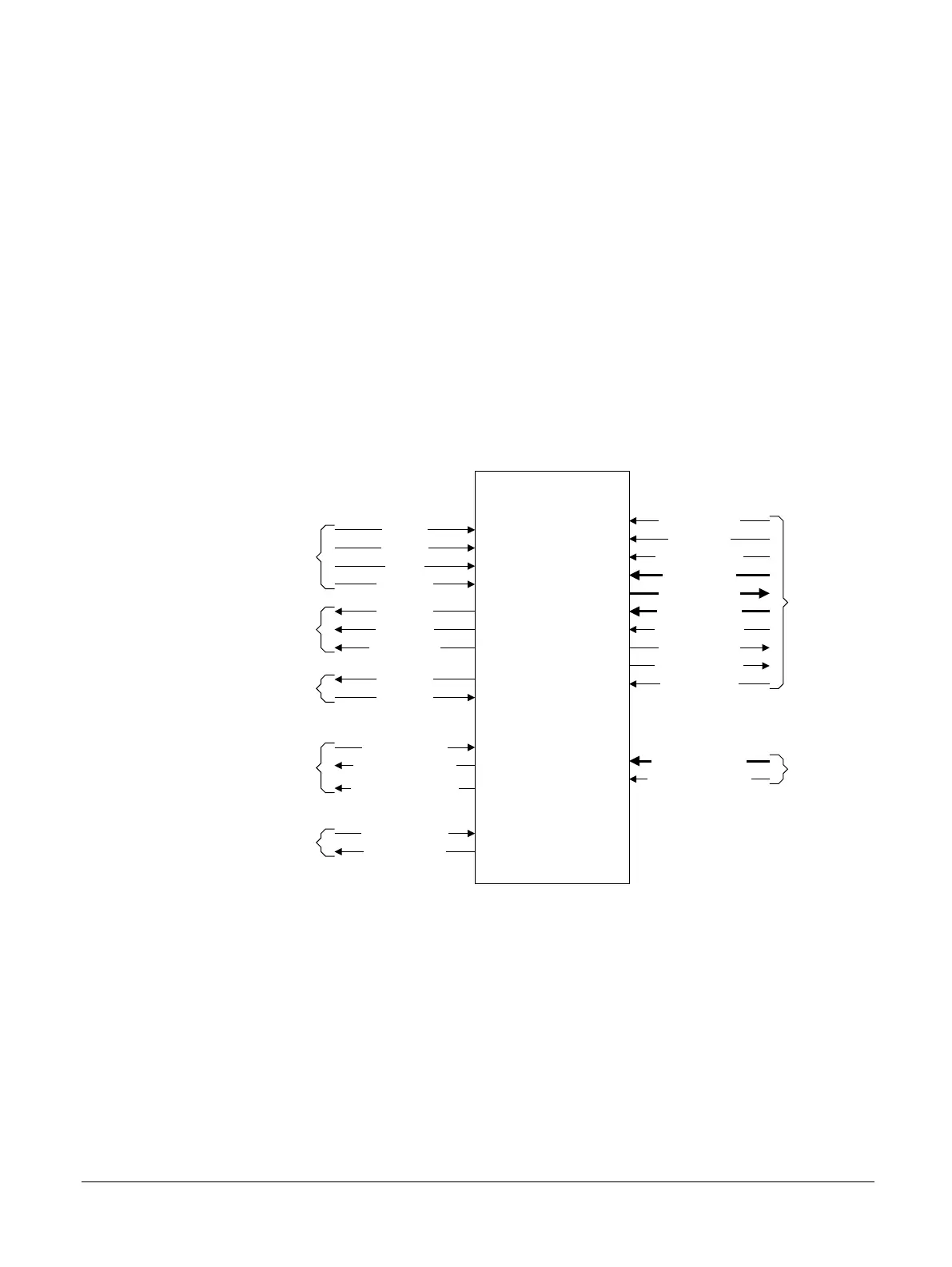

Figure C1-2 External debug interface
Related information
Chapter C4 CTI on page C4-603
Appendix A Signal Descriptions on page Appx-A-847
