C9.10 ROM Table Peripheral Identification Register 4
The ROMPIDR4 characteristics are:
Purpose
Provides information to identify an external debug component.
Usage constraints
This register is accessible as follows:
Off DLK OSLK EDAD SLK Default
- - - - - RO
C1.4 External access permissions to debug registers on page C1-579 describes the condition
codes.
Configurations
The ROMPIDR4 is in the Debug power domain.
Attributes
See C9.3 ROM table register summary on page C9-672.
RES0
31 0
34
DES_2
78
Size

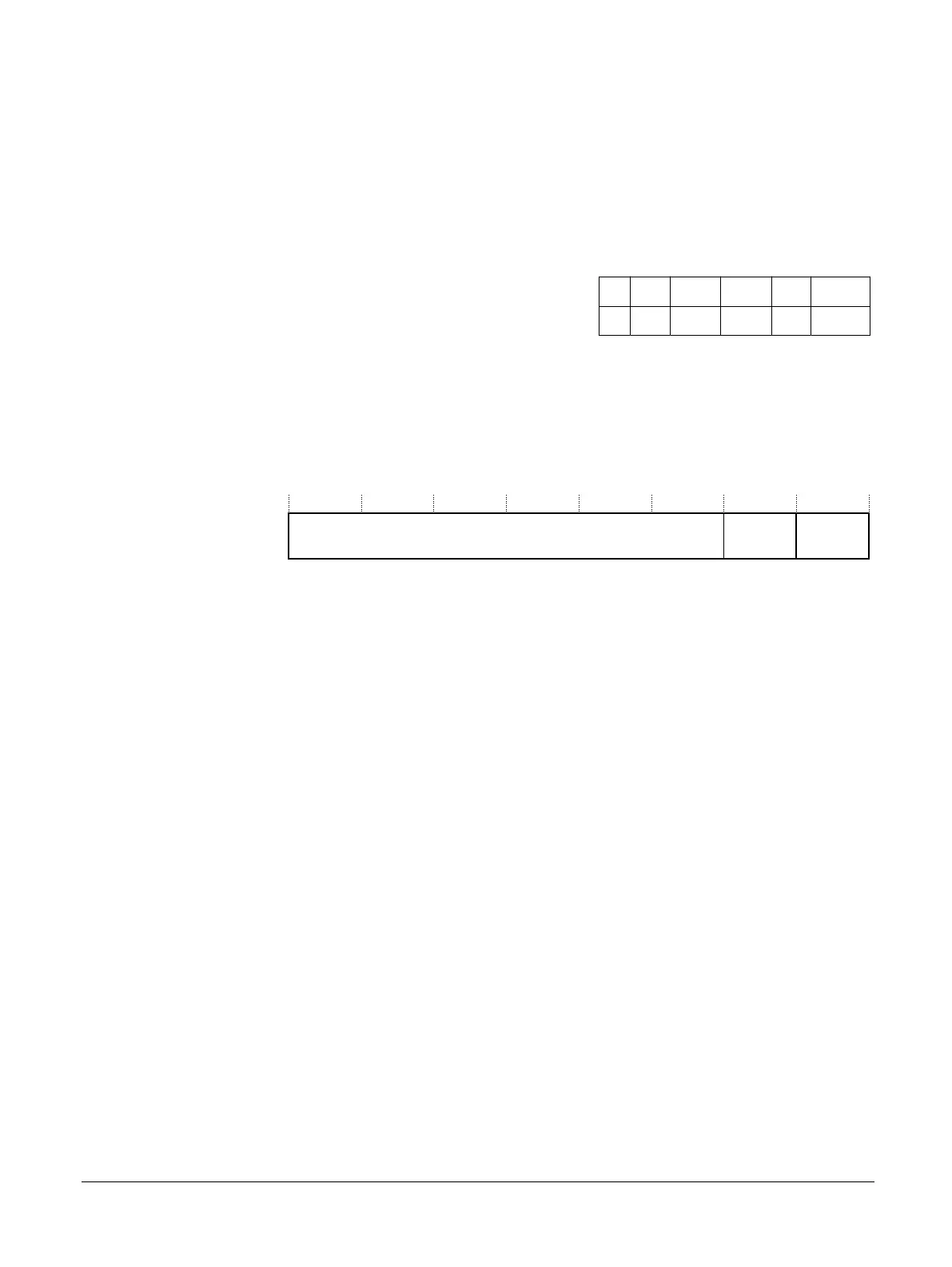

Figure C9-6 ROMPIDR4 bit assignments
[31:8]
Reserved, RES0.
Size, [7:4]
0x0 Size of the component. Log2 the number of 4KB pages from the start of the component to
the end of the component ID registers.
DES_2, [3:0]
0x4 Designer, JEP106 continuation code, least significant nibble. For Arm Limited.
The ROMPIDR4 can be accessed through the external debug interface, offset 0xFD0.
