C11.6 Auxiliary Control Register
The TRCAUXCTLR characteristics are:
Purpose
The function of this register is to provide IMPLEMENTATION DEFINED configuration and control
options.
Usage constraints
There are no usage constraints.
Configurations
Available in all configurations.
Attributes
See C11.1 ETM register summary on page C11-733.
31 0
RES0
8 7
COREIFEN
RES0
AUTHNOFLUSH
TSNODELAY
6 5 4 3 2 1
SYNCDELAY
OVFLW
IDLEACK
AFREADY

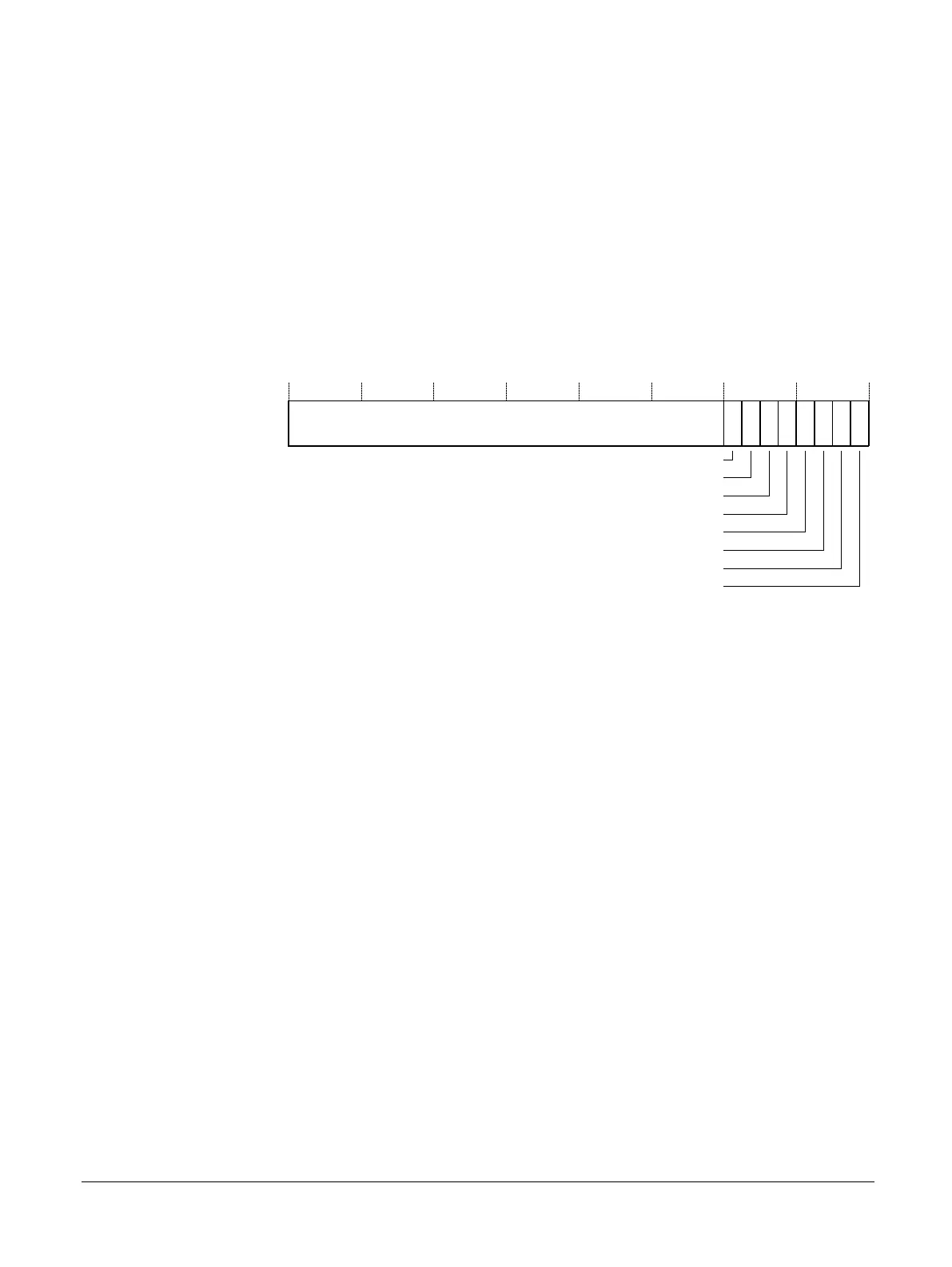

Figure C11-5 TRCAUXCTLR bit assignments
[31:8]
Reserved, RES0.
COREIFEN, [7]
Keep core interface enabled regardless of trace enable register state. The possible values are:
0 Core interface enabled is set by trace enable register state.
1 Enable core interface, regardless of trace enable register state.
[6]
Reserved, RES0.
AUTHNOFLUSH, [5]
Do not flush trace on de-assertion of authentication inputs. The possible values are:
0 ETM trace unit FIFO is flushed and ETM trace unit enters idle state when DBGEN or
NIDEN is LOW.
1 ETM trace unit FIFO is not flushed and ETM trace unit does not enter idle state when
DBGEN or NIDEN is LOW.
When this bit is set to 1, the trace unit behavior deviates from architecturally-specified behavior.
TSNODELAY, [4]
Do not delay timestamp insertion based on FIFO depth. The possible values are:
0 Timestamp packets are inserted into FIFO only when trace activity is LOW.
1 Timestamp packets are inserted into FIFO irrespective of trace activity.
SYNCDELAY, [3]
C11 ETM registers
C11.6 Auxiliary Control Register
