A4.4 Core Wait for Event
A core can use the Wait for Event (WFE) instruction to cause the core to enter a low-power state.
Wait for Event (WFE) is a feature of the Armv8-A architecture. It can be used by a locking mechanism
based on events to put the core in a low-power state by disabling most of the clocks in the core while
keeping the core powered-up. Apart from a small dynamic power overhead on the logic to enable the
core to wake up from WFE low-power state, this reduces the power drawn to static leakage current only.
When executing the WFE instruction, the core waits for all instructions in the core to complete before
entering the idle or low-power state.
If the event register is set, execution of a WFE instruction does not cause entry into standby state, but
clears the event register.
While the core is in WFE low-power state, the clocks in the core are temporarily enabled without causing
the core to exit WFE low-power state, when any of the following events are detected:
• An L2 snoop request that must be serviced by the core L1 Data cache.
• A cache or TLB maintenance operation that must be serviced by the core L1 Instruction cache, data
cache, or TLB.
• An APB access to the debug or trace registers residing in the core power domain.
Exit from WFE low-power state occurs when the core detects a reset, the assertion of the EVENTI input
signal, or one of the WFE wake-up events as described in the Arm
®
Architecture Reference Manual
Armv8, for Armv8-A architecture profile.
On entry into WFE low-power state, STANDBYWFE for that core is asserted. Assertion of
STANDBYWFE guarantees that the core is in idle and low-power state. STANDBYWFE continues to
assert even if the clocks in the core are temporarily enabled because of an L2 snoop request, cache or
TLB maintenance operation, or an APB access.
CLREXMON request and acknowledge signaling
When the CLREXMONREQ input is asserted, it signals the clearing of an external global exclusive
monitor and acts as a WFE wake-up event to all the cores in the cluster.
The CLREXMONREQ signal has a corresponding CLREXMONACK response signal. This forms a
standard 2-wire, 4-phase handshake that can be used to signal across the voltage and frequency boundary
between the core and system.

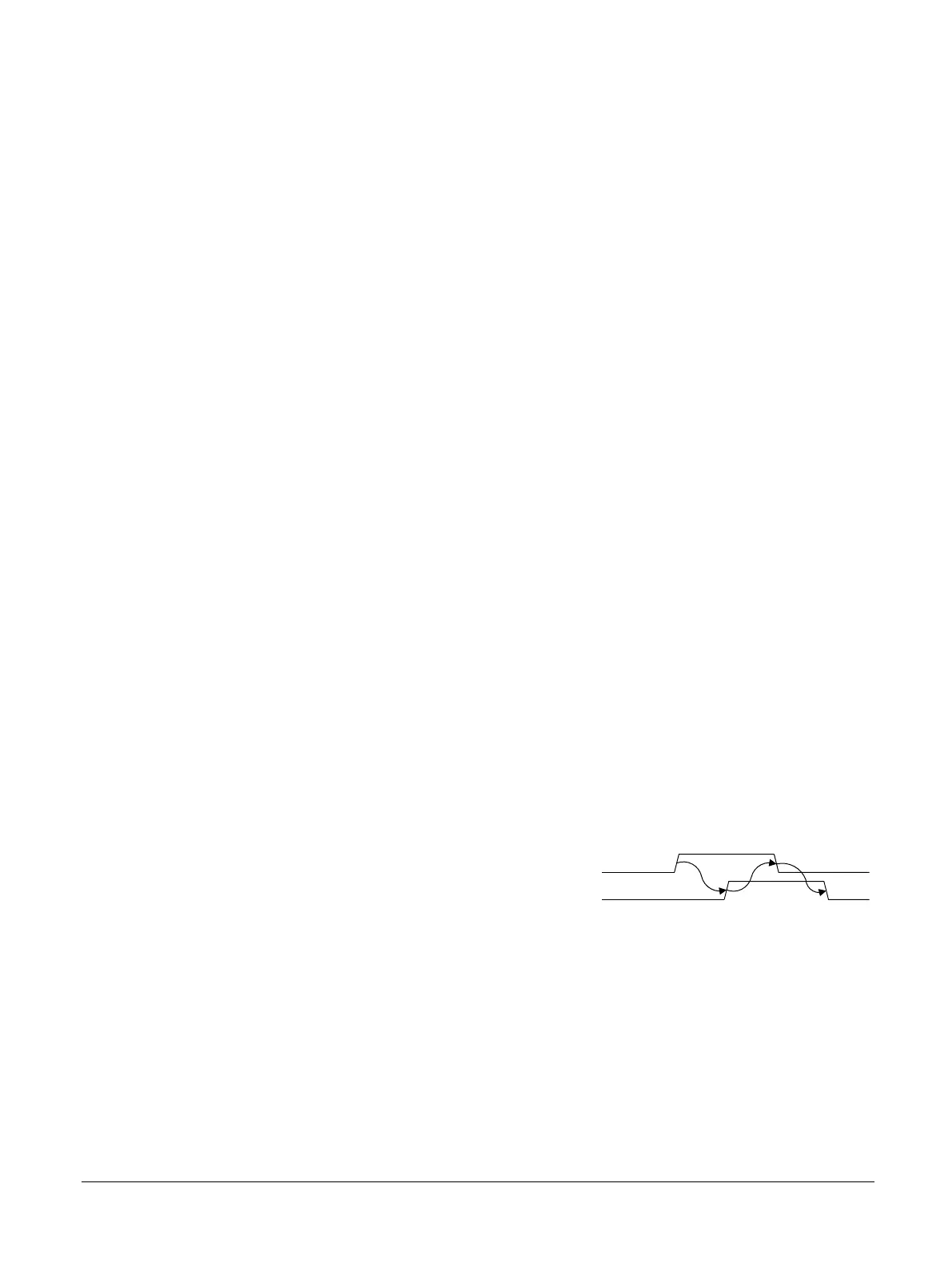

The following figure shows the CLREXMON request and acknowledge handshake. When the request
signal is asserted, it continues to assert until an acknowledge is received. When the request is deasserted,
the acknowledge can then deassert.
CLREXMONREQ
CLREXMONACK
Figure A4-2 CLREXMON request and acknowledge handshake
A4 Power Management
A4.4 Core Wait for Event
