Step 3: Development

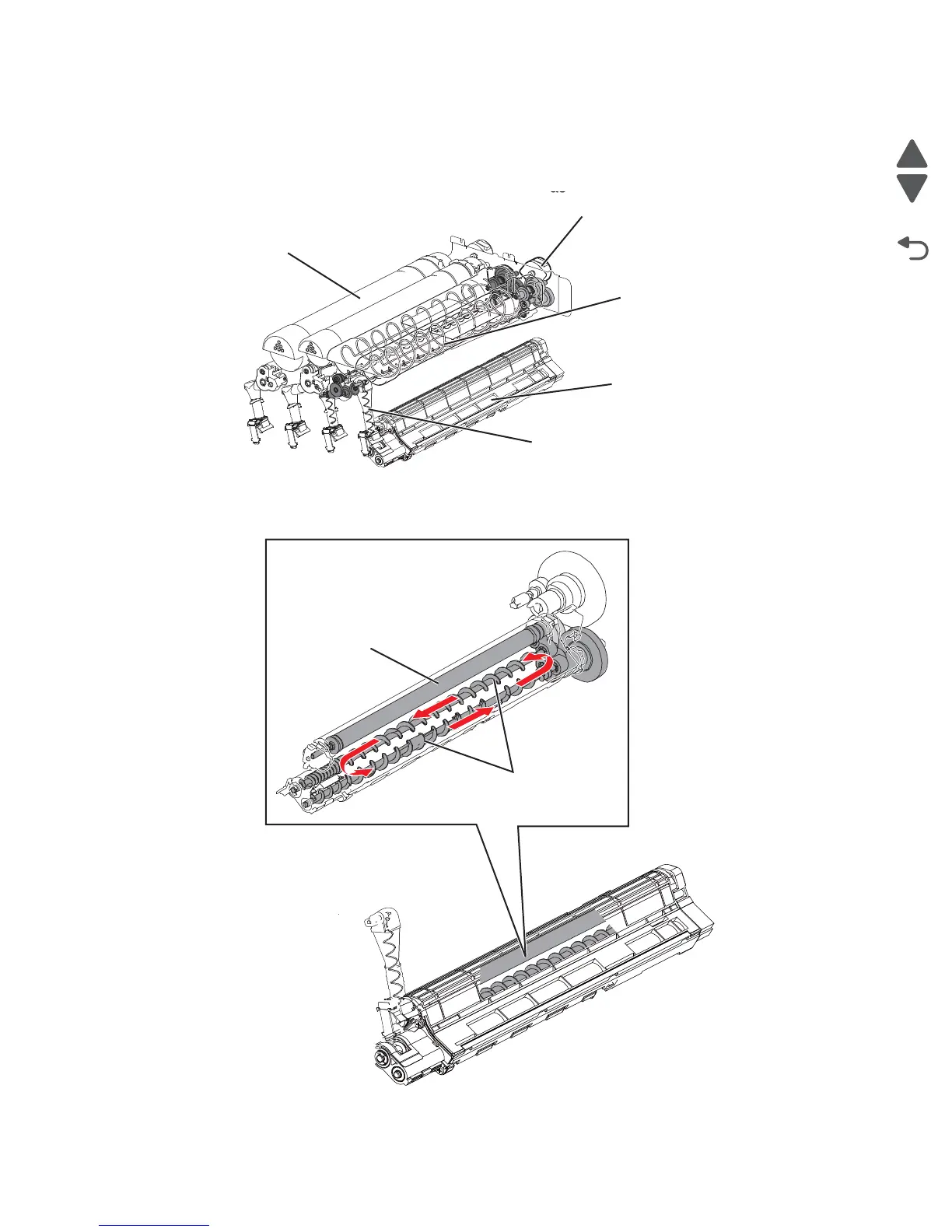

The toner inside the cartridge is circulated using a toner bottle auger driven by the toner dispense motor. The
toner particles then travel through the toner dispense auger and to the developer housing.
Inside the developer unit, the augers circulate and distribute the toner particles into the magnet roll surface
before they reach the photoconductor drum.
as
Toner dispense
motor
Toner bottle
auger
Toner dispense auger
Developer housing
Toner cartridge
Augers
Magnet roll
