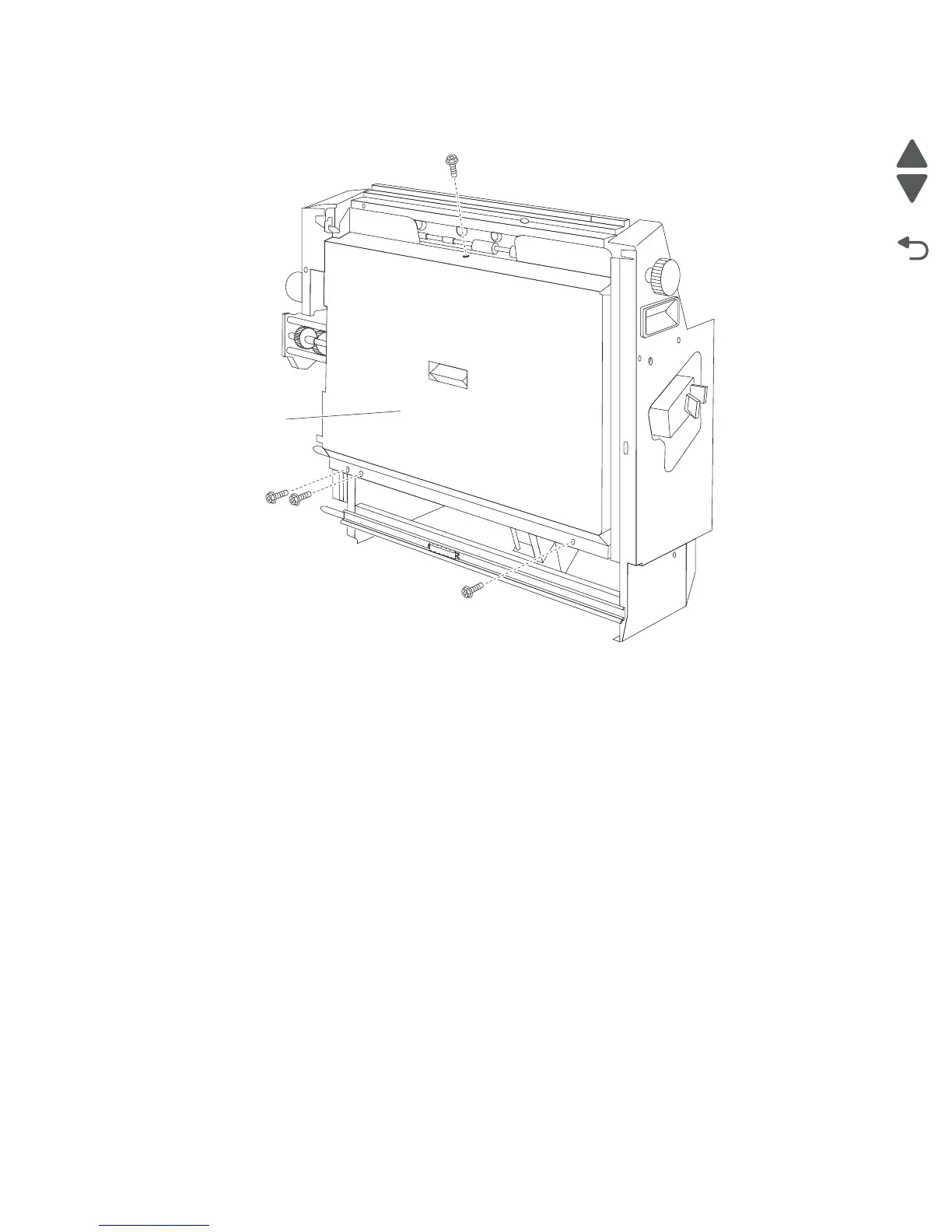

3. Loosen the two screws securing the left cover to the booklet unit assembly.
4. Remove the booklet unit assembly left cover (A).
Booklet unit chassis removal
1. Open the finisher front door assembly.
2. Slide the booklet unit out.
3. Remove the two screws that are securing the retainer to the machine.
4. Remove the retainer.
