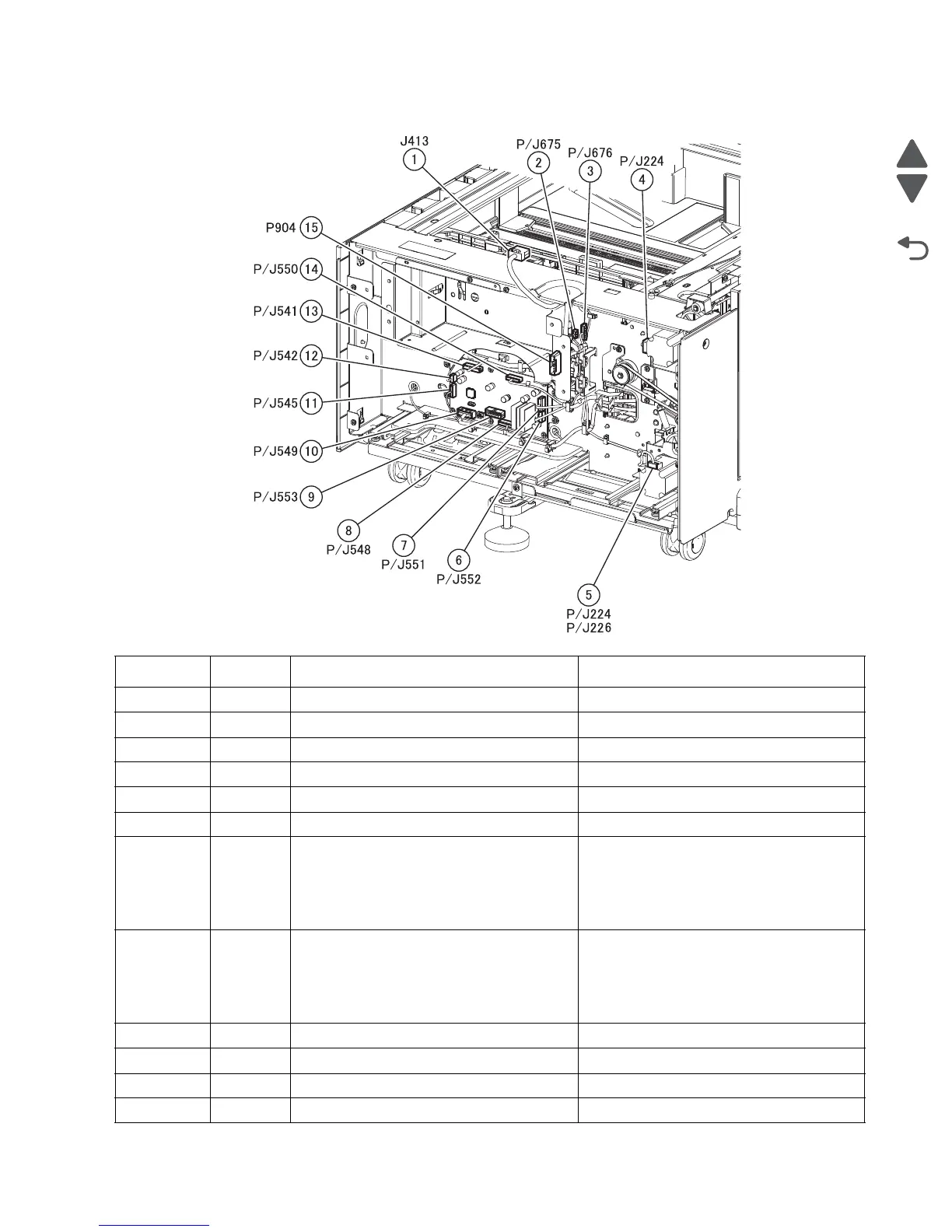

TTM—rear

Plug/Jack Callout Plug/jack description Connects to

P/J224 4 Tray module lower transport motor Tray module controller PCBA

P/J226 5 1TM/3TM upper transport motor Tray module controller PCBA

J413 1

P/J541 13 Tray module controller PCBA Tray module controller PCBA

P/J542 12

P/J545 11

P/J548 8 Tray module controller PCBA • Tray 3 media level sensor

• Tray 3 media out sensor

• Tray 4 media level sensor

• Tray 4 media out sensor

• Sensor (tray module feed out)

P/J549 10 Tray module controller PCBA • Media size switch PCB

• Tray 2 media level sensor

• Tray 2 media out sensor

• Sensor (tray module feed out)

• Sensor (tray module left door interlock)

P/J550 14 Tray module controller PCBA Media feed lift motor

P/J551 7 Tray module controller PCBA Tray module lower transport motor

P/J552 6 Tray module controller PCBA 1TM/3TM upper transport motor

P/J553 9
