4. Remove the HCF controller card PCBA (A).
HCF feed lift gear bracket removal
1. Remove the HCF media tray assembly from the printer. See “HCF media tray assembly removal” on
page 4-366.
2. Remove the HCF media feed unit assembly. See “HCF feed unit removal” on page 4-362.
3. Remove the HCF feed lift motor. See “HCF feed lift motor removal” on page 4-360.

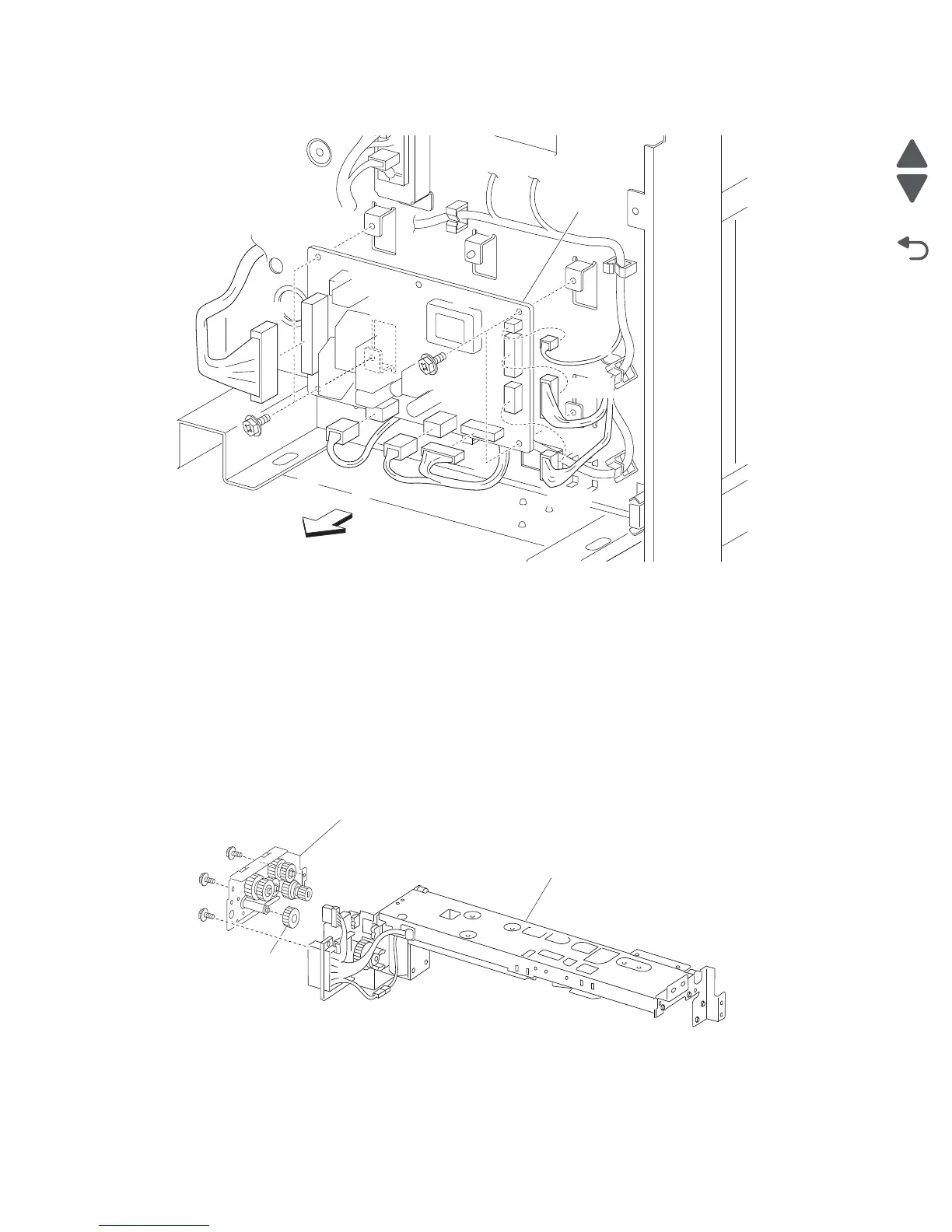

4. Remove the three screws securing the HCF feed lift gear bracket (A) to the media feed unit assembly (B).
5. Remove the HCF feed lift gear bracket (A).
6. Remove the gear lift gear 24T (C) from the HCF media feed unit assembly.
HCF feed lift motor removal
1. Remove the HCF media tray assembly. See “HCF media tray assembly removal” on page 4-366.
2. Remove the HCF media feed unit assembly. See “HCF feed unit removal” on page 4-362.
