• Front tamper motor
– A stepping motor that moves the front tamper for tamping.
– Clockwise rotation of this motor moves the front tamper to the rear side. Counterclockwise rotation of this
motor moves the tamper to the front side.
• Rear tamper motor
– A stepping motor that moves the rear tamper for tamping.
– Clockwise rotation of this motor moves the rear tamper to the front side. Counterclockwise rotation of this
motor moves the tamper to the rear side.
Stapler
This section describes the operation of the stapler.
Stapling operation
Sheets of media fed from the punch are tamped on the compiler unit assembly, and then stapled at specified
positions by the command of the printer.
Staple positions
There are four stapling modes:
• Front staple (corner) [front corner]
The stapler staples a set of media obliquely (45 degrees) after the rear tamper
aligns the media to the front side.

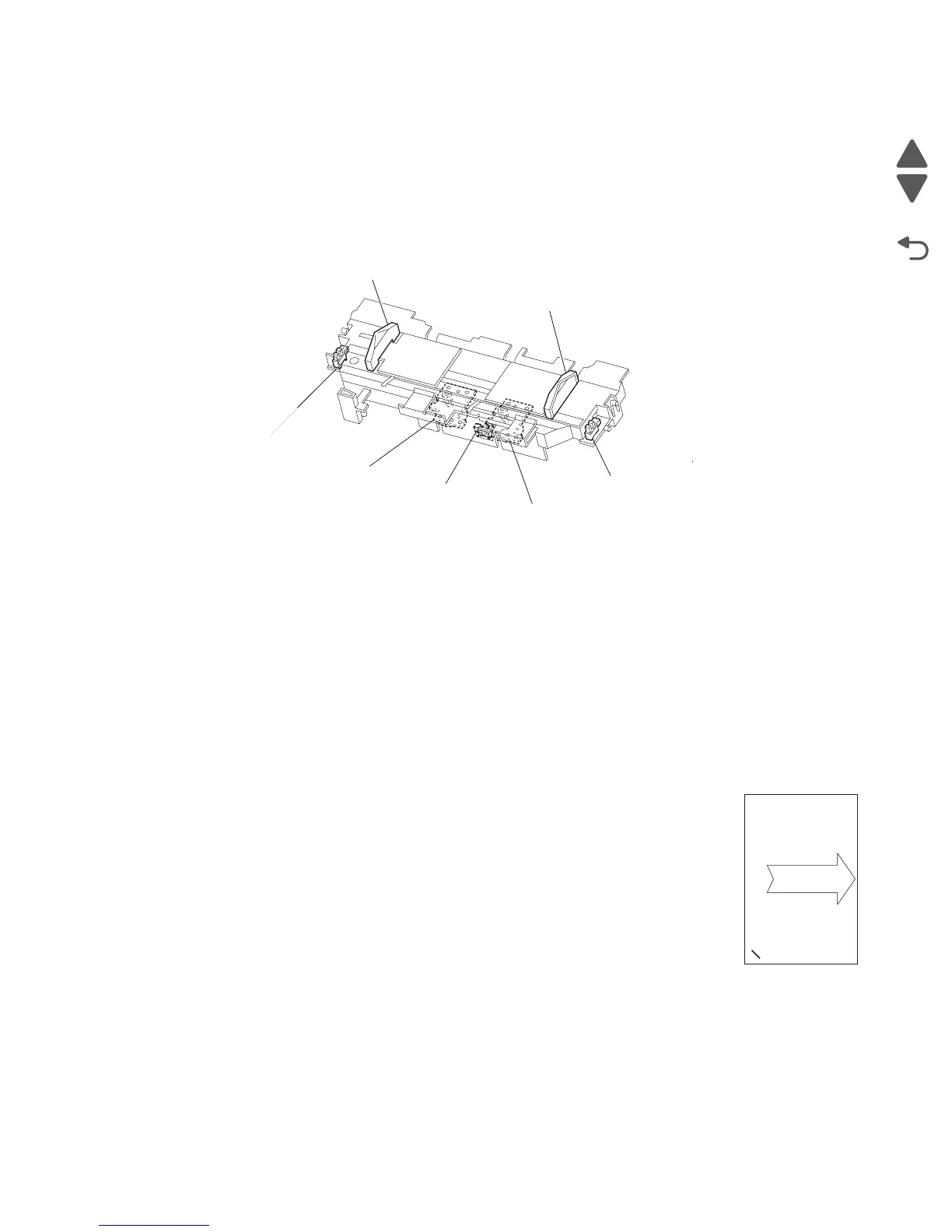

Rear tamper
Front tamper
Sensor (front tamper HP)
Front tamper motor
Sensor (compiler
media in)
Rear tamper motor
Sensor (rear
tamper HP)
Front
Rear
Process direction
