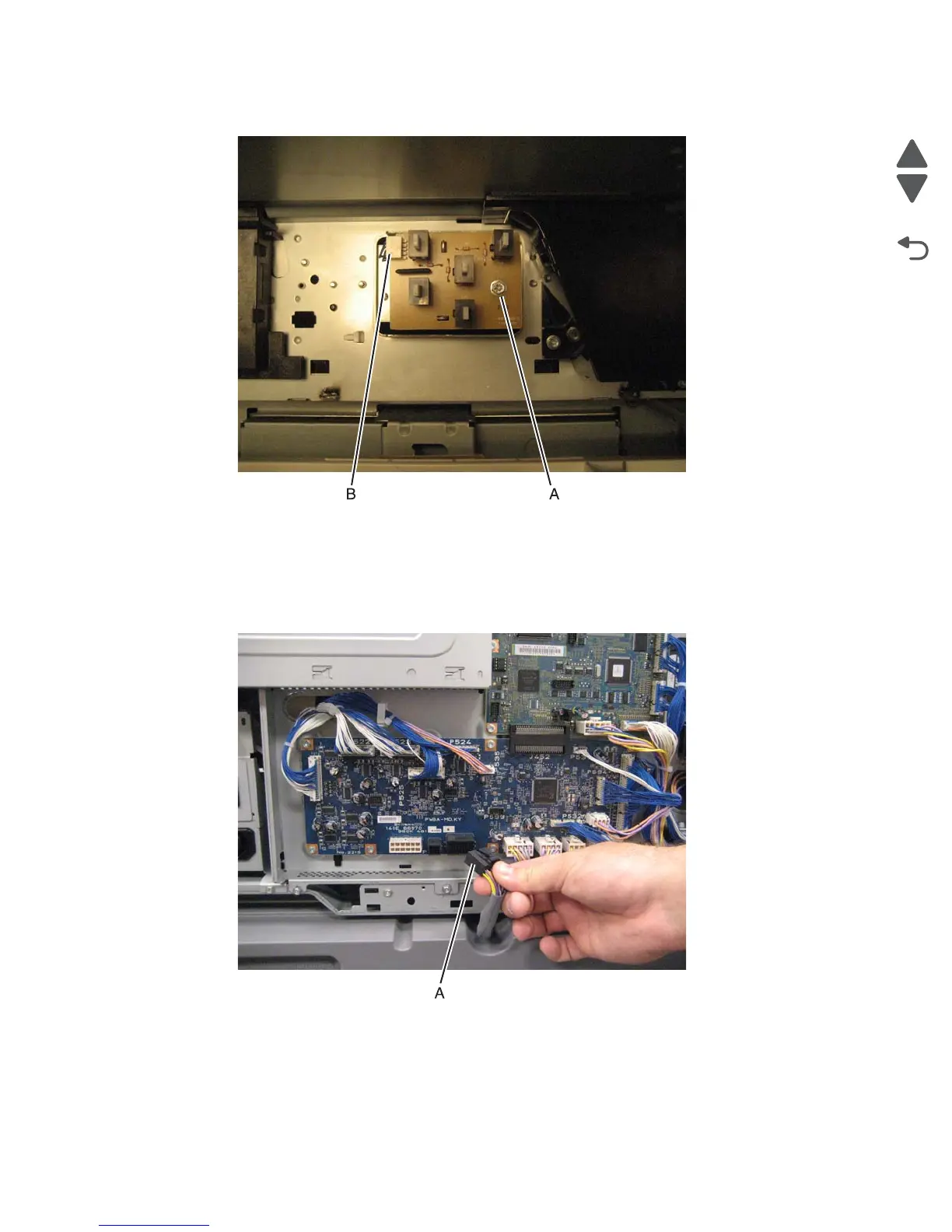

3. Disconnect the cable (B).
4. Remove the media size switch PCB.
Media transport/MPF drive motor removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
2. Disconnect the input option cable (A).
