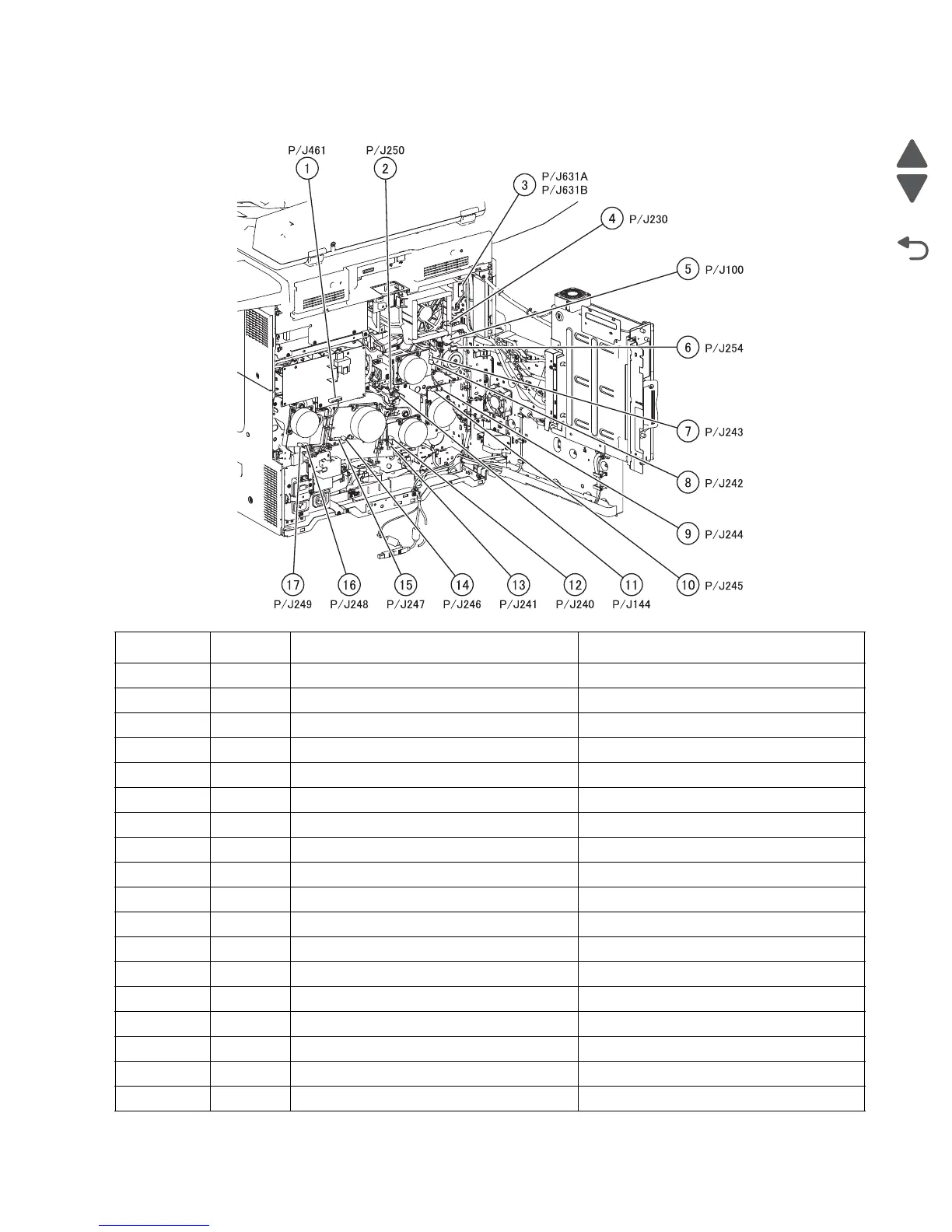

Connector locations 5-17
5058-030
Go Back
Previous
Next
Electrical, rear
Plug/Jack Callout Plug/jack description Connects to
P/J100 5 Sensor (printer left duplex door interlock) Lower engine PCBA
P/J144 11 1st transfer retract clutch assembly Upper engine PCBA
P/J230 4 Fuser cooling fan Lower engine PCBA
P/J240 12 PC/developer drive motor assembly Lower engine PCBA
P/J241 13 PC/developer drive motor assembly Lower engine PCBA
P/J242 8 Fuser motor Lower engine PCBA
P/J243 7 Fuser motor Lower engine PCBA
P/J244 9 Registration drive motor Lower engine PCBA
P/J245 10 Registration drive motor Lower engine PCBA
P/J246 14 PC/developer drive motor assembly Lower engine PCBA
P/J247 15 PC/developer drive motor assembly Lower engine PCBA
P/J248 16 PC/developer drive motor assembly Lower engine PCBA
P/J249 17 PC/developer drive motor assembly Lower engine PCBA
P/J250 2 1st transfer retract clutch assembly Upper engine PCBA
P/J254 6 Fuser pressure roll retract motor Lower engine PCBA
P/J461 1 Transfer roll HVPS PCBA Upper engine PCBA
P/J631A 3 Upper redrive assembly Lower engine PCBA
P/J631B 3 Upper redrive assembly Lower engine PCBA
