Lexmark C950 Service Manual

Repair information 4-303
5058-030
Go Back
Previous
Next

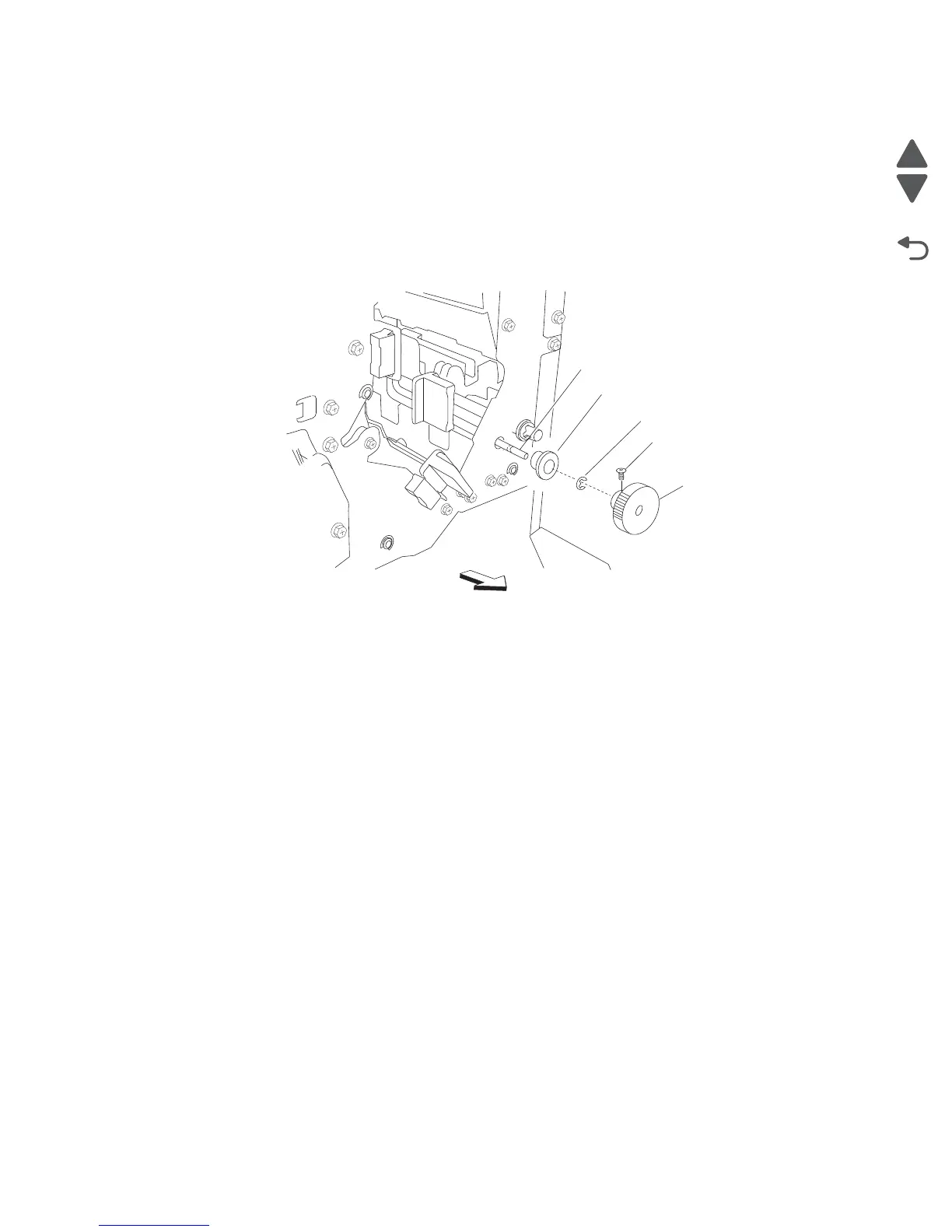

Paddle shaft removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-299.
4. Loosen the screw securing the knob (A) to the paddle shaft (B) on the front of the finisher.
5. Remove the knob (A).
6. Remove the one e-clip securing the paddle shaft (B).
7. Remove the bushing (C).
8. Loosen the two screws securing the belt tensioner bracket (D) to the rear of the finisher.
9. Release the hook of the sub paddle drive gear 23T (E) from the paddle shaft (B).
10. Remove the sub paddle drive gear 23T (E).
11. Remove the e-clip and the 6 mm bushing (C).
12. Move the paddle shaft (B) toward the rear of the finisher and outward.
13. Remove the paddle shaft (B).
B
C
A
E-clip
Screw
Front
