Lexmark C950 Service Manual

Connector locations 5-45
5058-030
Go Back
Previous
Next

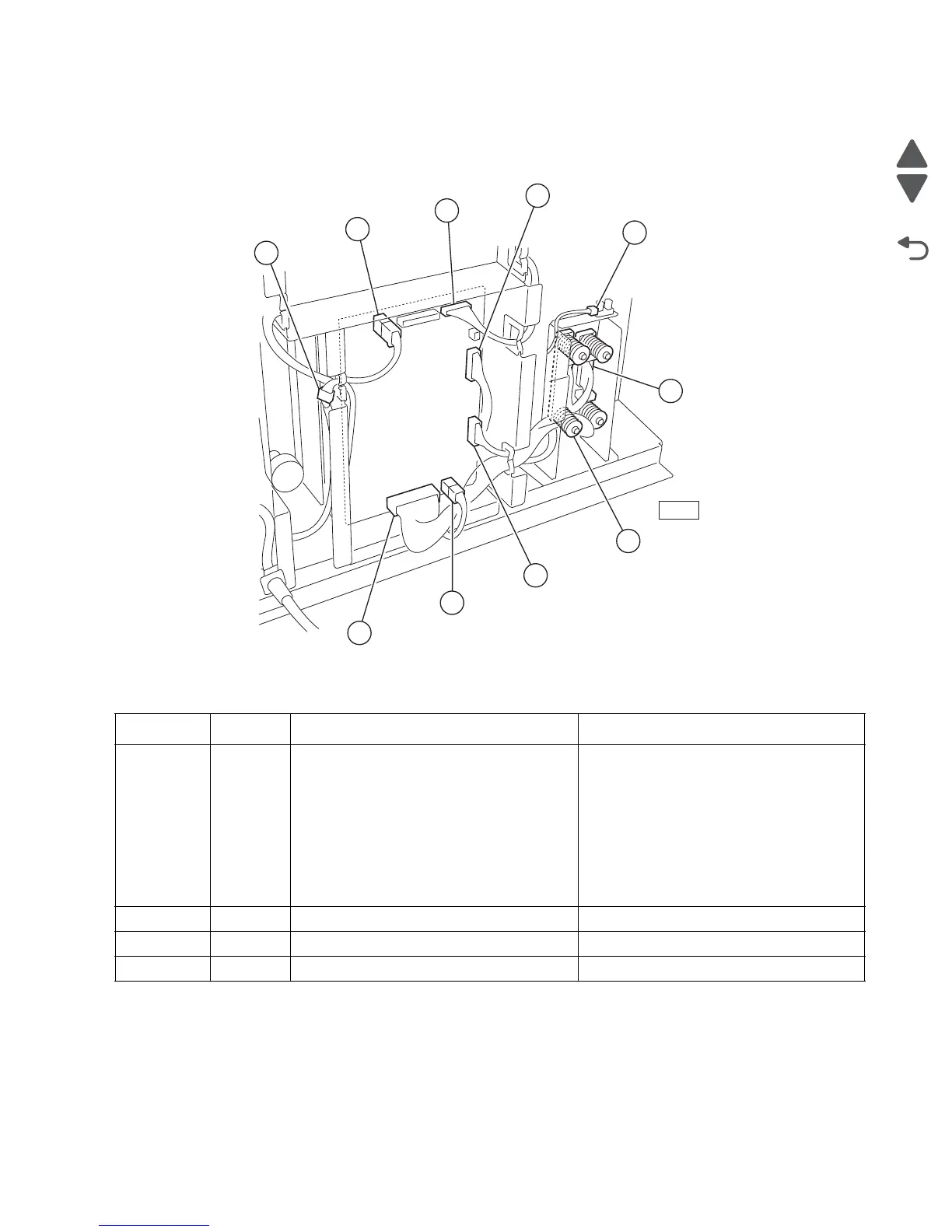

Finisher—controller card
Plug/Jack Callout Plug/jack description Connects to
J8202 6 Booklet controller card assembly • Booklet fold solenoid
• Sensor (booklet knife HP)
• Sensor (booklet knife folding)
• Booklet folding/exit motor
• Sensor (booklet media exit)
• Sensor (booklet media entrance)
• Sensor (booklet rear tamper HP)
• Sensor (booklet front tamper HP)
• Sensor (booklet end guide HP)
J8203 7 Booklet controller card assembly Booklet stapler unit assembly
P/J8377 3 Booklet controller card assembly Finisher controller PCBA
P/J8378 2 Booklet controller card assembly Finisher controller PCBA
Rear
P/ J8411A
P/ J8411B
1
P/ J8378
2
P/ J8377
3
P/ J8405
4
P/ J8429
5
P/ J8202
6
J8203
7
P/ J8408
8
P/ J8407
9
P/ J8406
10
