Lexmark C950 - HCF Sensor (Tray 5 Feedout) Removal

Repair information 4-373
5058-030
Go Back
Previous
Next

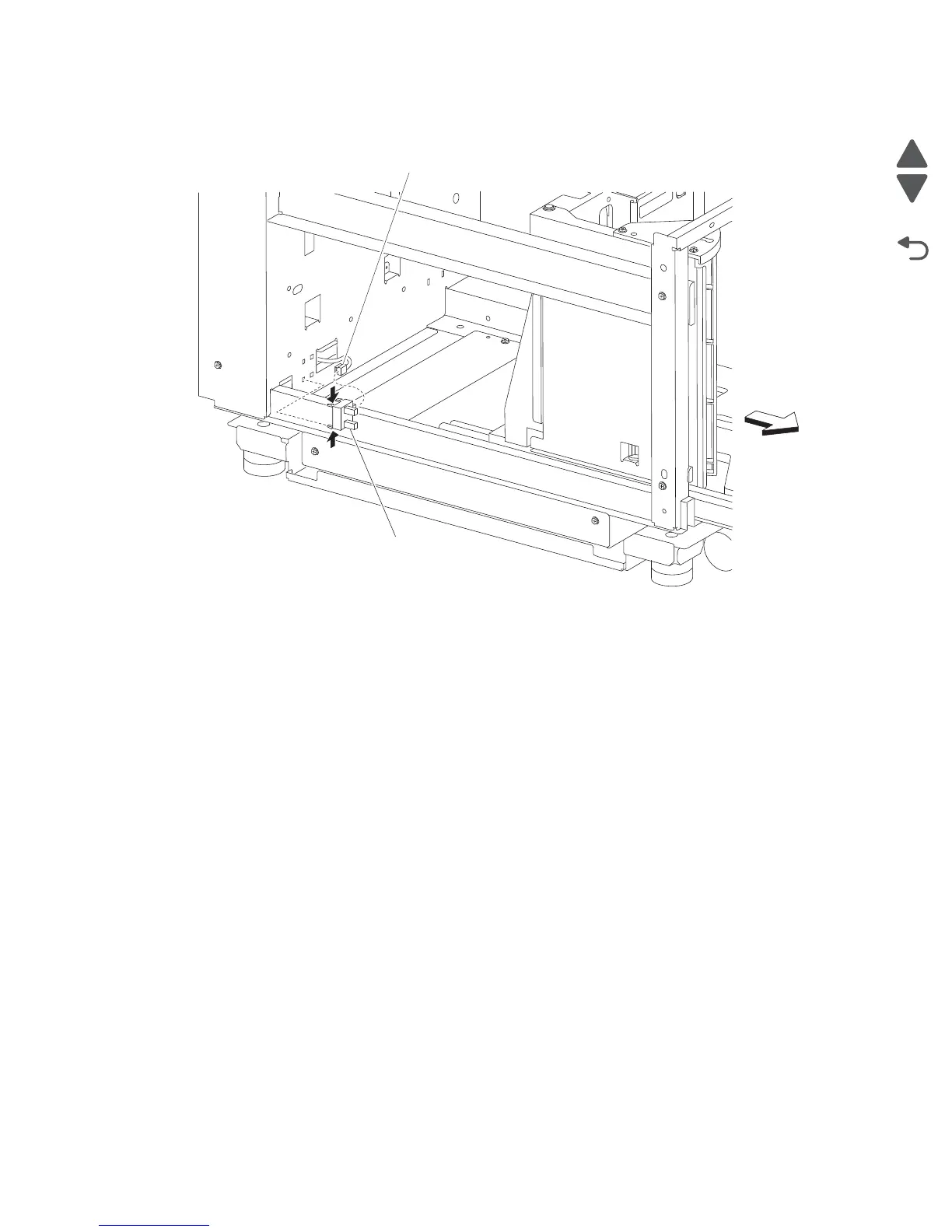

5. Release the hooks securing the sensor (HCF media tray set) (A) to the unit.
6. Remove the sensor (HCF media tray set) (A).
HCF sensor (tray 5 feedout) removal
1. Remove the HCF unit from the printer.
2. Remove the HCF right cover.
3. Open the HCF top door assembly.
4. Remove the two screws securing the bracket (B) to the unit.
5. Remove the bracket (B).
6. Disconnect the connector from the sensor (tray 5 feedout) (A).
7. Release the hooks securing the sensor (tray 5 feedout) (A) to the bracket (B).
A
Front
Connector
