Lexmark C950 - Sensor (Booklet Compiler Media Entrance) Removal

Repair information 4-311
5058-030
Go Back
Previous
Next

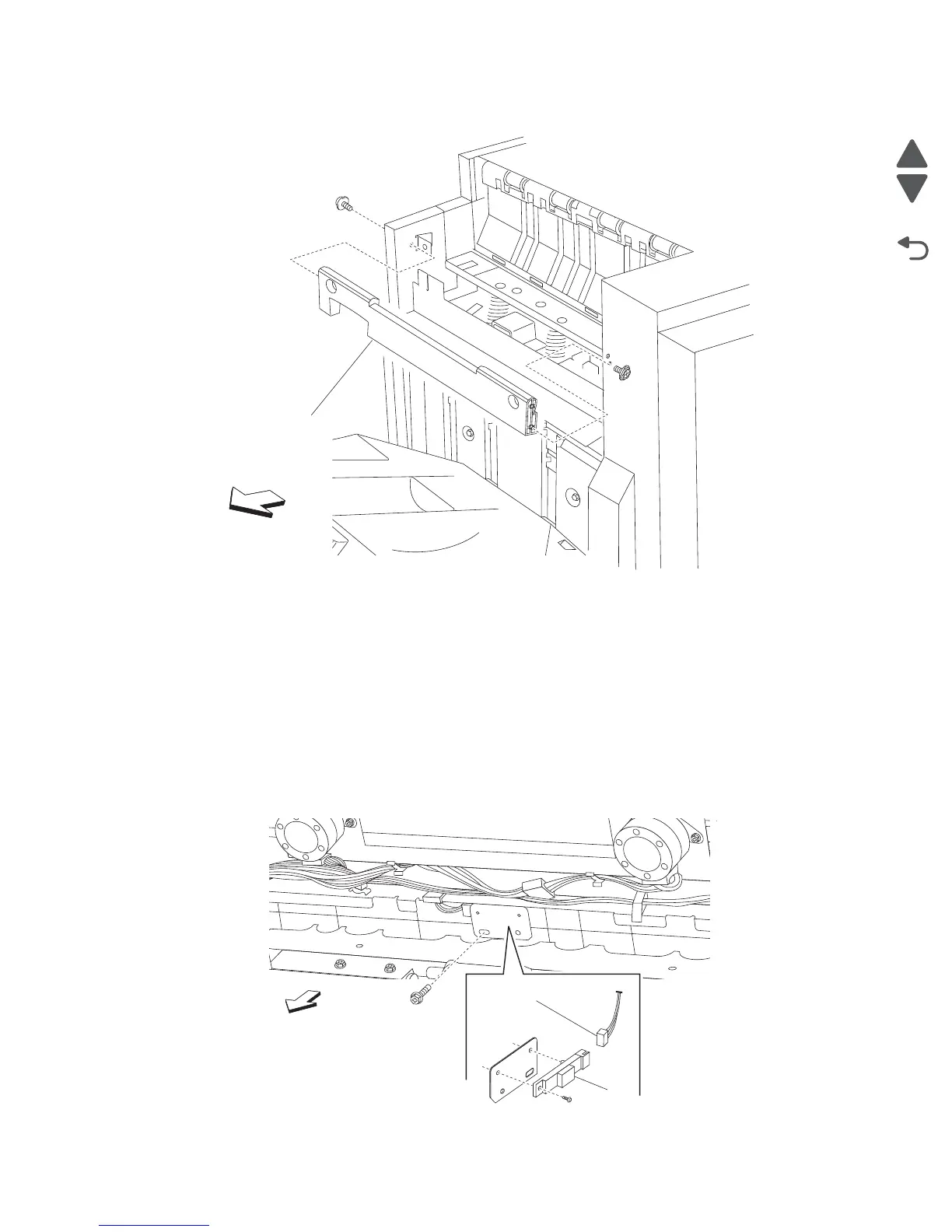

3. Remove the two screws securing the right eject cover (A) to the finisher.
4. Remove the right eject cover (A).
Sensor (booklet compiler media entrance) removal
1. Remove the booklet unit chassis. See “Booklet unit chassis removal” on page 4-263.
2. Remove the booklet unit assembly left cover. See “Booklet unit assembly left cover removal” on
page 4-262.
3. Disconnect the connector from the sensor (booklet compiler media entrance) (A).
4. Remove the screw securing the sensor (booklet compiler media entrance) bracket from the booklet unit
chassis.
5. Remove the screw securing the sensor (booklet compiler media entrance) (A) from the bracket.
6. Remove Sensor (booklet compiler media entrance) (A).
A
Right
Connector
A
Left
