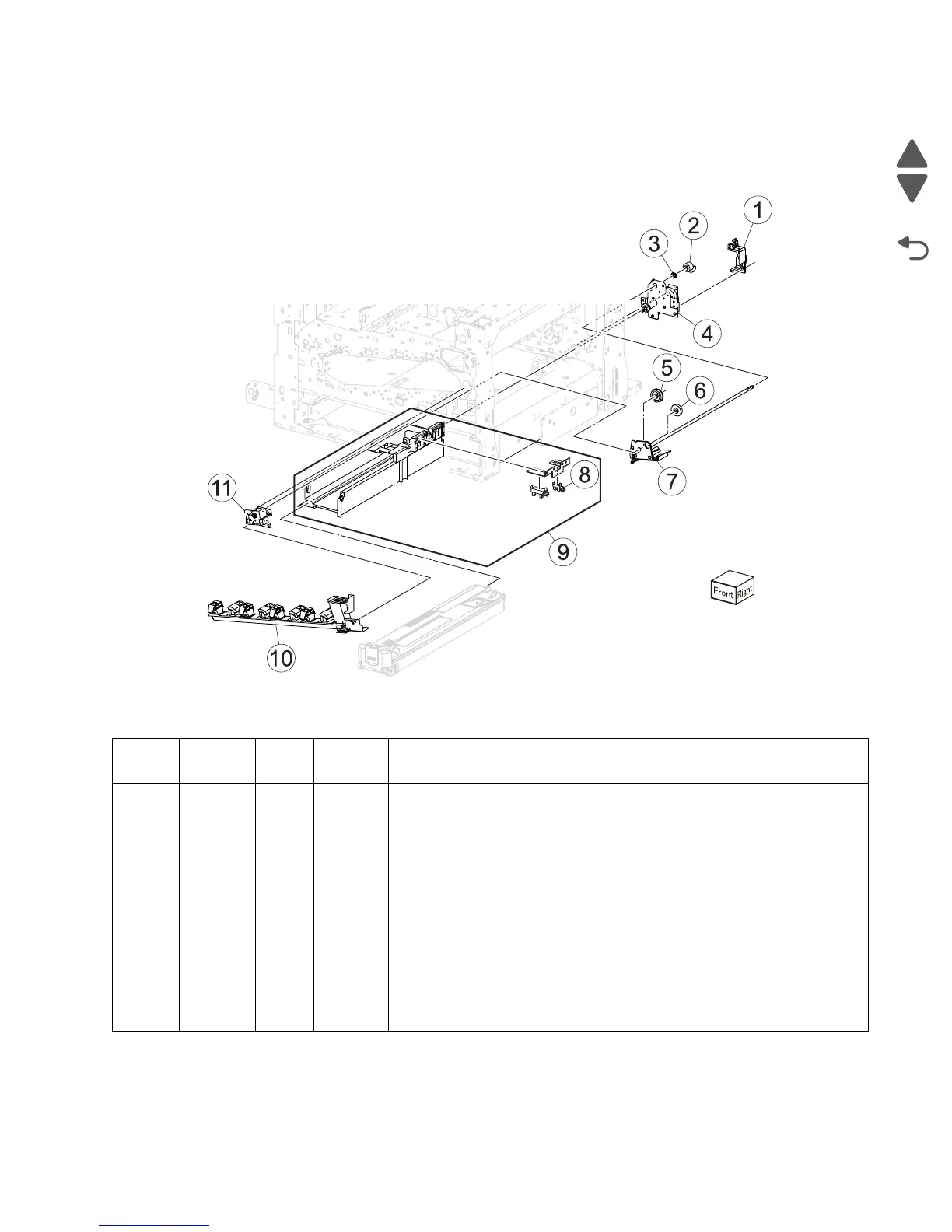

Assembly 18: Waste toner transfer

Asm-

index

Part

number

Units/

mach

Units/

FRU

Description

18-1 40X6649 11Motor cover

2 40X6648 11Actuator gear

3 40X0880 11Plastic bushing

4 40X6643 11Waste toner agitator motor

5 40X6646 11Waste toner gear 31T

6 40X6645 11Waste toner gear 29T

7 40X6647 11Waste toner shaft gate

8 40X3820 Waste toner bottle present sensor

9 40X6650 11Waste toner sensor guide

10 40X6642 11Waste toner auger chute

11 40X6644 11Waste toner gear bracket
