Repair information 4-389
5058-030
5
Warning: The following step must be performed, or the new machine settings will not match the
settings listed on the birth certificate if it is required for NVM value replacement.

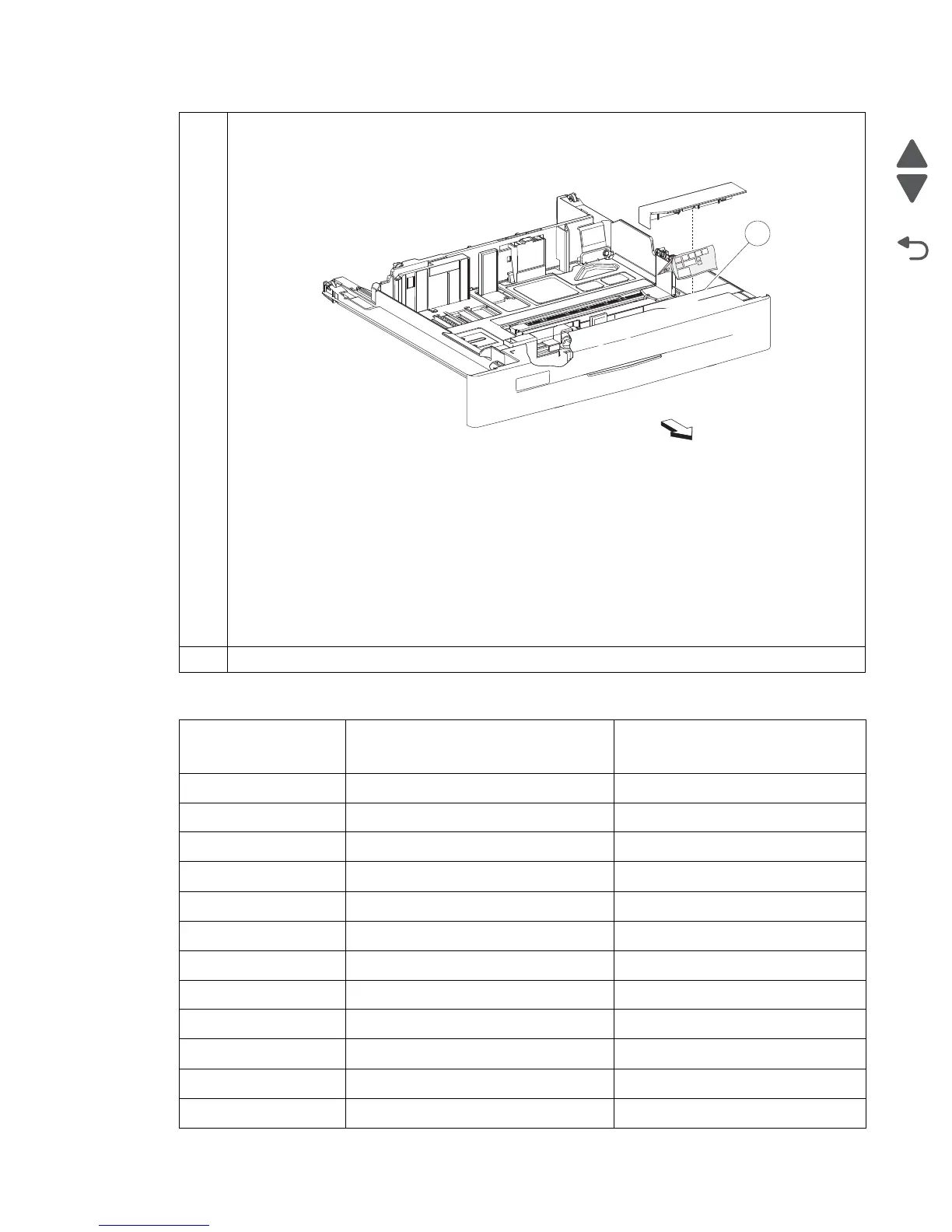

Retrieve the birth certificate from the compartment (1) in the media tray 1.
Using the the same Coefficient and Offset NVM values taken from step 2, overwrite the following
settings found on the birth certificate:
• ATC Setup Coefficient for Y
• ATC Setup Coefficient for M
• ATC Setup Coefficient for C
• ATC Setup Coefficient for K
• ATC Setup Offset for Y
• ATC Setup Offset for M
• ATC Setup Offset for C
• ATC Setup Offset for K
Return the birth certificate to the settings sheet compartment (1).
6
Exit diagnostics mode and perform a print test.
ATC value conversion chart
Barcode number
(last 2 digits)
ATC Setup Coefficient Value ATC Setup Offset Value
00 1638 -266
01 1462 -181
02 1321 -133
03 1204 -56
04 1107 -9
05 1024 31
06 952 66
07 890 96
08 835 123
09 787 146
10 1638 -276
11 1462 -190
