Lexmark C950 Service Manual

Repair information 4-307
5058-030
Go Back
Previous
Next

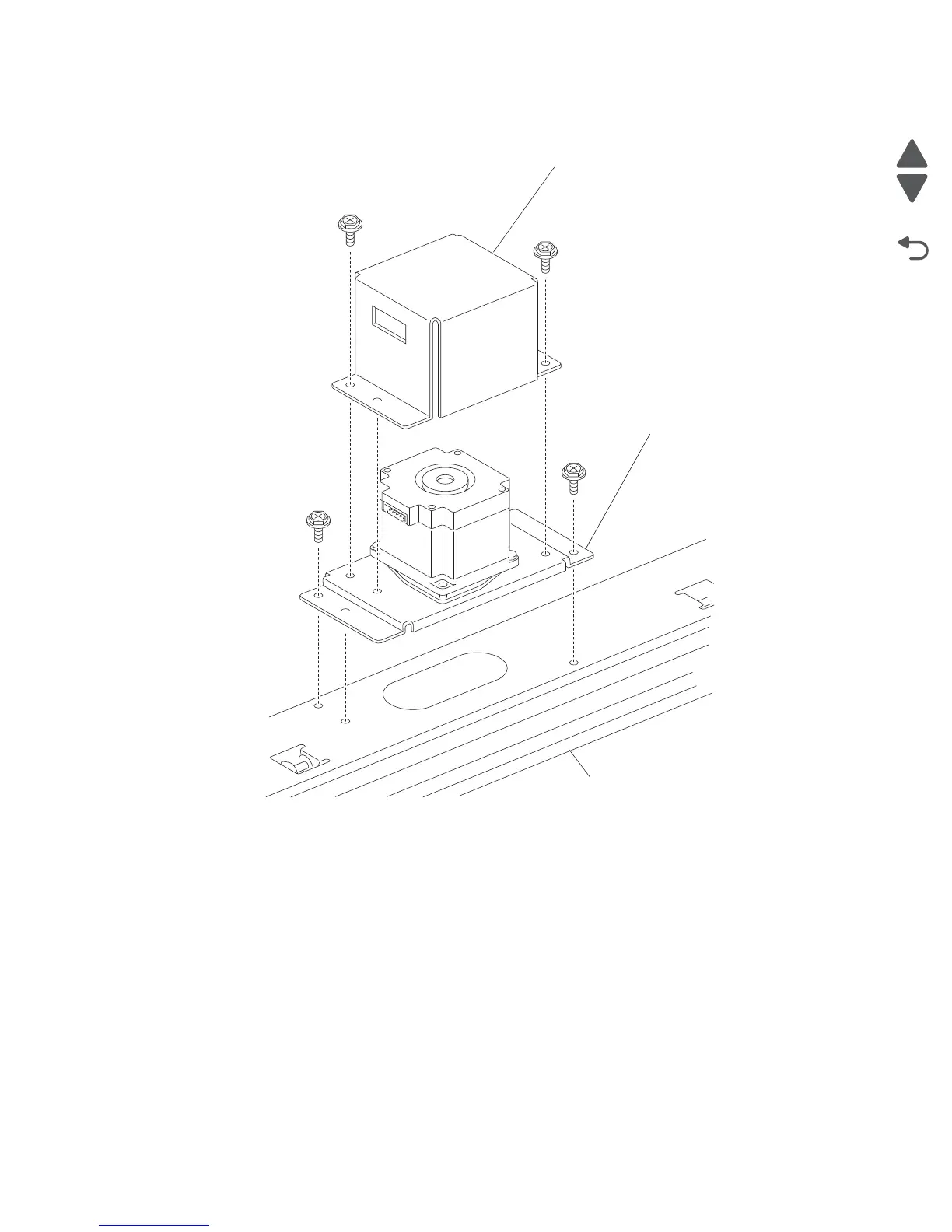

8. Remove the two screws securing the punch carriage shift motor assembly (C) to the punch unit
assembly
(B).
9. Remove the punch carriage shift motor assembly (C).
Punch unit motor assembly removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
4. Remove the connector from the sensor (punch carriage shift HP) (A).
5. Remove the top cover. See “Top cover removal” on page 4-351.
6. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-304.
7. Disconnect the connector from the punch unit motor assembly (A).
8. Disconnect the connector from the sensor (punch unit motor encoder) (B).
9. Remove the harness from the clamp.
A
C
B
