Lexmark C950 - LVPS PCBA Removal

4-106 Service Manual
5058-030
Go Back
Previous
Next

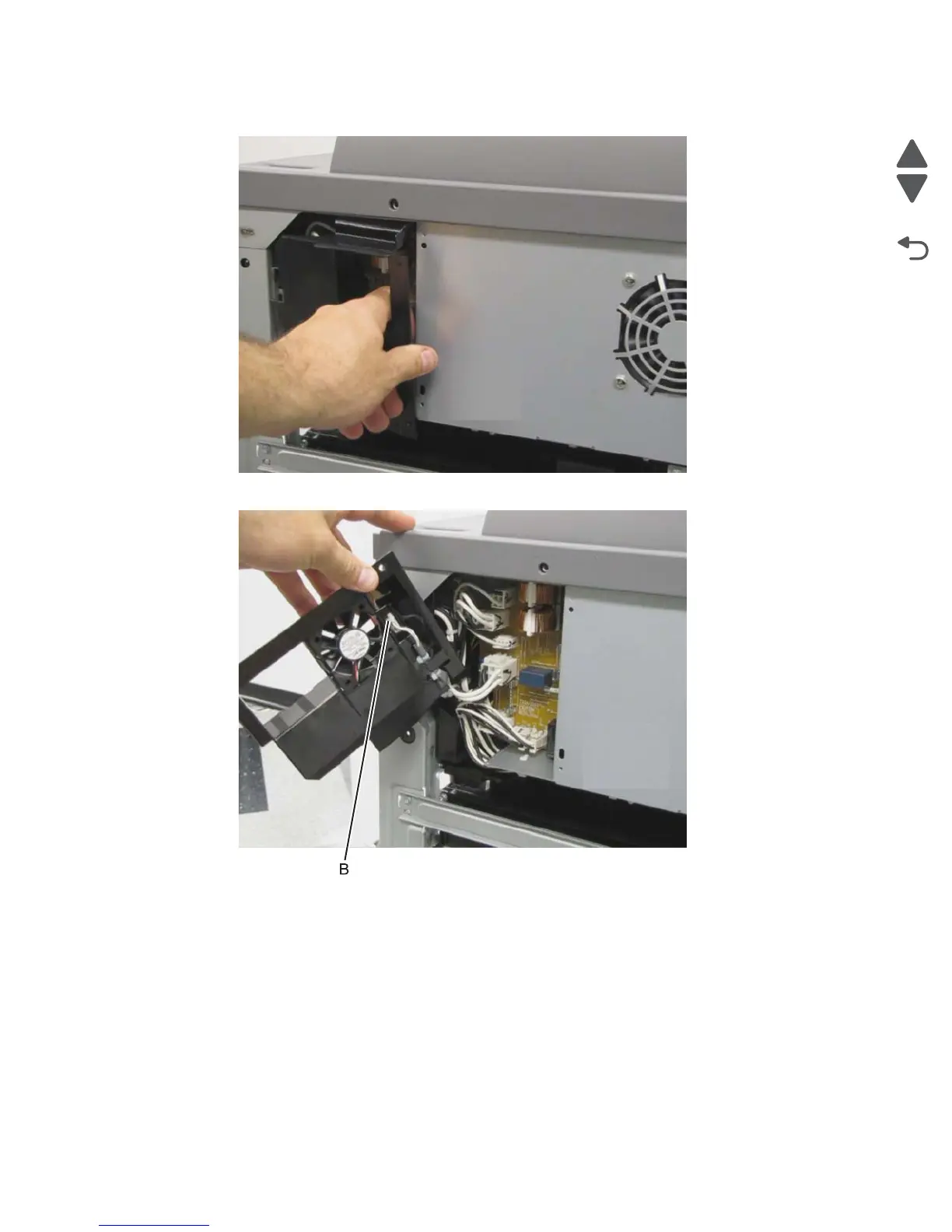

5. Pull out the LVPS front fan guide.
6. Disconnect the cable (B) from the LVPS front fan guide.
7. Detach the harness from the LVPS front fan guide.
8. Remove the LVPS front fan guide.
LVPS PCBA removal
Warning: Before removing the LVPS PCBA, using a permanent marker, place unique markings on connections
P91 and P92 to ensure that these two cables are properly reconnected, or damage will occur to the
machine.
1. Remove the printer right side cover. See “Printer right cover removal” on page 4-11.
2. Remove the LVPS subfan guide. See “LVPS front fan guide removal” on page 4-105.
3. Remove the waste toner sensor guide. See “Waste toner sensor guide removal” on page 4-190.
