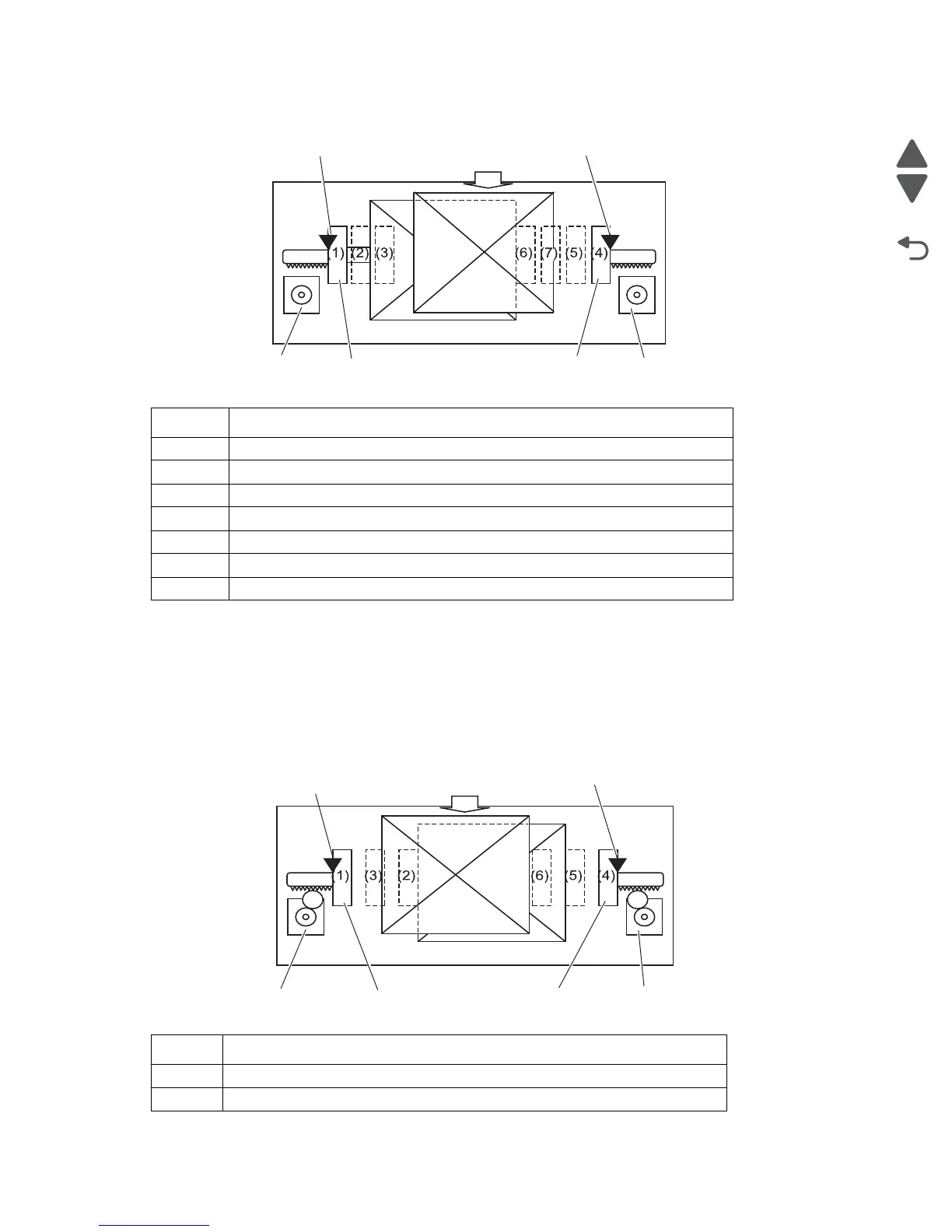

The tamper positions during front tamping are shown below.
Rear tamping
Rear tamping is used in the following cases.
• When executing rear stapling (corner)
• When executing dual stapling
The tamper positions during rear tamping are shown below.
Position Description
1 Front tamper home position—sensor (front tamper HP)
2 Front tamper size position
3 Front tamper offset position
4 Rear tamper home position—sensor (rear tamper HP)
5 Rear tamper standby position
6 Rear tamper tamping position
7 Rear tamper offset position
Position Description
1 Front tamper home position—sensor (front tamper HP)
2 Front tamper tamping position
Sensor (front tamper HP)
Front
Sensor (rear tamper HP)
Rear
Rear tamper motor
Rear tamper
Front tamper
Front tamper motor
Sensor (front tamper HP)
Front
Sensor (rear tamper HP)
Rear
Front tamper motor Front tamper
Rear tamper motor
Rear tamper
