TTM tray 4 media turn guide removal

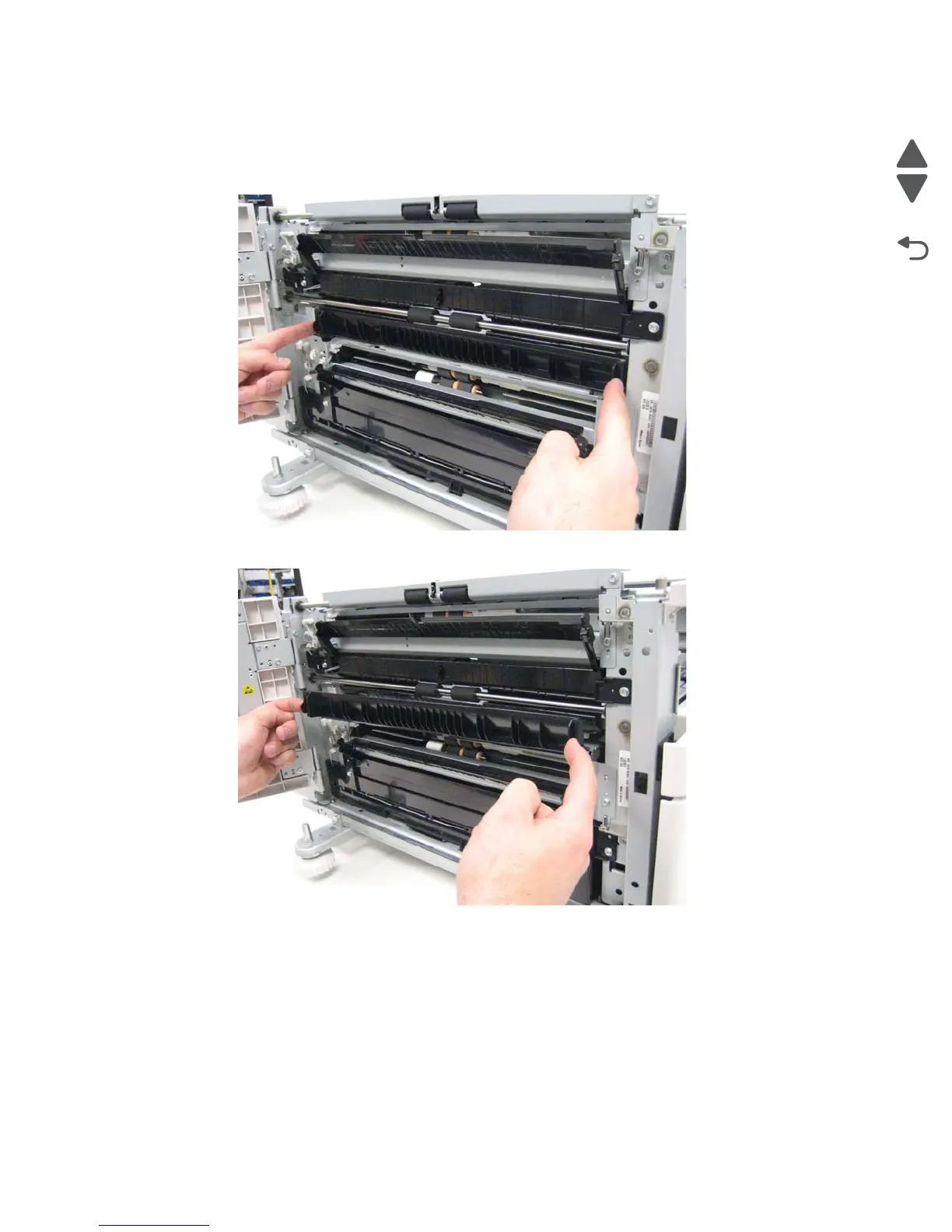

1. Open the left door.
2. Gently press the lower edges of the tray module 4 media turn guide.
3. Remove the tray module 4 media turn guide from the machine.
TTM upper transport motor removal
1. Remove the tray module rear cover. See “Tray module rear cover removal” on page 4-211.
2. Disconnect the cable (A).
3. Release the harness from the clamp (B).
